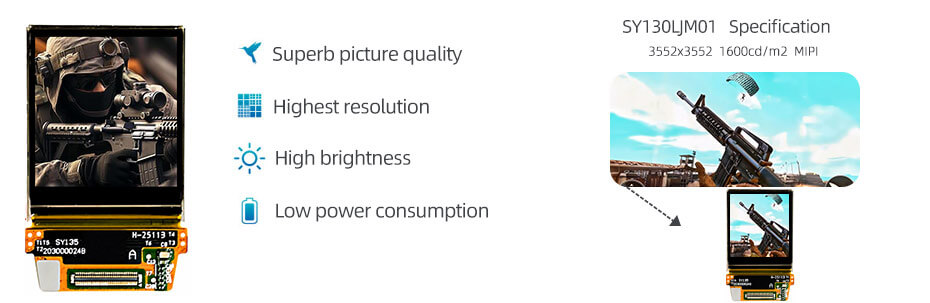

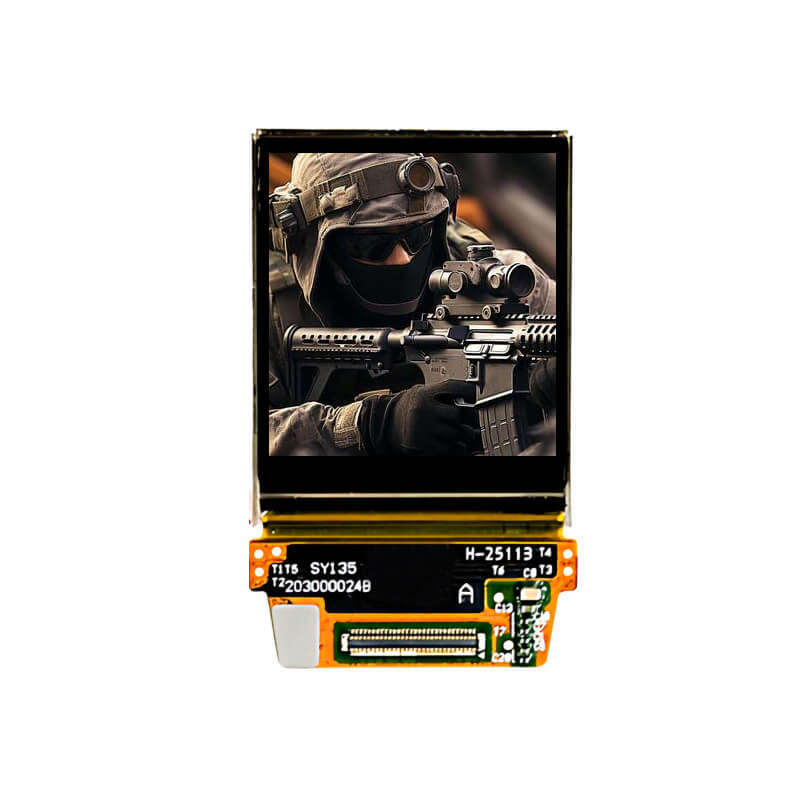

SY130LJM01 1.3 Inch Micro OLED Display 3552×3552 MIPI 1600nits High Brightness OLED Display For EVF AR Red Dot Sight Display Solutions Overview

SY130LJM01 is a 1.3 inch diagonal Si-OLED (Micro OLED) display screen product with self-emissive technology. SY130LJM01 supports a 3552×3552 ultra-high-resolution display with a square aspect ratio of 1:1 (W:H), delivering exceptional image clarity and high pixel density for advanced optical display applications. It adopts a MIPI interface and features an active area of 23.24(W)×23.24(H) mm, with an outline size of 26.64(W)×33.00(H)×1.82(D) mm. SY130LJM01 provides 1600 cd/m² high brightness performance, offering excellent visibility and detailed image reproduction for near-eye display systems. With a wide operating temperature range of -20~70°C and storage temperature range of -40~80°C, SY130LJM01 is an ideal Micro OLED display solution for EVF (Electronic Viewfinder), AR devices, red dot sight systems, and other precision optical imaging applications.

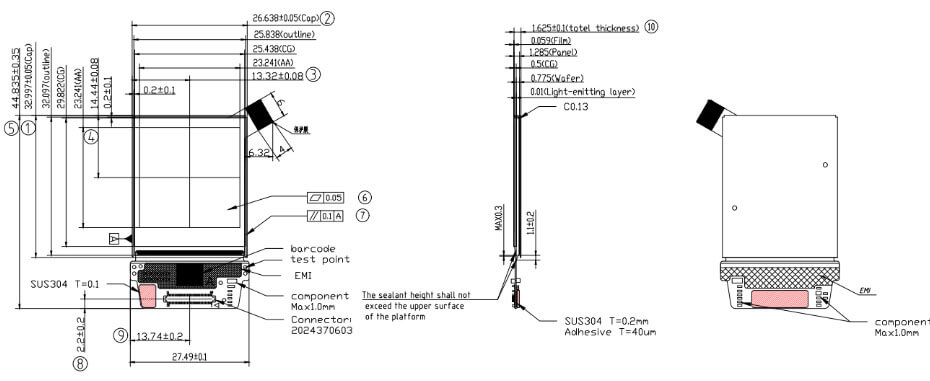

SY130LJM01 1.3 Inch Micro OLED Display 3552×3552 MIPI 1600nits High Brightness OLED Display For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
