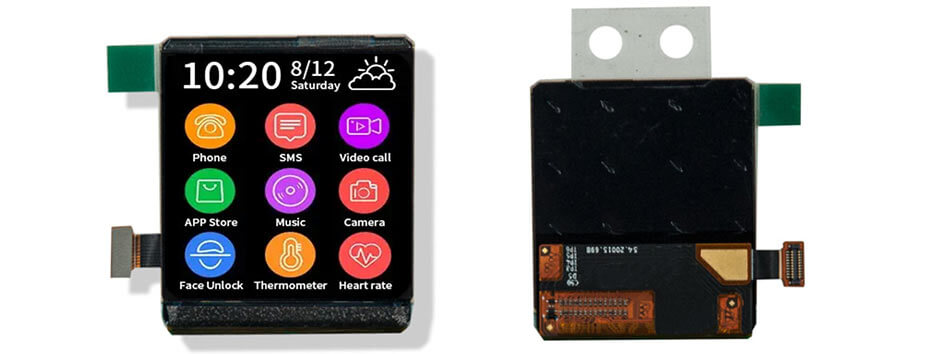

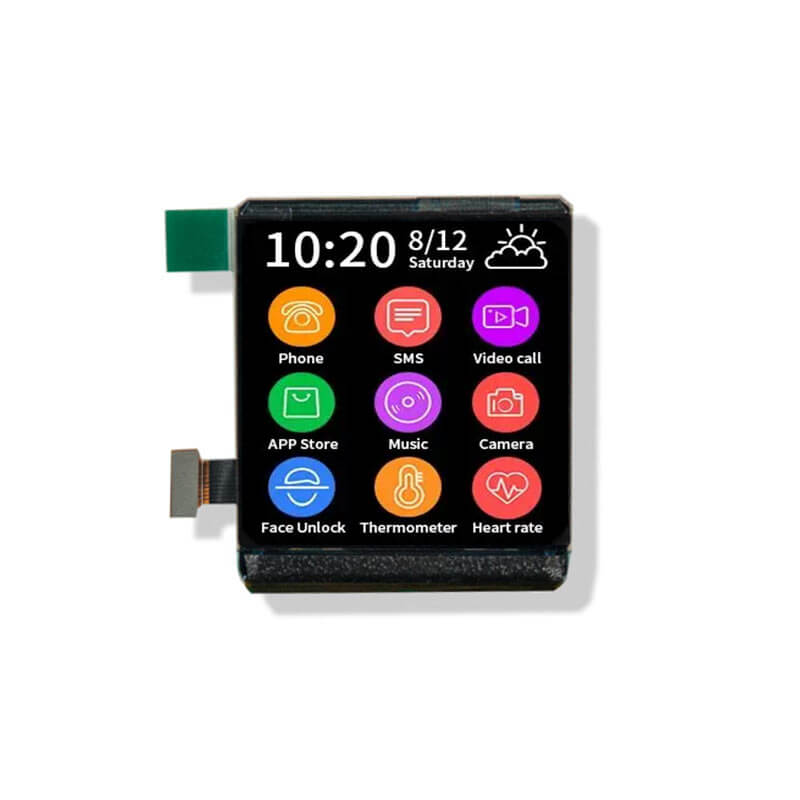

1.63 Inch Square Display Overview
ET016SQ01-TV is a 1.63-inch diagonal square micro OLED display designed for wearable applications, featuring a 320×320 resolution and a MIPI interface. As a self-emitting AM-OLED display, it provides an active area of 29.28(W)×29.28(H) mm and an outline size of 32.08(W)×36.48(H) mm. ET016SQ01-TV delivers a typical brightness of 300 cd/m² and offers viewing angles of 80° in all directions (L/R/U/D). It is designed for reliable operation over a temperature range of –20 °C to 60 °C and storage from –30 °C to 70 °C. This model does not include touch functionality.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
