0.48"-5" LCD Display (1.6")

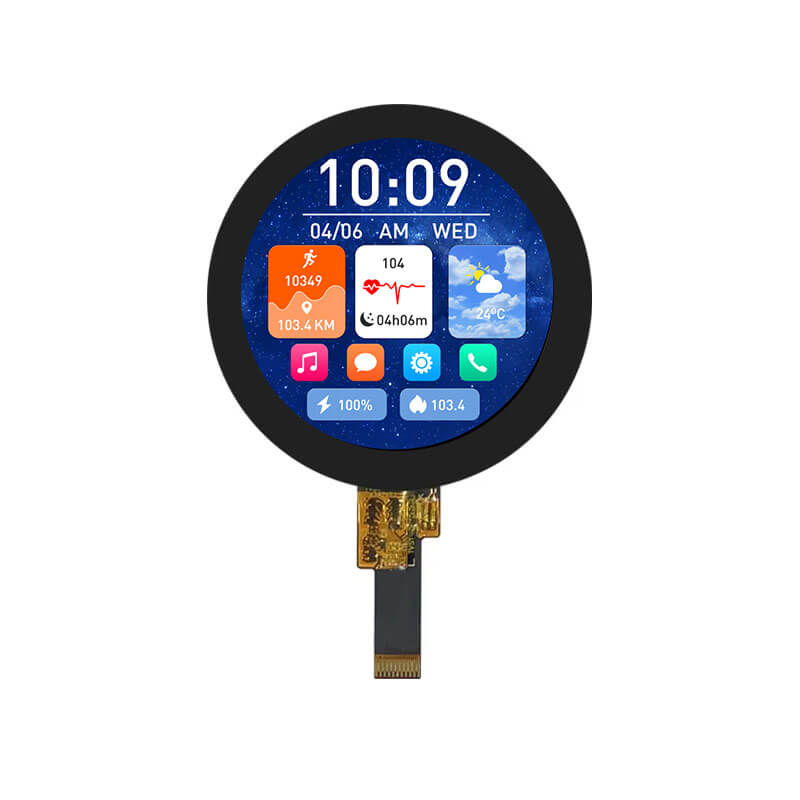

1.6 Inch Circular Display 400x400 MIPI/CPU/RGB/SPI IPS Round LCD Display For Wearable

Part No.:ET016CR03-TT
Size:1.6″ inch
Resolution:400x400
Panel Interface:MIPI/CPU/RGB/SPI
Display mode:Transmissive
Outline Dimension:53.3x53.3mm
Active Area:39.84x39.84mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:350(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

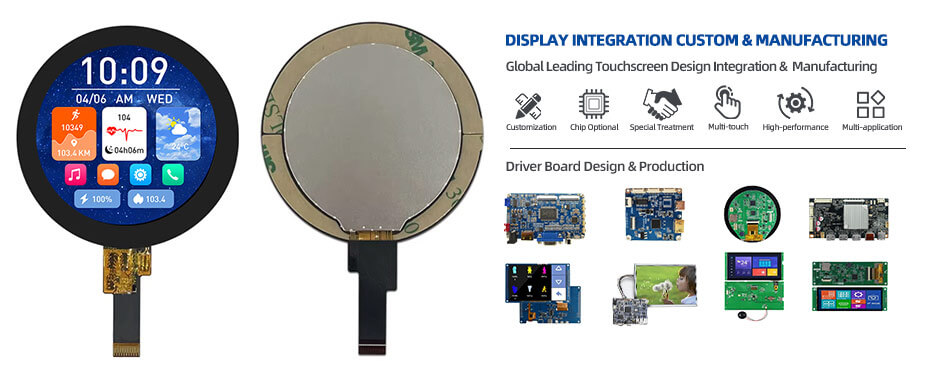

1.6 Inch Circular Display Overview
1.6 Inch Circular Display 400x400 MIPI/CPU/RGB/SPI IPS Round LCD Display For Wearable.

Circular Display Application

Production and Manufacturing
