1.3 Inch High Brightness Display 700nits Sunlight Readable 466x466 MIPI OLED Display With On-Cell Touch

Part No.:ET013XR01-HT
Size:1.3″ inch
Resolution:466x466
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:36.35x36.35mm
Active Area:33.55x33.55mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

1.3 Inch High Brightness LCD Display Overview

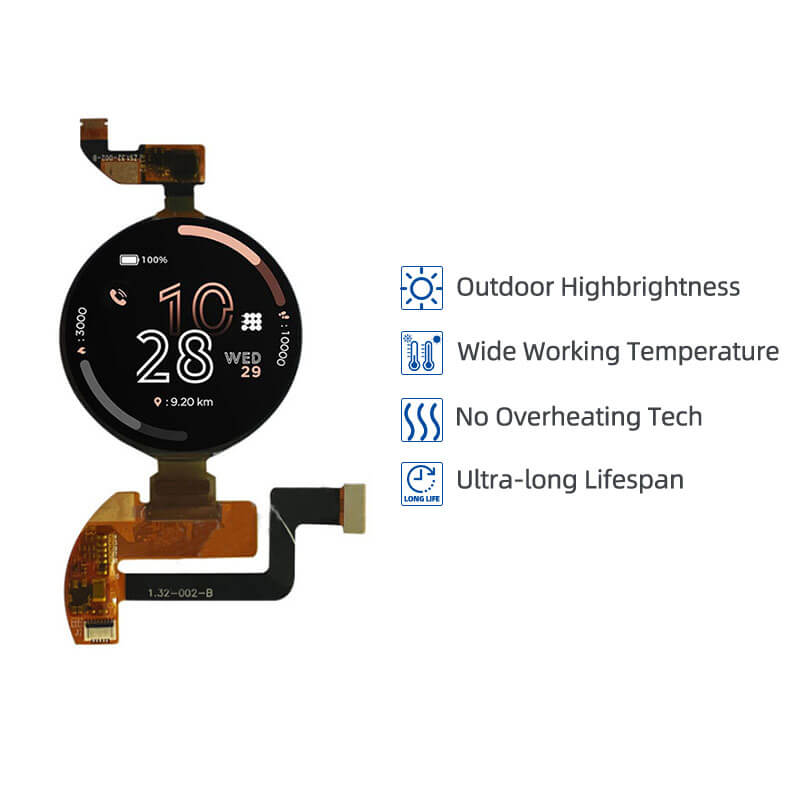

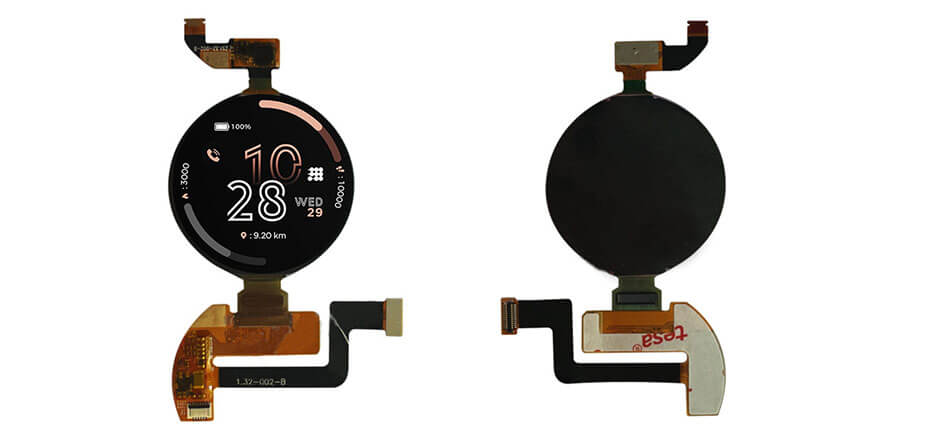

ET013XR01-HT is a 1.3-inch diagonal high-brightness AM-OLED display, featuring a resolution of 466×466 with a MIPI interface. This self-emitting display has an active area of 33.55(W)×33.55(H) mm, with an outline size of 36.35×36.35 mm. ET013XR01-HT provides a typical brightness of 700 cd/m², supports on-cell touch functionality, and operates within –20 °C to 70 °C (storage –30 °C to 80 °C). The best viewing direction is all around (85°/85°/85°/85°).
