0.95 Inch High Brightness LCD Display Overview

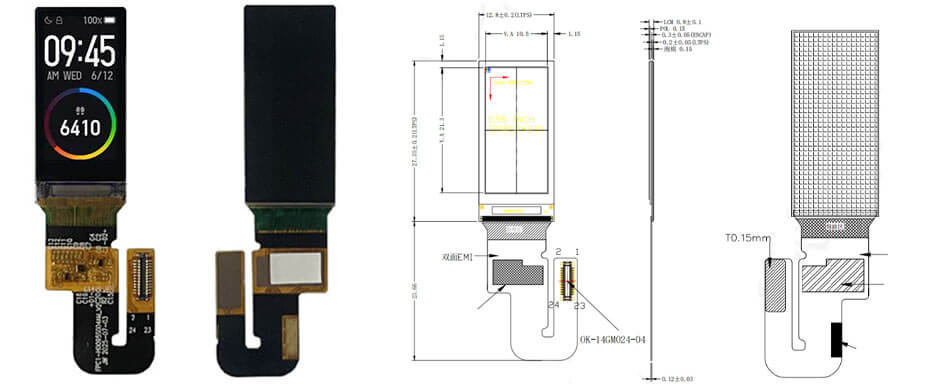

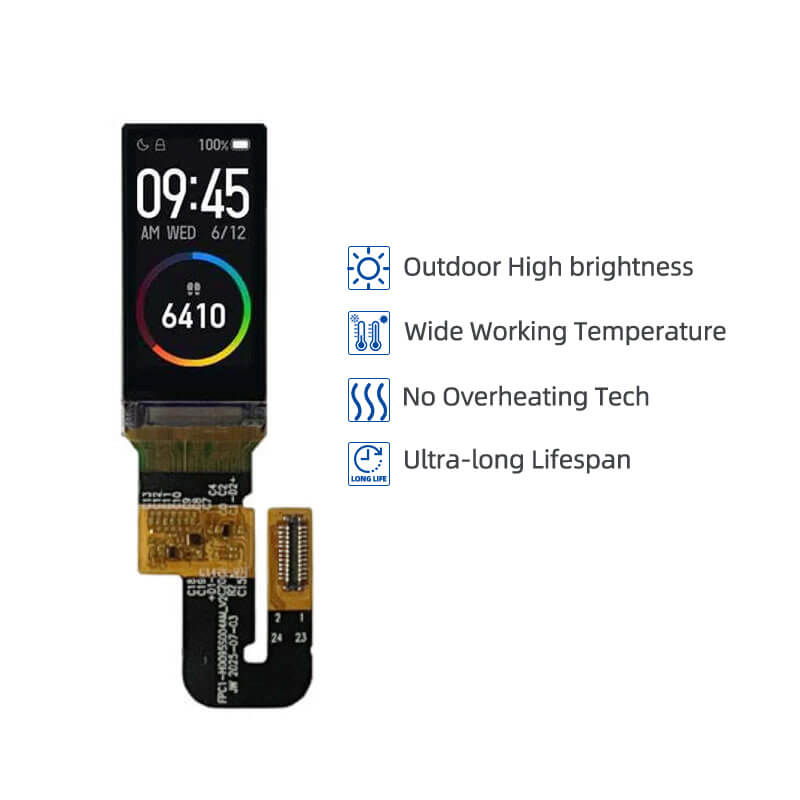

ET095AM01-HT is a 0.95-inch diagonal high-brightness AM-OLED display, featuring a resolution of 120×240 with an SPI interface. This self-emitting display has an active area of 10.8(W)×21.6(H) mm, with an outline size of 12.8(W)×27.35(H) mm. ET095AM01-HT provides a typical brightness of 1000 cd/m² and operates within –20 °C to 70 °C (storage –30 °C to 80 °C). Touch functionality is not included.
More 0.95 Inch High Brightness LCD Display For Reference

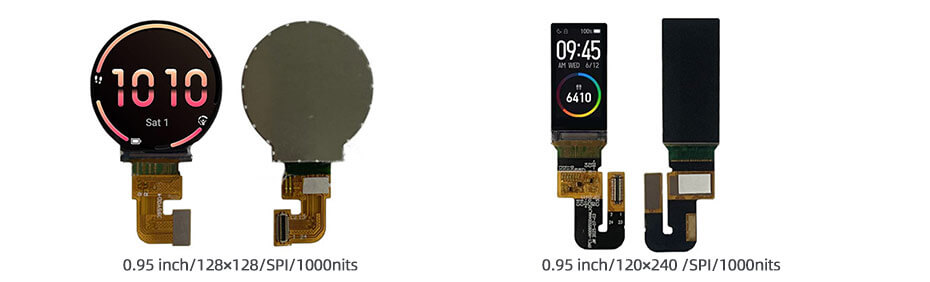

ET095QF01-H (LCD, 128x128, SPI, 1000nits, -20~70°C, 25.24x27.14mm)
ET095AM01-HT (AMOLED, 120x240, SPI, 1000nits, -20~70°C, 12.8x27.35mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
