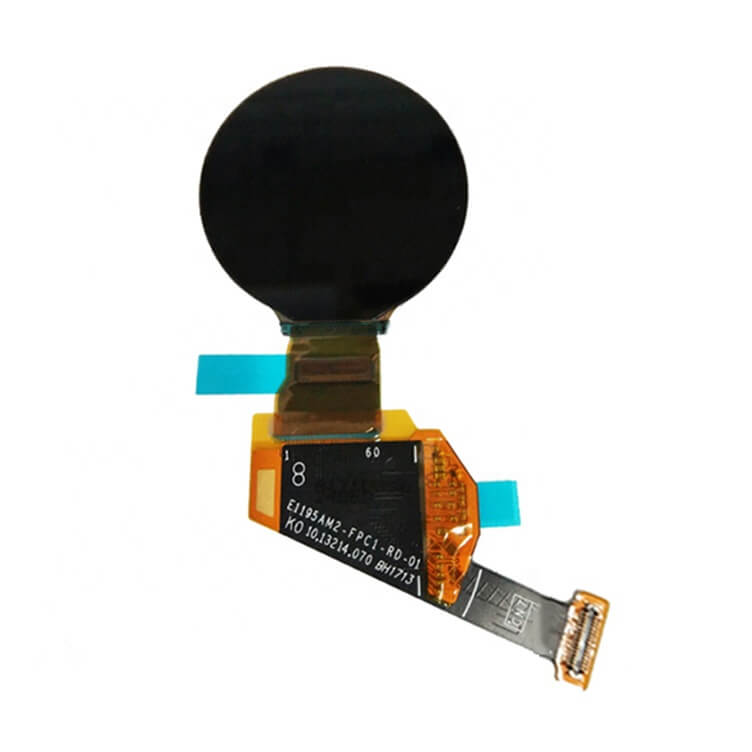

1.2" inch 390*390 round RGB OLED display with MIPI SPI interface for washing machine

Part No.:ET1195AM2
Size:1.2″ inch
Resolution:390x390
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:33.22x34.72x0.75
Active Area:30.42x30.42
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:350cd/m²
Operation / Storage Temp:-30~70°C / -20~60°C
Touch:no

ET1195AM2

Item	Specification	unit
Dimension outline	33.22 x 34.72 x 0.68	mm
LTPS Glass outline	33.22 x 34.72	mm
Encapsulation Glass outline	Φ33.22	mm
Number of dots	390(W) x RGB x 390(H)	dots
Active area	φ30.42	mm
Diagonal size	1.19	inch
Pixel pitch	78*78	μm
Glass thickness (LTPS/encapsulation glass)	0.2 / 0.2	mm
Weight	TBD	g
