0.97 Inch 4-Color E Ink Display Module 84×88 SPI Black White Red Yellow Electronic Paper Display

0.97 Inch 4-Color E Ink Display Module 84×88 SPI Black White Red Yellow Electronic Paper Display Overview

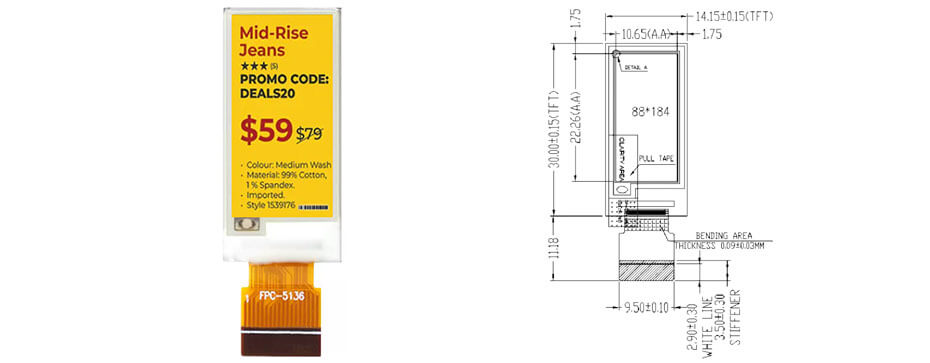

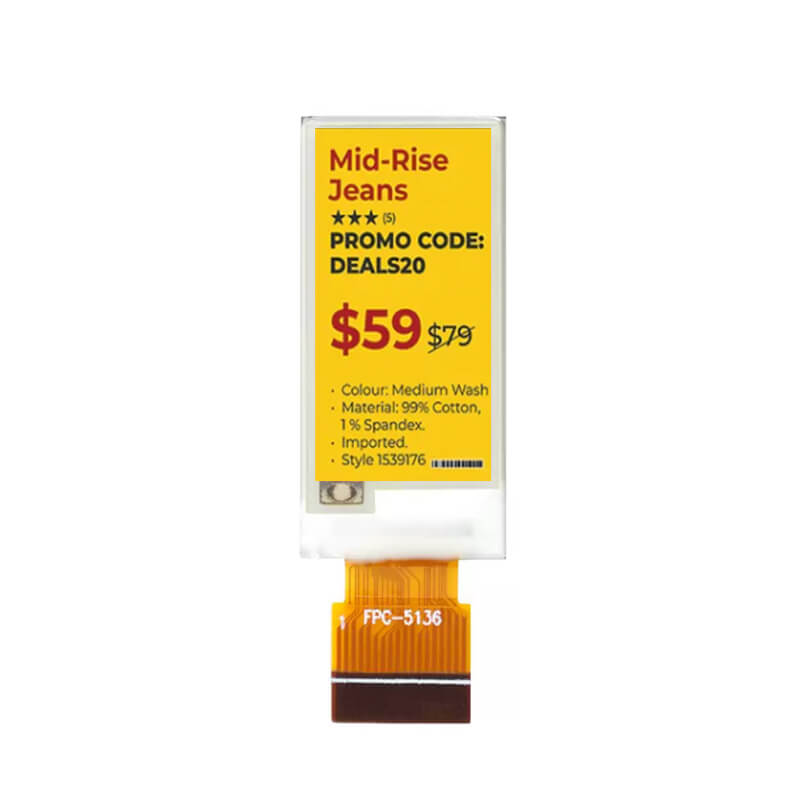

ET0097EP02-J is a 0.97 inch diagonal 4-color E-Ink E-Paper (EPD) display module featuring advanced electronic ink technology with black, white, red, and yellow color support for compact and energy-efficient display applications. ET0097EP02-J supports an 84×88 resolution with a miniaturized form factor, delivering clear text, icons, symbols, and multi-color graphics for applications such as smart labels, wearable devices, electronic tags, IoT products, and portable instruments. The module adopts an SPI interface for easy system integration and efficient data communication. It features an active area of 22.26(W) × 10.65(H) mm, an outline dimension of 30.0(W) × 14.15(H) × 1.0(D) mm, and operates reliably within a 0°C to 40°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET0097EP02-J provides a paper-like viewing experience with high contrast, wide viewing angle performance, and bistable display characteristics, making it an ideal ultra-compact display solution for battery-powered electronic paper applications requiring vivid four-color content, long service life, and minimal power consumption.

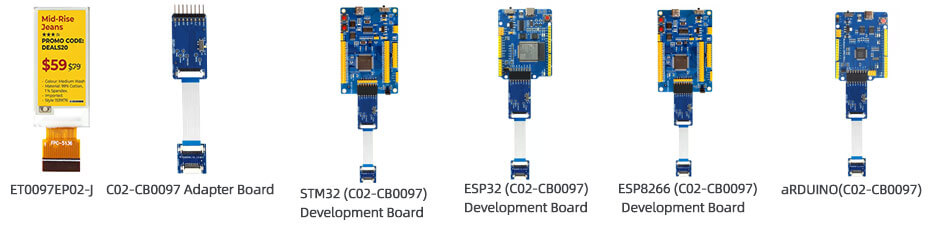

0.97 Inch E Ink Display Solution For Reference
ET0097EP02-J
C02-CB0097 Adapter Board
STM32 (C02-CB0097) Development Board
ESP32 (C02-CB0097) Development Board
ESP8266 (C02-CB0097) Development Board
aRDUINO(C02-CB0097)

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
