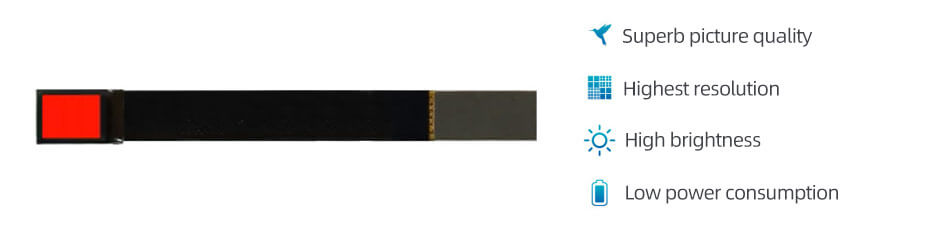

0.23 Inch Micro OLED Display 640×400 MIPI High Brightness 10000nits OLED Display With HDMI Board For EVF AR Red Dot Sight Display Solutions Overview

ET023VGH02 is a 0.23-inch Si-OLED display module with a 640×480 resolution and MIPI interface, designed for compact optical applications such as EVF, AR devices, and red dot sight systems. It features a self-emitting OLED structure and supports ultra-high brightness up to 10000 cd/m² for excellent visibility in bright environments. The module includes an HDMI driver board for easy system integration. The active area measures 5.06 × 3.29 mm, enabling ultra-compact designs. It operates in a temperature range of -40℃ to 65℃ and does not support touch functionality. With its high brightness, small size, and stable performance, it is well-suited for precision near-eye display solutions.

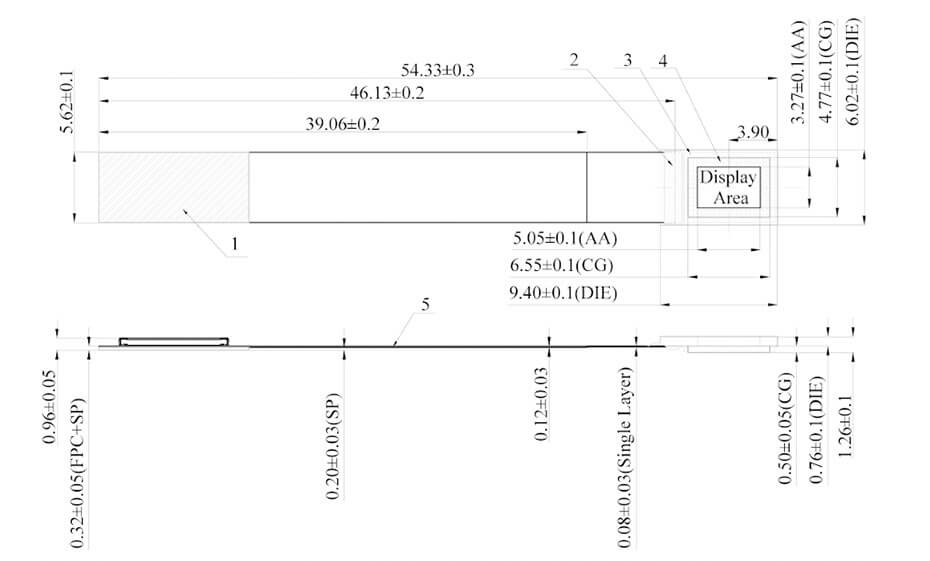

0.23 Inch Micro OLED Display 640×400 MIPI High Brightness 10000nits OLED Display With HDMI Board For EVF AR Red Dot Sight Display Solutions Drawing

0.23 Inch Micro OLED Display Solution For Reference
ET023VGH02-G+5B0023H02-1 single red+HDMI+Cable
ET023VGH02 single red color 10000nits

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
