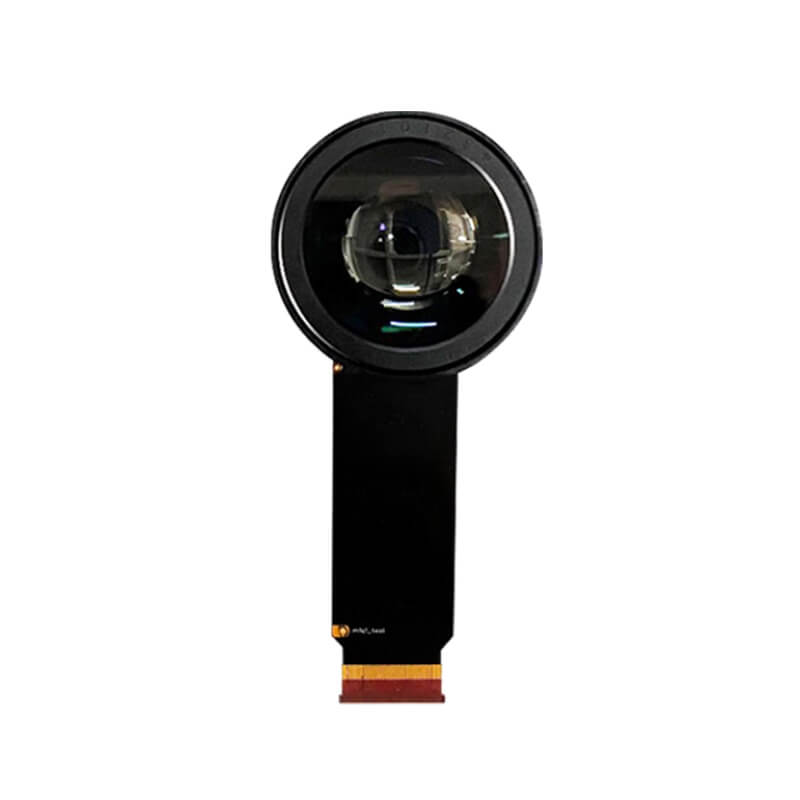

SY103WAG01 1.03 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

SY103WAG01 is a 1.03 inch diagonal Si-OLED (Micro OLED) display screen product with self-emissive technology. SY103WAG01 supports a 2560×2560 resolution display with a square aspect ratio of 1:1 (W:H), featuring a high pixel density for compact optical applications. It adopts a MIPI interface and is designed for applications such as EVF (Electronic Viewfinder), AR devices, and red dot sight display solutions. It features an active area of 18.432(W)×18.432(H) mm and provides 1800 cd/m² high brightness performance. SY103WAG01 delivers excellent image clarity, fast response, and high contrast characteristics, making it suitable for demanding near-eye display and optical imaging applications.

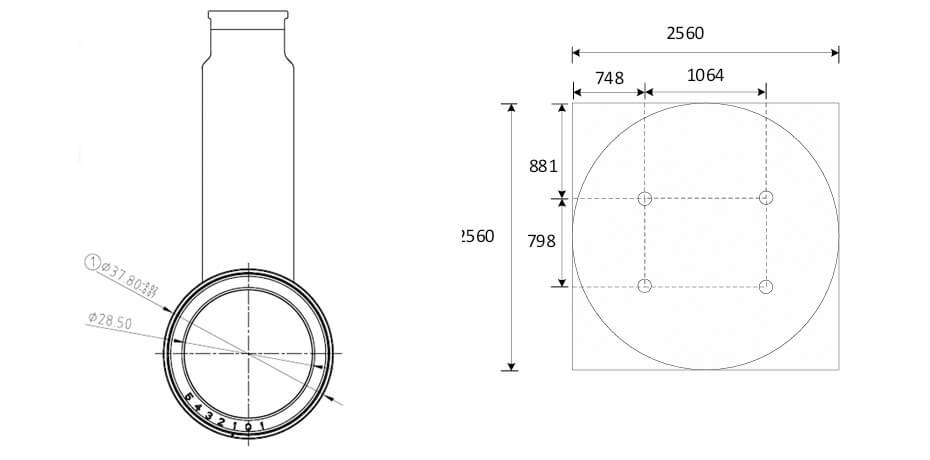

SY103WAG01 1.03 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

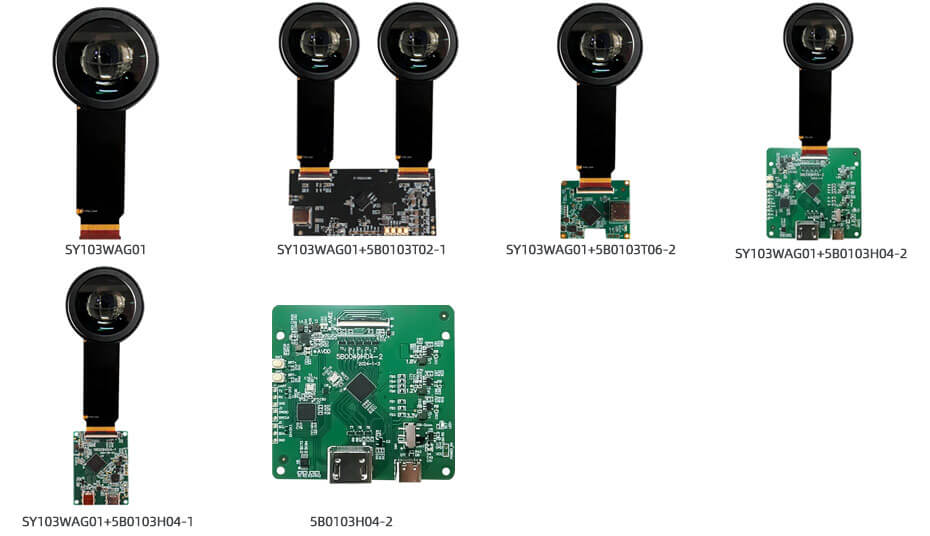

SY103WAG01 1.03 Inch Micro OLED Display Solution For Reference
SY103WAG01
SY103WAG01+5B0103T02-1
SY103WAG01+5B0103T06-2
SY103WAG01+5B0103H04-2
SY103WAG01+5B0103H04-1
5B0103H04-2

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
