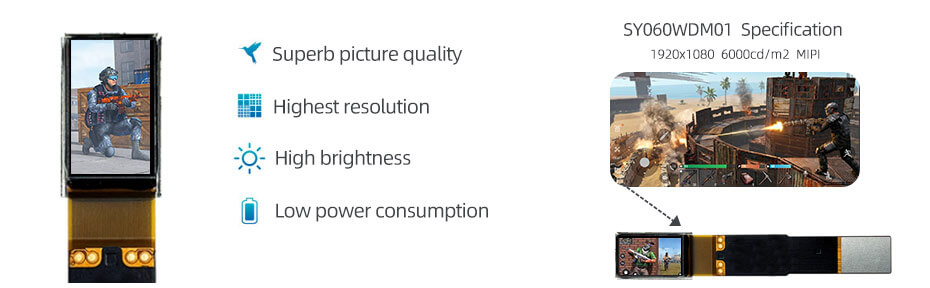

SY060WDM01 0.6 Inch Micro OLED Display 1920×1080 MIPI 3000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

SY060WDM01 is a 0.60" diagonal Si-OLED display panel, it self emiting, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -40 ~ 80°C . It's general features are summarized in the following: DCI-P3, Adobe RGB, sRGB, 120Hz, Ultra High Brightness, U/D,L/R Reverse , Multi-Resolution (4*M, M=80~480) x RGB x (4*N, N=60~270). Based on its features, Panelook recommend that this model be applied to HMD VR AR etc.

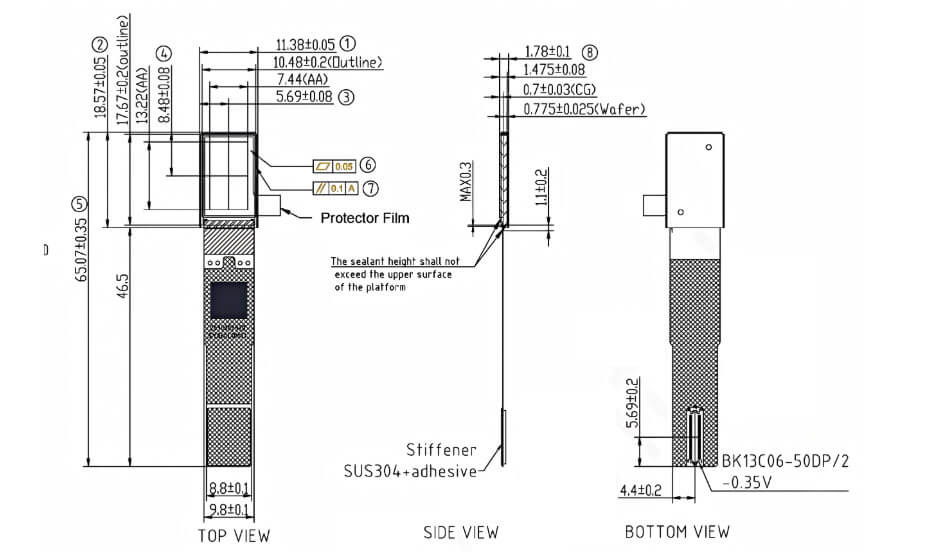

SY060WDM01 0.6 Inch Micro OLED Display 1920×1080 MIPI 3000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

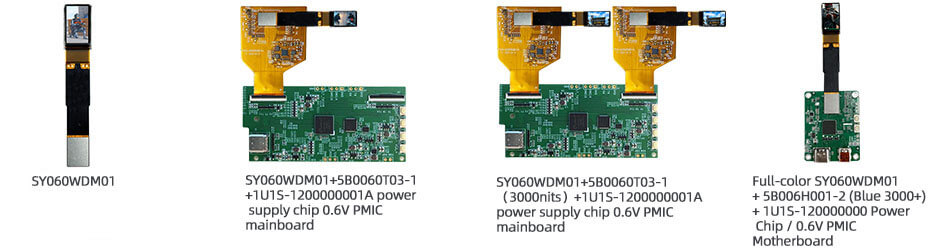

SY060WDM01 0.6 Inch Micro OLED Display Solution For Reference

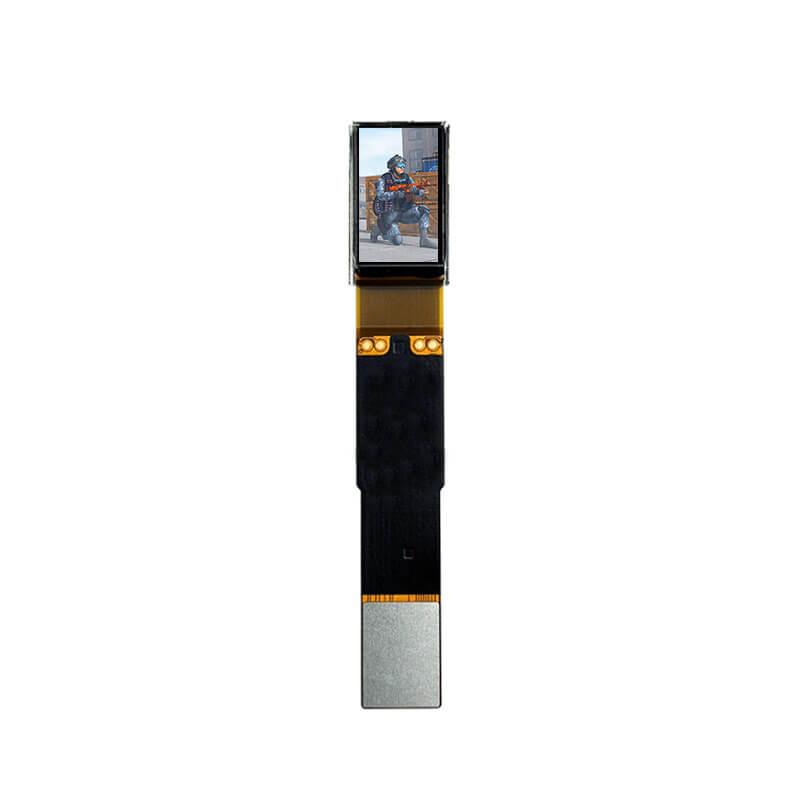

SY060WDM01
SY060WDM01+5B0060T03-1 +1U1S-1200000001A power supply chip 0.6V PMIC mainboard
SY060WDM01+5B0060T03-1(3000nits)+1U1S-1200000001A power supply chip 0.6V PMIC mainboard
SY060WDM01+5B006H001-2 (3000nits)++1U1S-120000000 power supply chip 0.6V PMIC mainboard

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
