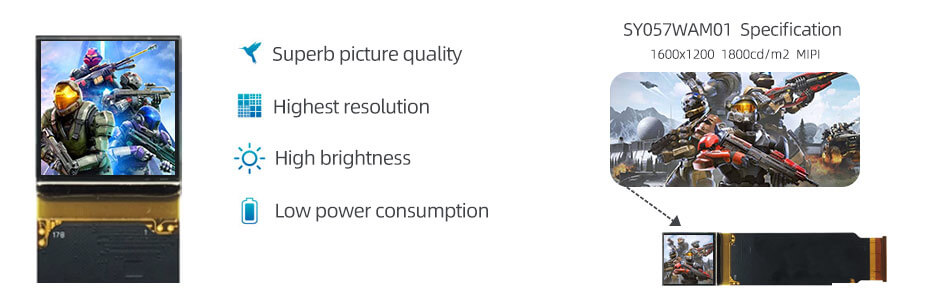

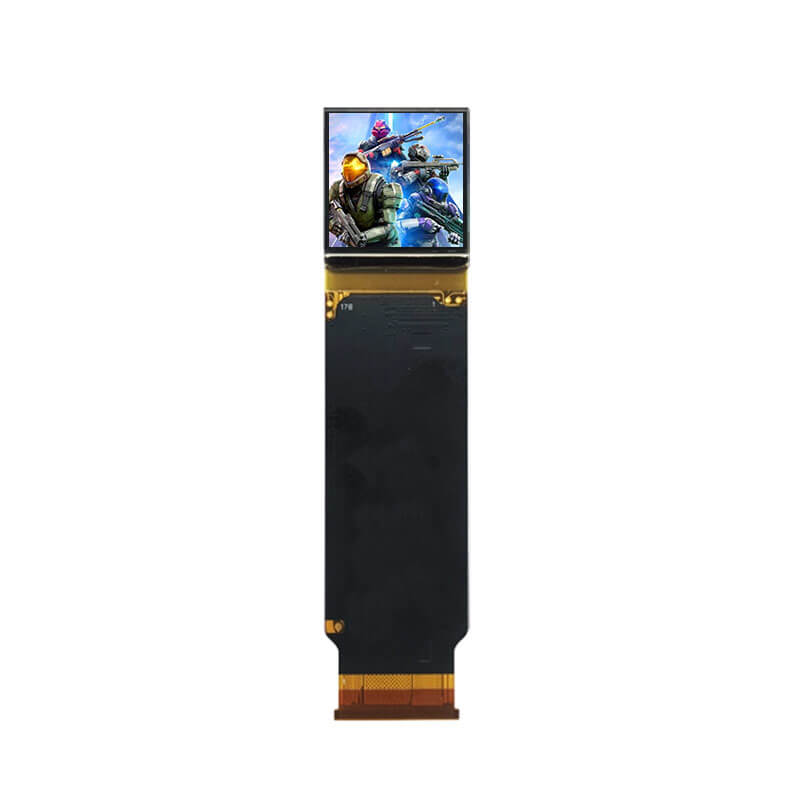

SY057WAM01 0.57 Inch Micro OLED Display 1600×1200 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

SY057WAM01 is a 0.57 inch diagonal Si-OLED display screen product from SeeYA, it self emiting, without touch screen. SY057WAM01 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 11.52(W)×8.64(H) mm, outline size of 21.087(W)×22.765(H) mm. SY057WAM01 can provides 1800 cd/m² display brightness 50000:1 transimissive contrast ratio .. This product emiting itself . SY057WAM01 utilizes MIPI as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 90Hz.

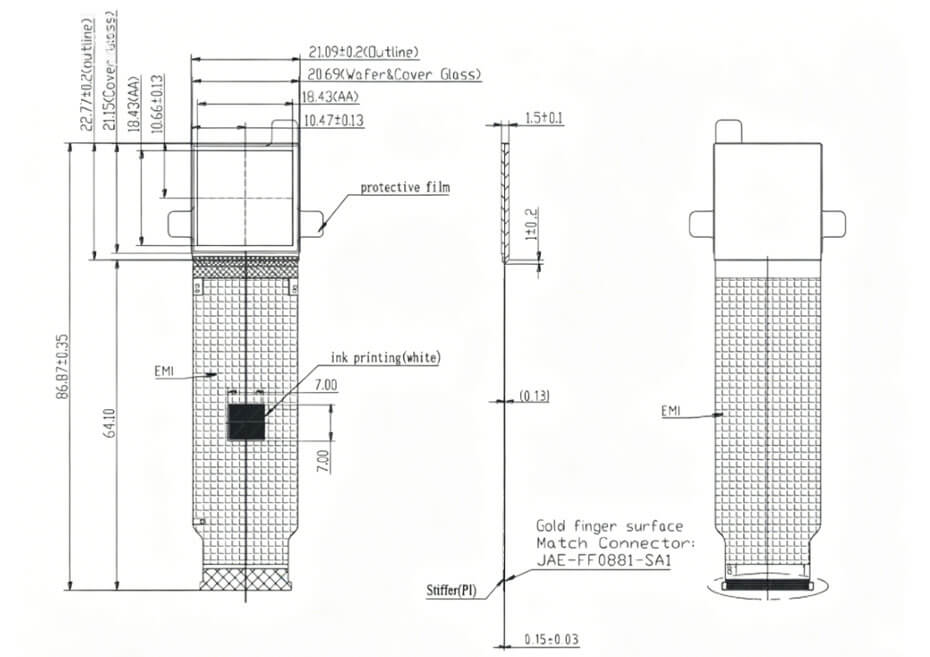

SY057WAM01 0.57 Inch Micro OLED Display 1600×1200 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

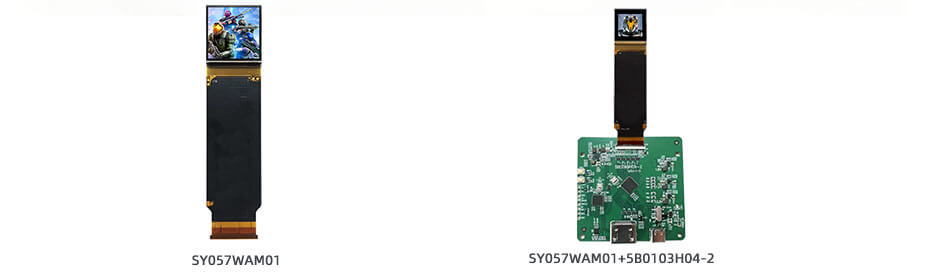

SY057WAM01 0.57 Inch Micro OLED Display Solution For Reference
SY057WAM01
SY057WAM01+5B0103H04-2

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
