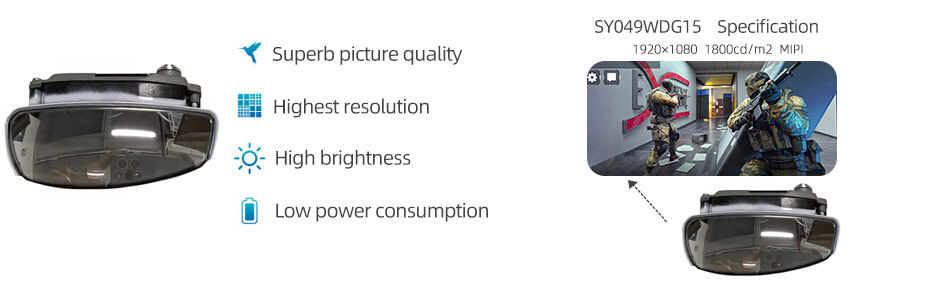

SY049WDG15 is a 0.49-inch diagonal Si-OLED display screen product featuring self-emissive technology for high contrast and vivid image performance. SY049WDG15 supports 1920 × 1080 (FHD) resolution with an aspect ratio of 16:9 (W), delivering sharp image quality and high-definition visual performance for compact near-eye display applications. It features an active area of 10(W) × 6(H) mm and adopts an HDMI interface with an integrated driver board for convenient signal transmission and system integration. SY049WDG15 can provide 1800 cd/m² high brightness, ensuring clear and stable image visibility in various lighting environments. Designed for reliable operation, it supports an operating temperature range of -20°C to 70°C and a storage temperature range of -40°C to 80°C. This micro OLED display module is widely suitable for EVF, AR smart glasses, red dot sights, thermal imaging devices, and other near-eye display solutions.

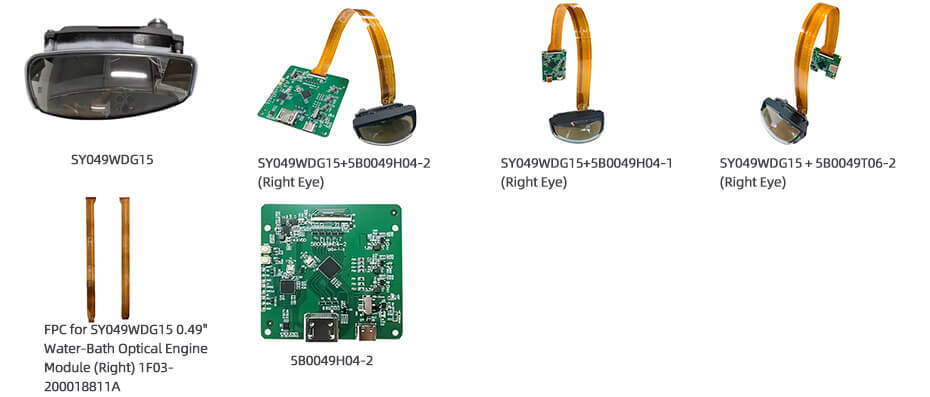

SY049WDG15 0.49 Inch Micro OLED Display Solution For Reference
SY049WDG15
SY049WDG15+5B0049H04-2 (Right Eye)

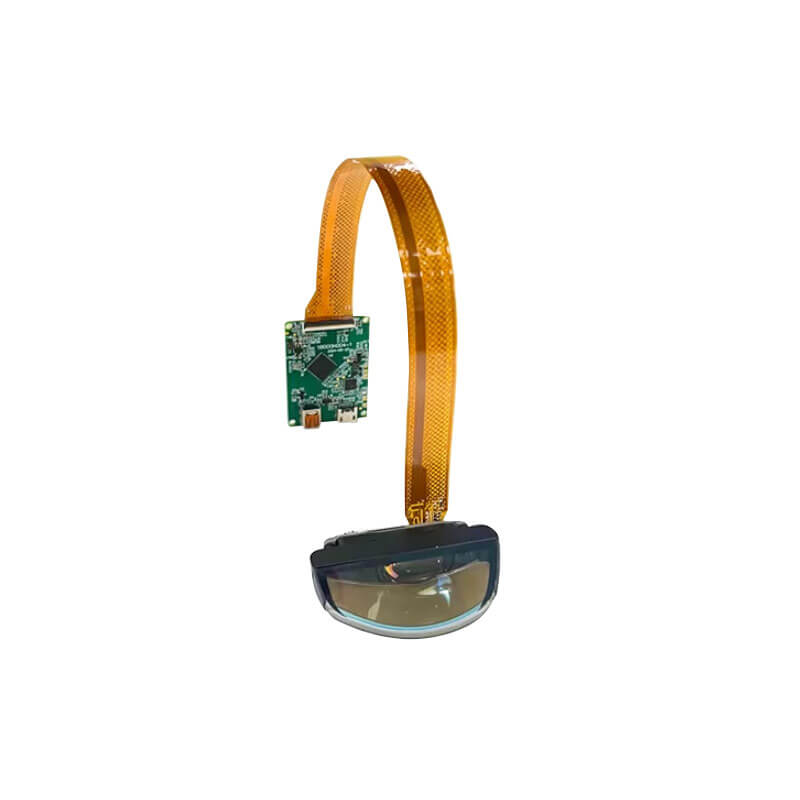

SY049WDG15+5B0049H04-1(Right Eye)
SY049WDG15＋5B0049T06-2(Right Eye)
FPC for SY049WDG15 0.49" Basin-type Optical Engine Module ((Right ) 1F03-200018811A
5B0049H04-2
Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection
As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
