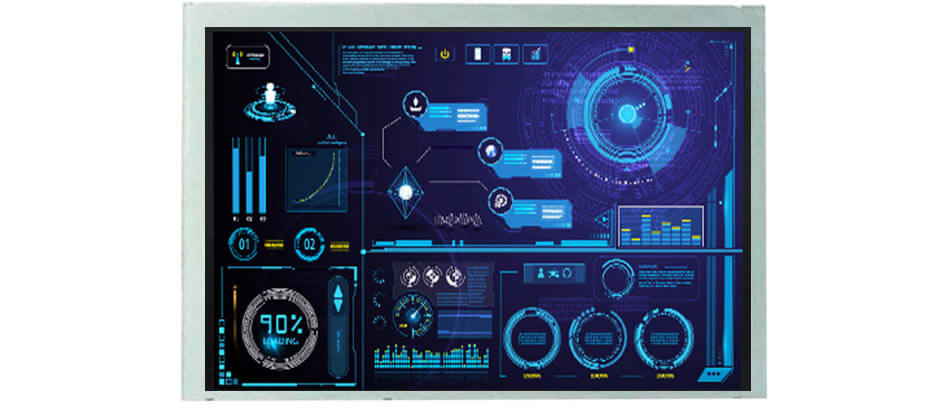

P0700WSF3QB00 7 Inch TFT LCD Display 1024×600 MIPI High Brightness LCD Display With In-Cell Touch

P0700WSF3QB00 7 Inch TFT LCD Display 1024×600 MIPI High Brightness LCD Display With In-Cell Touch Overview

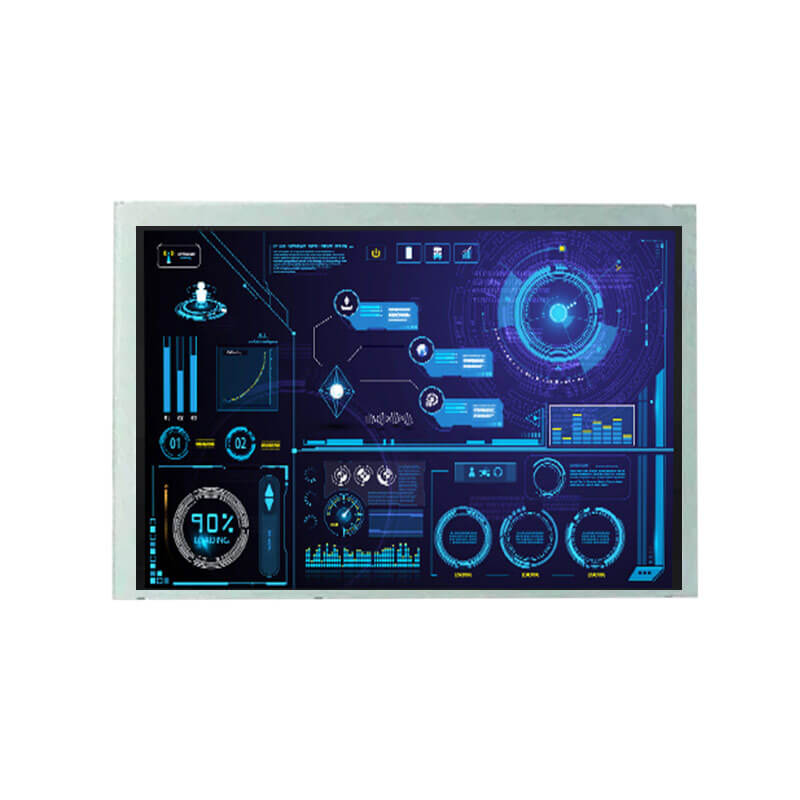

P0700WSF3QB00 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, With LED Driver, touchscreen In-Cell Touch. P0700WSF3QB00 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×90(H) mm, outline size of 160.7(W)×100(H) mm. As a SFT, Normally Black, Transmissive LCM product, P0700WSF3QB00 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. P0700WSF3QB00 utilizes MIPI as it's signal inputting systerm. It's typical vertical frame rate (Fv) is 60Hz.

More 7 Inch Display With In-Cell Touch For Reference
ET070WU01-TT (LCD, 1200×1920, MIPI, 350nits, -20~70°C, 115×176mm,In-Cell)
ET070WU01-HLT (LCD, 1200×1920, MIPI, 2000nits, -20~70°C, 105.46×162.82mm,In-Cell)
TL070FVXS11-00 (LCD, 1080×1920, MIPI, 450nits, -20~70°C, 99.556×171.94mm,In-Cell)
ET070FH01-RT (LCD, 1080×1920, MIPI, 2000nits, -20~70°C, 102.5×175mm,In-Cell)
ZS070FHT-L41 (LCD, 1920×1080, eDP, 500nits, 0~50°C, 157.444×94.81mm,In-Cell)
P0700WSF3QB00 (LCD, 1024×600, LVDS, 500nits, -20~70°C, 160.7×100mm,In-Cell)

Key Features For Youritech In-Cell Touch Display

Ultra-Thin Design
-Touch sensor integrated into the LCD, making the module thinner and lighter.
High Optical Clarity
-Fewer layers provide better brightness, sharper images, and richer colors.
Fast Touch Response
-More sensitive and quicker touch interaction with low latency.
Narrow Bezel
-Supports slim-border designs and larger viewing areas.
Low Power Consumption
-Improved light efficiency helps reduce energy use.
High Reliability
-Fewer components improve durability and long-term stability.
Sunlight Readability
-Better visibility in outdoor and high-brightness environments.
Easy Integration
-Simplified assembly with touch and display combined in one module.
Wide Application Range
-Ideal for smartphones, industrial control, medical devices, automotive, and smart terminals.

Applications For Youritech In-Cell Touch Display

Consumer Electronics
-Smartphones, tablets, and handheld devices.
Smart Home Devices
-Control panels, smart thermostats, and security systems.
Industrial Equipment
-HMI terminals, automation controls, and portable instruments.
Medical Devices
-Patient monitors, diagnostic equipment, and healthcare tablets.
Automotive Displays
-Infotainment systems, digital dashboards, and EV charging stations.
Retail & POS Systems
-Self-service kiosks, payment terminals, and interactive displays.
Smart Wearables
-Smartwatches, fitness trackers, and wearable electronics.

Youritech In-Cell Touch Display Customer Pain Points & Our Solutions

Many customers face challenges such as bulky display structures, poor outdoor visibility, touch response issues, complex integration processes, and limited customization options. In demanding applications, reliability, durability, and low power consumption are also key concerns.

Youritech's In-Cell Touch Display solutions address these challenges by integrating touch functionality directly into the display, creating thinner and lighter modules with enhanced optical clarity. We offer high-brightness displays, advanced touch performance, optical bonding, custom cover glass design, and controller board integration to improve user experience and simplify product development. With strong R&D, customization, and manufacturing capabilities, we help customers achieve higher reliability, faster time-to-market, and cost-effective production.

Youritech In-Cell Touch Display R&D & Manufacturing Capabilities

Youritech provides comprehensive In-Cell Touch Display development and manufacturing services, from concept design to mass production. Our capabilities include display module customization, touch integration, cover glass design, optical bonding, and embedded controller board development. We support a wide range of sizes, interfaces, brightness levels, and mechanical structures to meet specific application requirements.

With experienced engineering teams, advanced production facilities, and strict quality control systems, Youritech delivers high-performance, reliable display solutions for consumer electronics, industrial equipment, medical devices, automotive systems, smart home products, and other demanding applications. Our end-to-end manufacturing capabilities help customers accelerate product development, reduce integration complexity, and ensure consistent product quality.
