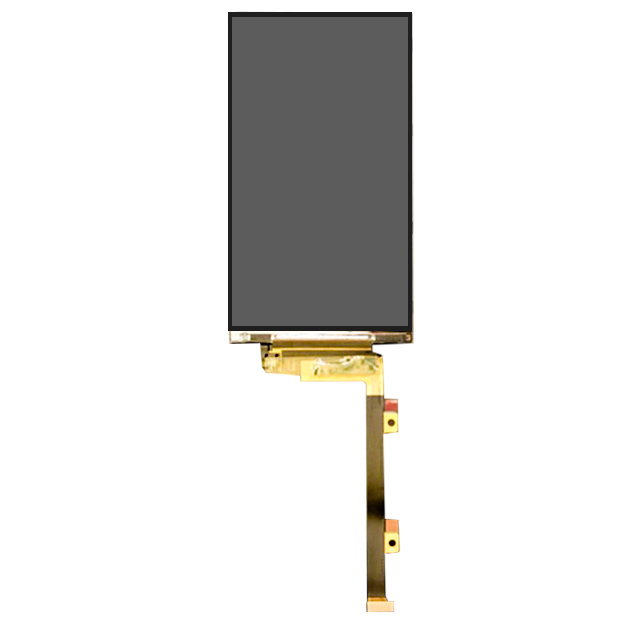

LQ050T1SX02 Original 5 Inch LCD Module 1080x1920 FHD IPS Display MIPI Interface LCD Panel

  • Part No.:LQ050T1SX02
  • Size:5″ inch
  • Resolution:1080x1920
  • Panel Interface:MIPI,30 pins Connector
  • Display mode:New Mode2,Transmissive
  • Outline Dimension:64.041x116.224x1.13mm
  • Active Area:61.641x109.584mm
  • Viewing Angle L/R/U/D:85/85/85/85 (Min.)
  • Brightness(cd/m2):460cd/m²(Typ.)
  • Operation / Storage Temp:-20~60°C / -30~70°C
  • Touch:no

Product Description

Product size
5.0-inch
Type
Oxide TFT-LCD, LCM
Pixel Format
1080(RGB)×1920 [FHD] 445PPI
Configuration
RGB Vertical Stripe
Active Area
61.641(H)×109.584(V) mm
Outline Dim.
64.041(H)×116.224(V) ×1.13(D) mm
Luminance
460 cd/m² (Typ.)
Contrast Ratio
1300:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
35 (Max.)(Tr+Td)
Viewing Angle
85/85/85/85 (Min.)(CR≥10)
Operating Mode
New Mode2, Normally Black, Transmissive
Support Color
16.7M 95% NTSC
Light Source
WLED [7S2P] , W/O Driver
Weight
13.1g
Designed For
Mobile Phone
Frequency
60Hz
Touch Panel
Without
Interface Type
MIPI , 30 pins Connector
Power Supply
1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN)
Environment
