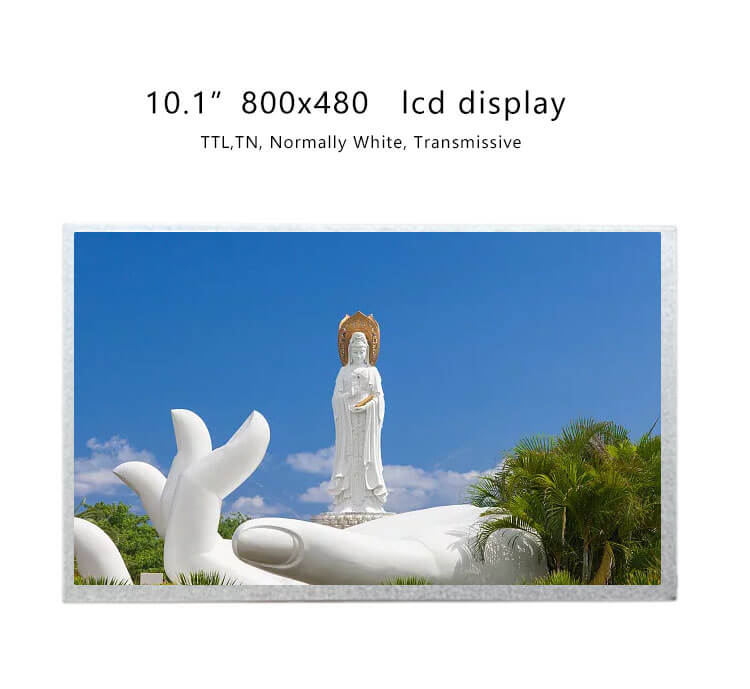

| LCD SPECIFICATION | |||
| Panel Size | 10.1" | Panel Type | a-Si TFT-LCD , LCM |
| Pixel Number | 800(RGB)×480, WVGA, 92PPI | Configuration | RGB Vertical Stripe |
| Active Area(mm) | 219.6(W)×131.76(H) mm | Outline(mm) | 235(W)×145.9(H) mm |
| Bezel Area(mm) | 221.6(W)×133.76(H) mm | Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| View Direction | 6 o'clock | Response Time | 12/18 (Typ.)(Tr/Td) |
| Support Color | 262K 48% NTSC | Backlight | 3S11P WLED , 20K hours , Without Driver |
| Weight | 315g | Used for | Industrial, Digital Photo Frame |
| Frame Rate | 60Hz | Touchscreen | Without |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 60 pins FPC | ||
| Input Voltage | 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | ||
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C | ||
