LS050K7SX01 5 Inch Transflective Display 720x1280 MIPI Sunlight Readable LCD Display For Handheld PDA

5 Inch Transflective LCD Display Overview

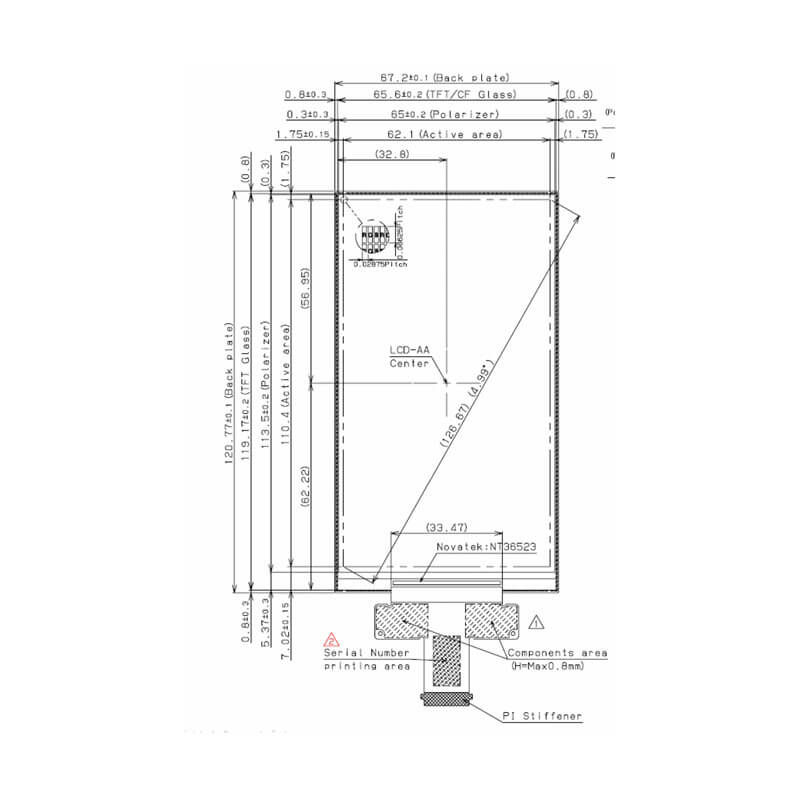

LS050K7SX01 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 294 PPI. As for mechanical detail, it features active area of 62.1(W)×110.4(H) mm, outline size of 67.2(W)×120.77(H)×1.95(D) mm, with surface treament of Hard coating (2H), net weight of 31.2g (Typ.). As a New Mode2, Normally Black, Transflective LCM product, LS050K7SX01 can provides , 30:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle, best view direction on Symmetry ., also with performance of color gamut 15% (NTSC). This product have no backlight. LS050K7SX01 utilizes MIPI (3 data lanes) as it's signal inputting systerm, which connected by 26 pins FPC with power supply voltage of 1.8/5.8/-5.8V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.

More 5 Inch Transflective LCD Display For Reference
ET050TR01-TV (480x800, CPU, 160nits, -20~70°C, 70.8x118.75mm)
COM50H5N15ULC (800x480, LVDS, 1200nits, -30~85°C, 124x80.82mm)
ET050TR01-K (800x480, TTL, 280nits, -20~70°C, 120.7x75.9mm)
COM50H5N25ULC (800x480, LVDS, 1200nits, -30~85°C, 124x80.82mm)
COM50H5N23UTC (800x480, LVDS, 500nits, CTP(Air))
COM50H5N17ULC (720x1280, MIPI, 400nits, -20~70°C, 67.84x120.22mm)
LS050K7SX01 (720x1280, MIPI, 400nits, -20~70°C, 67.2x120.77mm)
