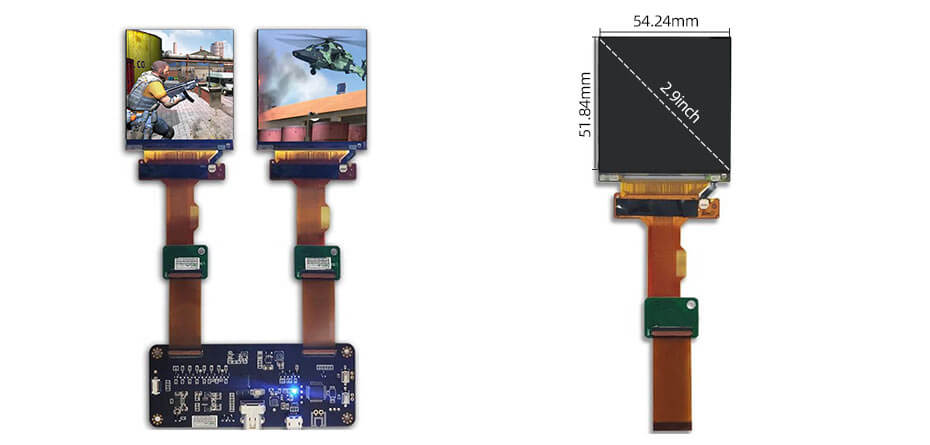

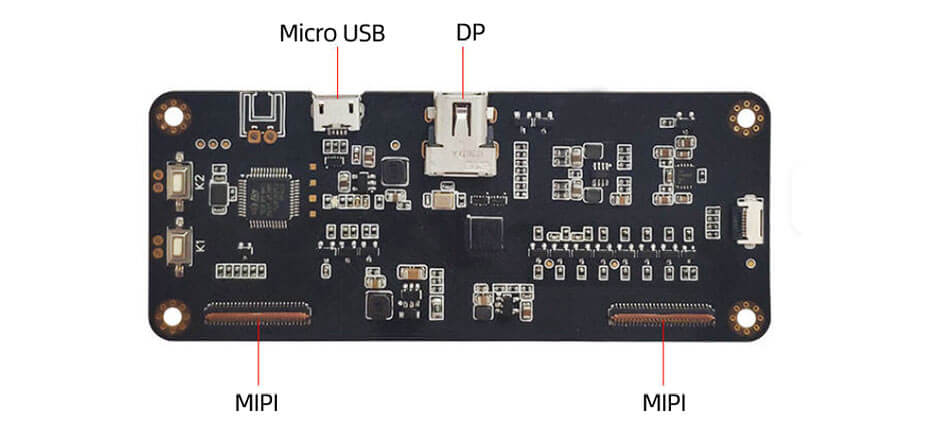

LS029B3SX02 Sharp 2.9 Inch Square Display 1440x1440 MIPI 120HZ Dual Display With Drive Board For HMD Game

2.9 Inch LCD Display Overview

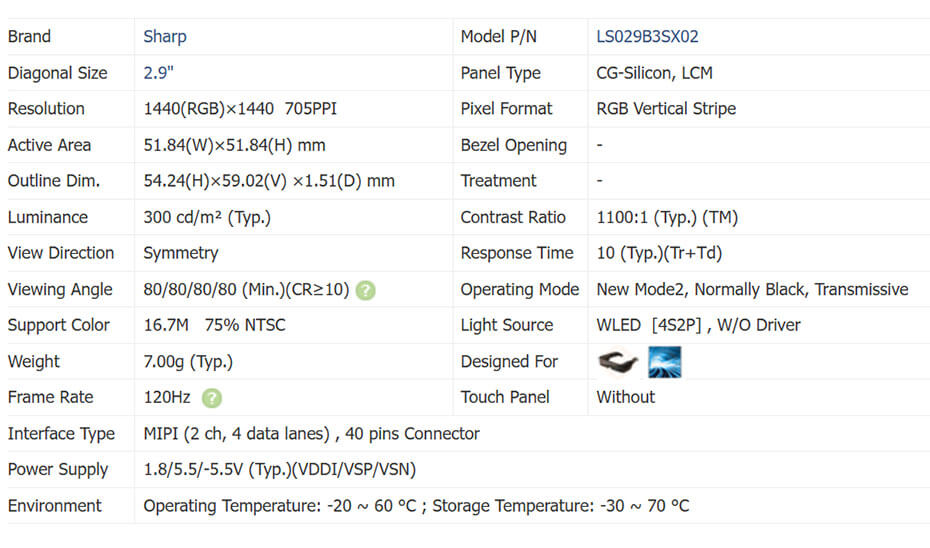

LS029B3SX02 is a 2.9 inch diagonal CG-Silicon display screen product from Sharp, with a built-in WLED backlight, without backlight driver, without touch screen.LS029B3SX02 supports display 1440(RGB)×1440 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 705 PPI. As for mechanical detail, it features active area of 51.84(W)×51.84(H) mm, outline size of 54.24(W)×59.02(H)×1.51(D) mm, net weight of 7.00g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LS029B3SX02 can provides 300 cd/m² display brightness 1100:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC).

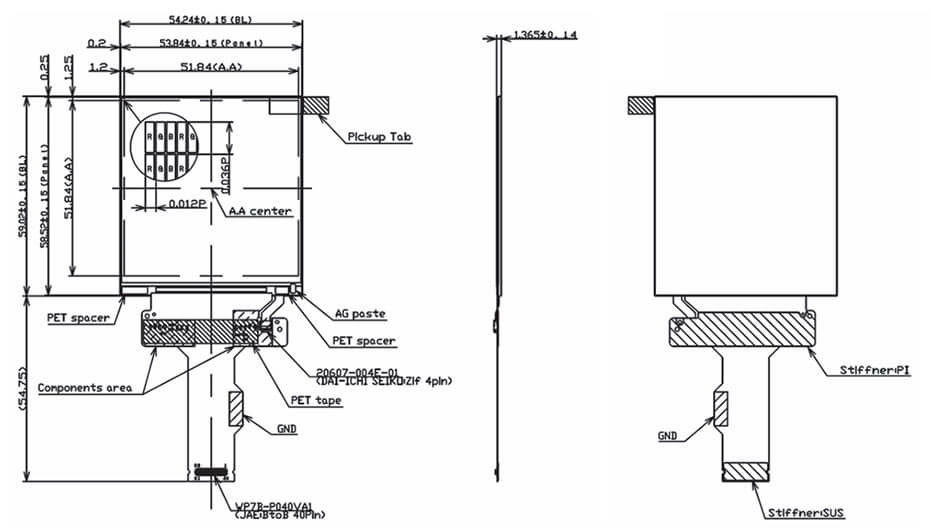

2.9 Inch LCD Display Drawing

PRODUCTION AND MANUFACTURING
