LS022B7DH03 Sharp 2.2 Inch TFT LCD Display 240x320 Transflective 3-wire SPI LCD Module

LS022B7DH03 Overview

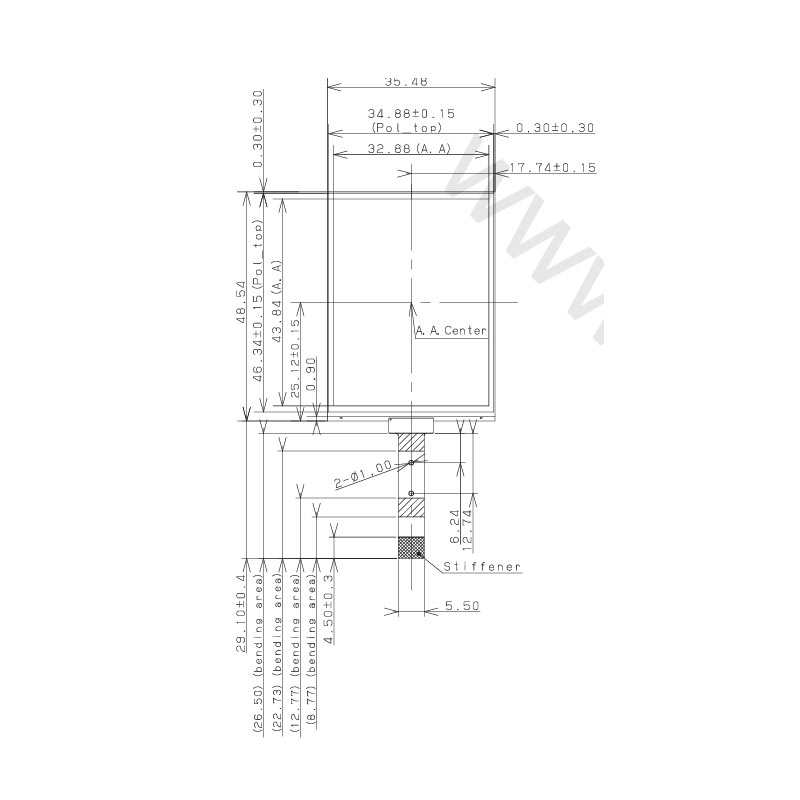

LS022B7DH03 supports display 240×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in Rectangle. It features active area of 32.88(W)×43.84(H) mm, outline size of 35.48(W)×48.54(H)×0.85(D) mm, with surface treament of Antiglare, net weight of 3.00g (Max.). As a TN, Normally White, Transflective LCM product, LS022B7DH03 can provides , 18:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms., thus presenting a palette of Monochrome colors. This product have no backlight. LS022B7DH03 utilizes 3-wire SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 3.2/3.3V (Typ.)(VDDA/VDD). It's typical vertical frame rate (Fv) is 1Hz.

LS022B7DH03 Feature
-Transflective
-Matte
-Portrait Type
Screen Size:2.2 inch
Resolution:240x320
Brand:Sharp
LS022B7DH03 Sharp 2.2 Inch 240x320 Transflective TFT LCD Display.

LS022B7DH03 Application
For Wearable & Industrial LCD Display.

LS022B7DH03 Options For Reference
LS022B7DH03

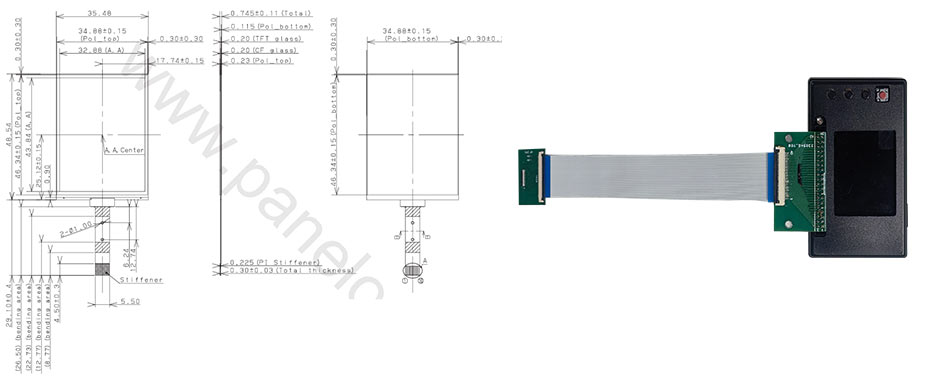

LS022B7DH03 with demo
LS022B7DH03 with backlight(NRE)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
