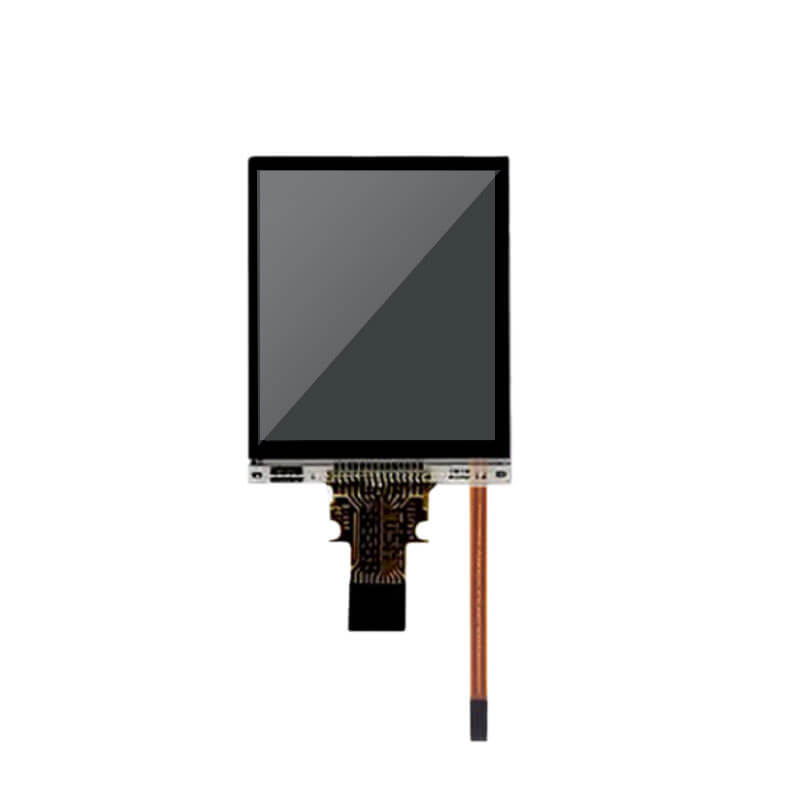

LS013B7DH05 Sharp 1.26 Inch Sunlight Readable LCD Display 144x168 Reflective LCD Display For Wearable

LS013B7DH05 Overview
LS013B7DH05 supports display 144×168 with aspect ratio of 6:7 (W:H), whose pixels are arranged in Rectangle. It features active area of 20.88(W)×24.36(H) mm, outline size of 24.68(W)×30(H)×0.76(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.10g (Max.). As a TN, Normally White, Reflective LCM product, LS013B7DH05 can provides , 20:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 10/20 (Typ.)(Tr/Td) ms.

LS013B7DH05 Feature
-Reflective
-Portrait Type
-Sunlight Readable
-Matte

Screen Size:1.26 inch
Resolution:144x168
Brand:Sharp
LS013B7DH05 Sharp 1.26 Inch 144x168 Sunlight Readable LCD Display.

LS013B7DH05 Application
For Wearable & Industrial LCD.

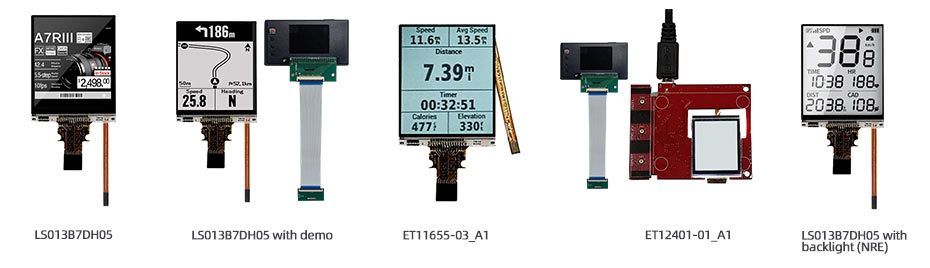

More LS013B7DH05 Options For Reference
LS013B7DH05
LS013B7DH05 with demo
LS013B7DH05+front light
LS013B7DH05+front light+ demo
LS013B7DH05 with backlight (NRE)

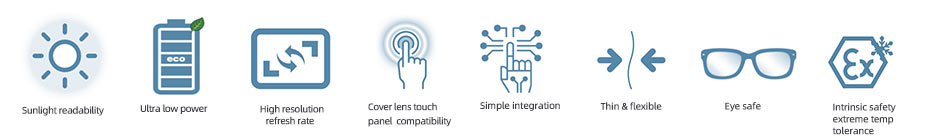

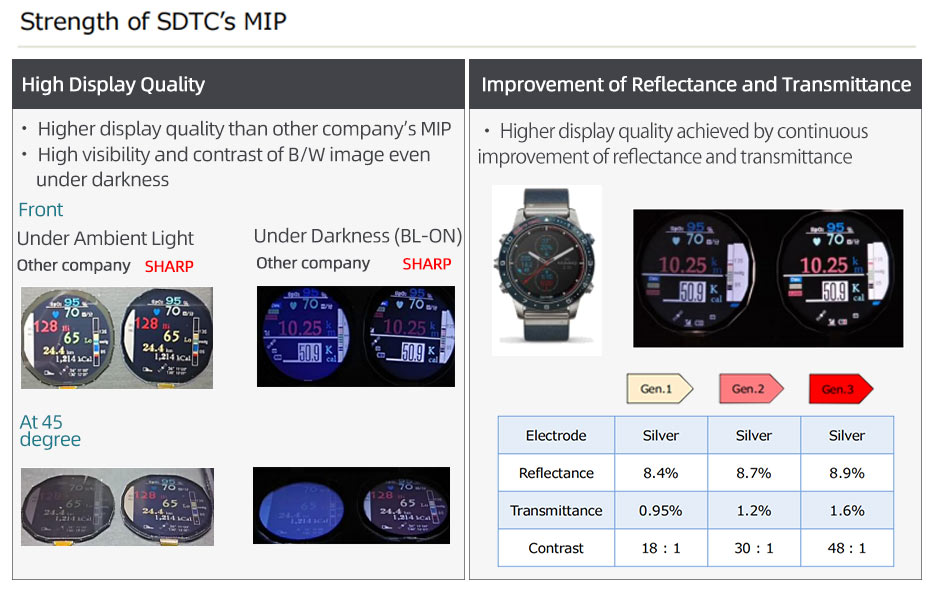

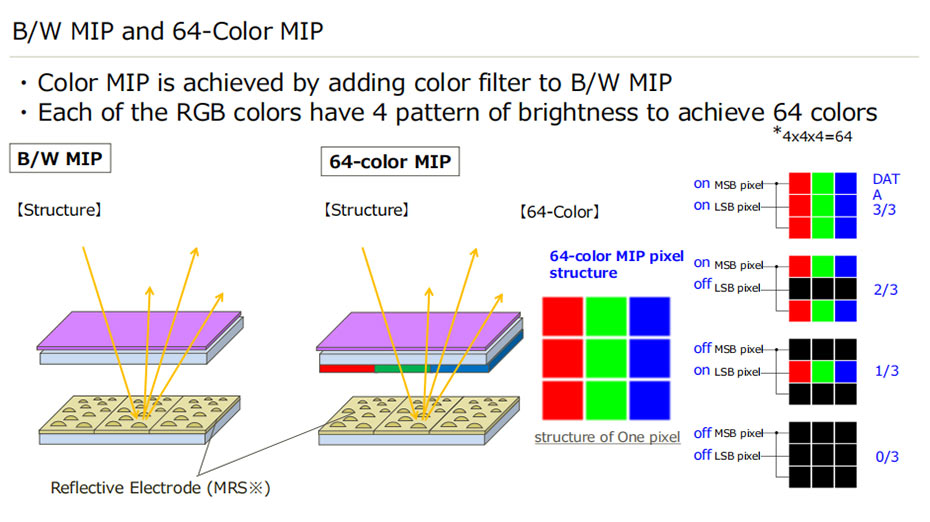

Reflective MIP Displays Technology


Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
