LQ058T5DR02 Overview

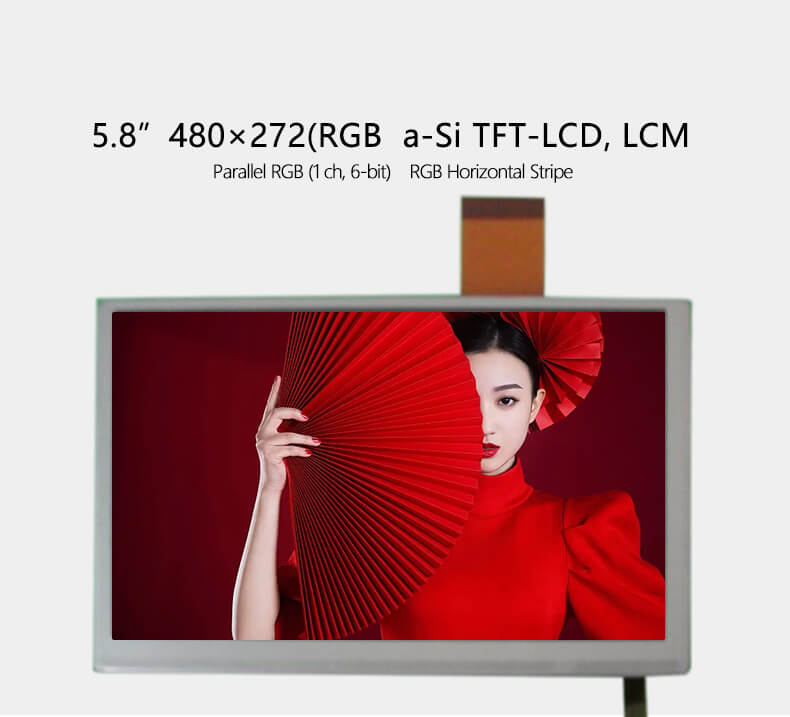

LQ058T5DR02 is a 5.8 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight. LQ058T5DR02 supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 128.88(W)×71.4(H) mm, outline size of 141.1(W)×83.7(H) mm, net weight of 120g (Max.). LQ058T5DR02 can provides 450 cd/m² display brightness . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. LQ058T5DR02 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm.
Application
For Industrial.
