HSD215GUW1-A00-0299 Hannstar 21.5 inch 1920x1080 TFT LCD Sunlight Readable Transflective LCD Display Screen

Part No.:HSD215GUW1-A00-0299
Size:21.5″ inch
Resolution:1920x1080
Panel Interface:LVDS (2 ch,8-bit)
Display mode:Normally White

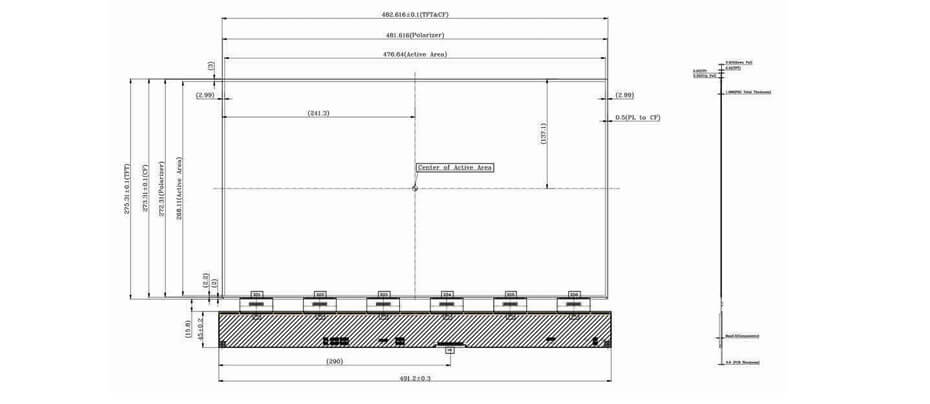

Outline Dimension:482.616x275.31x1.068
Active Area:476.64x268.11mm
Viewing Angle L/R/U/D:65/65/65/65 (Typ.)
Brightness（cd/m2）:
Operation / Storage Temp:-20~70°C / -30~70°C
Touch:no

21.5 Inch Transflective LCD Display Overview
HSD215GUW1-A00-0299 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 482.616(W)×275.31(H)×1.07(D) mm, with surface treament of Glare (Haze 0%), Hard coating, Antireflection, net weight of TBD. As a IPS, Normally Black, Transflective CELL product, HSD215GUW1-A00-0299 can provides 15:1 transimissive contrast ratio, 15:1 (Typ.) reflective contrast ratio, 65/65/65/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product have no backlight. HSD215GUW1-A00-0299 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
