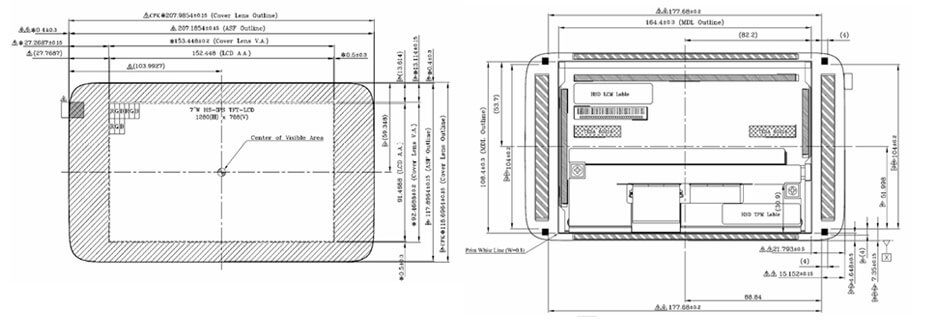

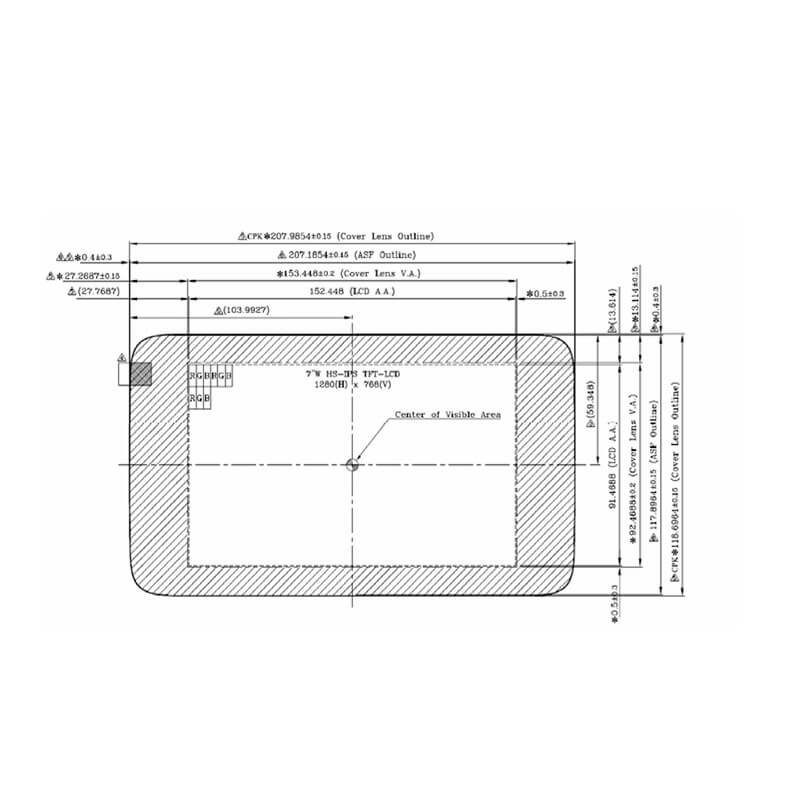

HSD070JWW1-A20-T00 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.448(W)×91.4688(H) mm, outline size of 207.785(W)×118.496(H)×12.27(D) mm, with surface treament of Anti Fingerprint, Antireflection, net weight of 260g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD070JWW1-A20-T00 can provides 1250 cd/m² display brightness 1000:1 transimissive contrast ratio, 60/60/60/60 (Max.)(CR≥200) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 89% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HSD070JWW1-A20-T00 utilizes LVDS (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 7 Inch EV Charger Display For Reference
G070ACE-LH1 (800×480, LVDS, 1000nits, -30~80°C, 170×110mm)
P0700WVF1MA10 (800×480, LVDS, 1000nits, -30~80°C, 169.8×109.7mm)
TM070RDHG34-00 (800×480, TTL, 1000nits, -30~85°C, 164.9×100mm)
P0700WVF1MA00 (800×480, LVDS, 1500nits, -30~80°C, 169.8×109.7mm)
TCG070WVLQGPNN-AN40 (800×480, LVDS, 1000nits, -30~80°C, 169.8×109.7mm)
DJ070NA-03J (800×480, TTL, 750nits, -30~85°C, 164.9×100mm)
P0700WVN1MA00 (800×480, TTL, 1000nits, -30~85°C, 164.9×100mm)
TX18D206VM0BAA (800×480, LVDS, 800nits, -40~85°C, 167.7×109.45mm)
COM70H7M24ULC (800×480, LVDS, 790nits, -30~85°C, 169.8×109.7mm)
COM70H7M44UTC (800×480, LVDS, 900nits, -30~80°C, 187.7×123.7mm, CTP)
ET070WV01-T (800×480, TTL, 700nits, -20~70°C, 164×100mm)
ET070WV06-KT (800×480, TTL, 1100nits, -30~85°C, 165.4×104.59mm)
TX18D212VM0BAA (1280×768, LVDS, 1500nits, -40~85°C, 164.4×105mm)
HSD070JWW1-A20-T00 (1280×768, LVDS, 1250nits, -40~85°C, 207.785×118.496mm, CTP)
TX18D200VM0EAA (1920×1080, LVDS, 1200nits, -40~85°C, 169×104mm)
ET070FH01-HTT (1920×1080, MIPI, 4500nits, -20~70°C, 164.19×97.87mm, In-Cell Touch)
ET070WU01-TT (1920×1080, MIPI, 1300nits, -20~70°C, 105.18×163.34mm)
ET070HD05-KT (1024×600, MIPI, 1500nits, -20~70°C, 165×100mm, CTP)
ET070WS10-TC (1024×600, TTL, 1000nits, -30~80°C, 164.9×100mm)
ET070WS07-KT (1024×600, LVDS, 1600nits, -30~85°C, 182×117.6mm)
ET070WX30-TT (800×1280, MIPI, 2000nits, -20~70°C, 115×176.7mm, CTP)
ET070FH01-RT (1080×1920, MIPI, 2000nits, -20~70°C, 102.5×175mm, In-Cell Touch)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
