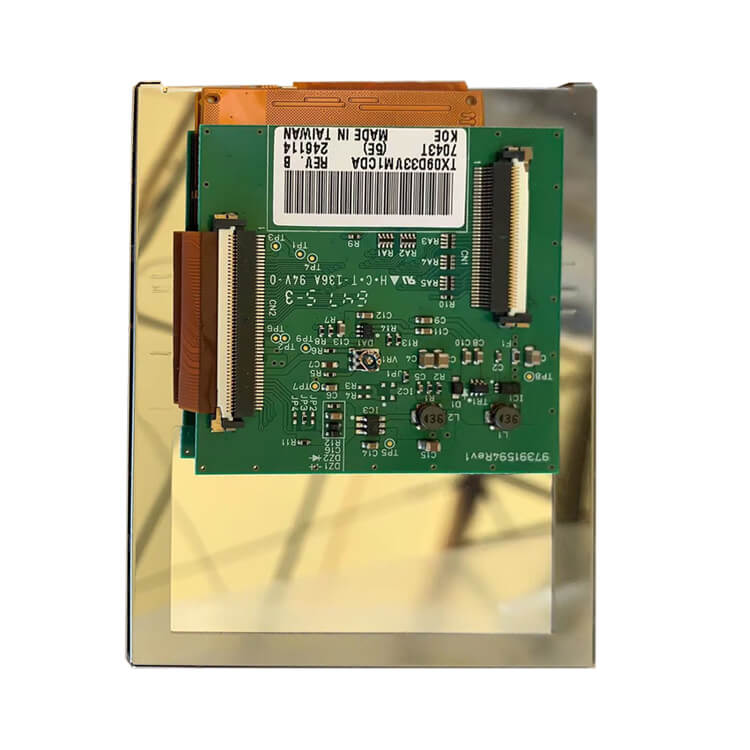

KOE TX09D30VM1CDA 3.5 Inch 240x320 LCD Display CMOS Interface LCD Screen For Handheld PDA

  • Part No.:TX09D30VM1CDA
  • Size:3.5″ inch
  • Resolution:240x320
  • Panel Interface:CMOS (1 ch,6-bit)
  • Display mode:TN,Transmissive
  • Outline Dimension:64(H)x86(V)mm
  • Active Area:53.64(H)x71.52(V)mm
  • Viewing Angle L/R/U/D:70/70/80/60 (Typ.)
  • Brightness(cd/m2):320(Typ.)
  • Operation / Storage Temp:-30~85°C / -30~85°C
  • Touch:no

3.5 Inch 240x320 LCD Display
