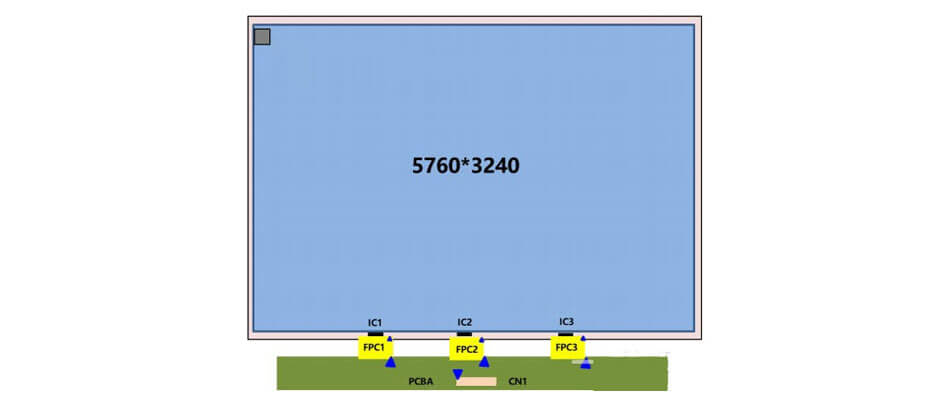

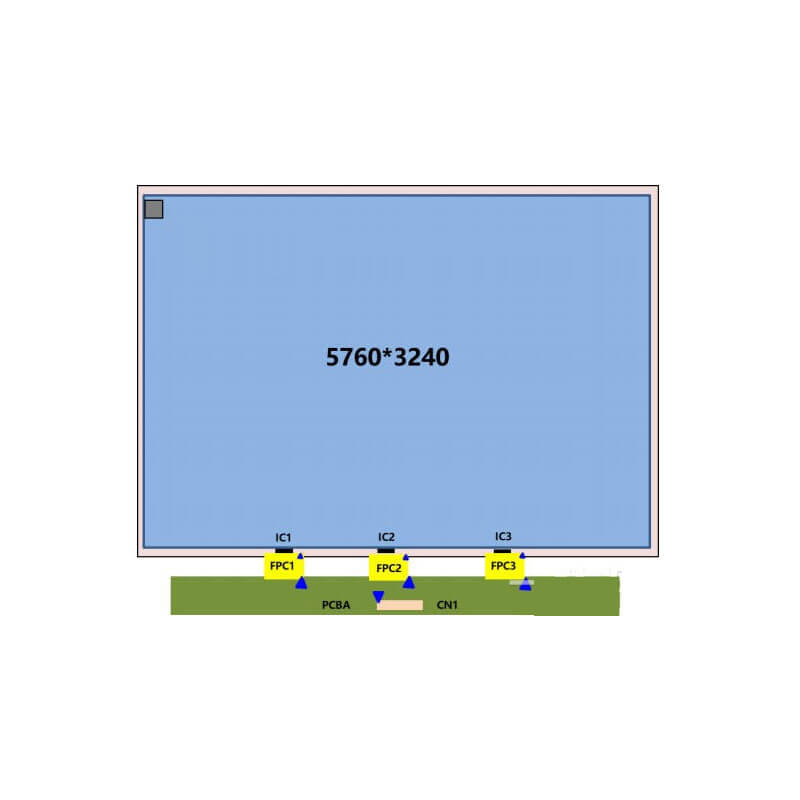

GS133FBB-N10-6RA0 13 Inch TFT LCD Display 5760×3240 IPS eDP Wide Temperature LCD Display For 3D Printer OverviewGS133FBB-N10-6RA0 supports display 5760×3240 with aspect ratio of 16:9 (W:H), whose pixels are arranged in Rectangle, it's pixel density is 508 PPI. As for mechanical detail, it features active area of 288(W)×162(H) mm, outline size of 297.56(W)×173.74(H)×1.25(D) mm, utilizing 0.50+0.50 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, GS133FBB-N10-6RA0 can provides 300:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product have no backlight. GS133FBB-N10-6RA0 utilizes eDP (4 Lanes) as it's signal inputting systerm Connector. It's typical vertical frame rate (Fv) is 60Hz.
Higher Resolution (2K / 4K / 10K / 14K / 16K) for 3D Printers
–Youritech High-resolution displays used in 3D printers deliver finer detail, sharper edges, and smoother surface finishes. Resolutions such as 2K, 4K, 10K, 14K, and 16K enable improved printing precision, higher pixel density, and better dimensional accuracy.
Pixel Size (XY Accuracy) for 3D Printer Display Manufacturing Features
-Advanced 3D printer display manufacturing supports precise pixel size control to achieve high XY accuracy.Through high-resolution panel production, optimized pixel design, and strict quality control processes, Youritech can deliver consistent display performance, uniform image output, and customized solutions for various 3D printer applications, including dental, jewelry, medical, and industrial printing.
Uniform Light Source for 3D Printer Display
-A uniform light source is a critical feature in 3D printer displays, ensuring even light distribution across the entire printing area. Youritech helps achieve consistent resin curing, improved print accuracy, smoother surface quality, and reliable dimensional consistency.
Intelligent Exposure for 3D Printer Display
-Intelligent exposure technology enables 3D printer displays to optimize light intensity and exposure time according to different printing requirements. Youritech LCD helps improve print accuracy, detail reproduction, and curing consistency while reducing overexposure or underexposure issues.
Wide Technology Options&Fast Customization & Development
-Youritech can provide diverse display technologies, including TFT LCD, OLED, touchscreen, and smart display solutions for various 3D printer applications, while enabling rapid prototyping and flexible customization to support different printer brands, models, and market requirements.
Industrial 3D Printing
-Used in manufacturing, prototyping, and production systems for machine control and process monitoring.
Consumer / Desktop 3D Printers
-Enables users to manage print settings, file selection, and printing status on home and hobbyist printers.
Educational 3D Printing Systems
-Applied in schools, universities, and training labs for learning, experimentation, and technical education.
Medical 3D Printing Equipment
-Supports the production of medical models, dental products, prosthetics, and customized healthcare components.
Automotive & Aerospace Printing
-Used for rapid prototyping, component testing, and precision part manufacturing.
Jewelry & Creative Design Printing
-Helps create detailed designs, customized products, and artistic models.
Research & Development Labs
-Used in engineering and material research for monitoring and adjusting experimental printing parameters.
Commercial & Professional Printing Services
-Applied in print farms and service bureaus for efficient printer management and workflow control.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
