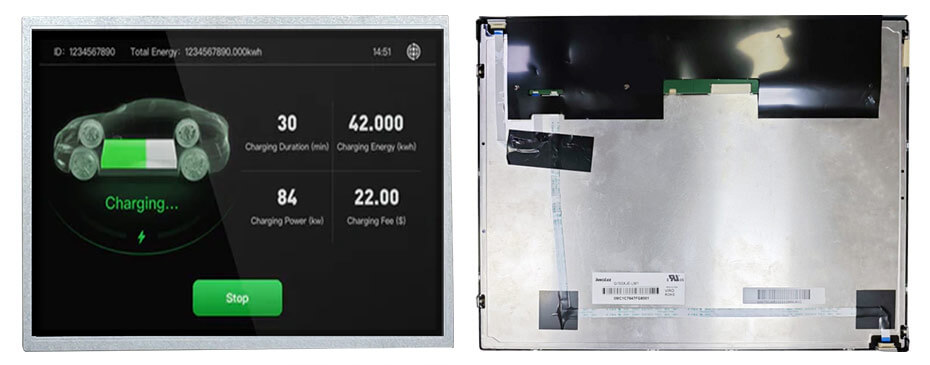

G150XJE-LM1 15 Inch TFT LCD Display 1024×768 High Brightness 1800nits LVDS Wide Temperature LCD Display For EV Charger

G150XJE-LM1 15 Inch TFT LCD Display 1024×768 High Brightness 1800nits LVDS Wide Temperature LCD Display For EV Charger Video

G150XJE-LM1 15 Inch TFT LCD Display 1024×768 High Brightness 1800nits LVDS Wide Temperature LCD Display For EV Charger Overview

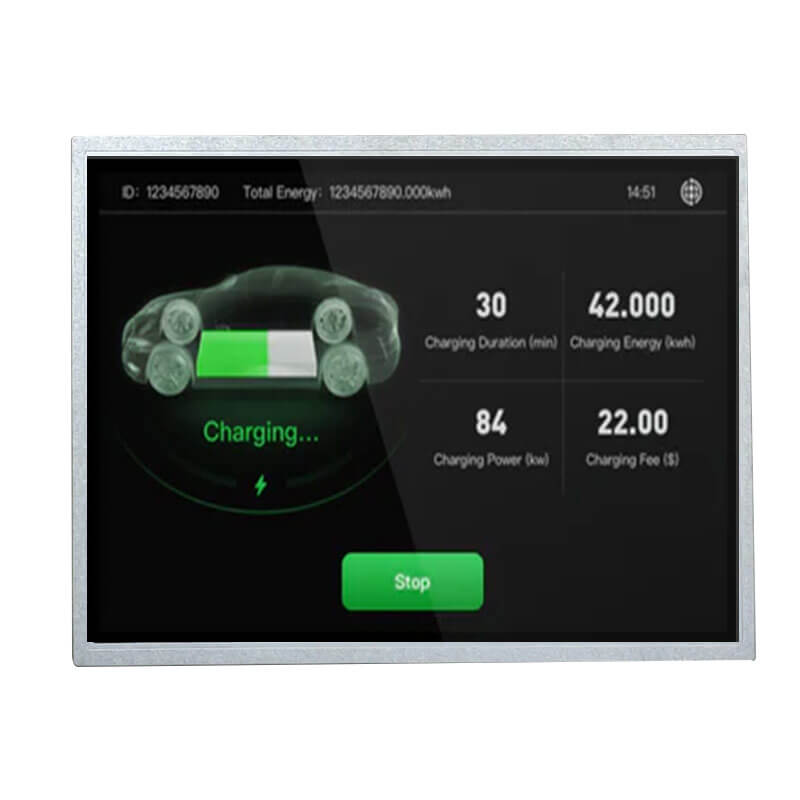

G150XJE-LM1 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×13.77(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 880±43g. As a NPVA, Normally Black, Transmissive LCM product, G150XJE-LM1 can provides 1800 cd/m² display brightness 2500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G150XJE-LM1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

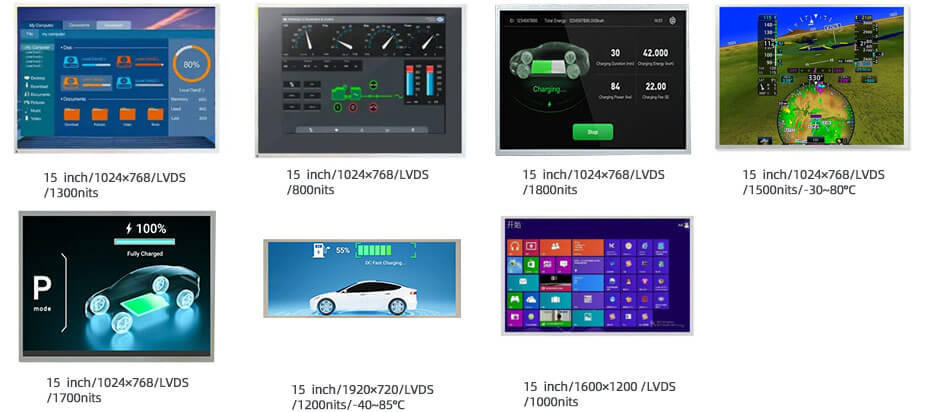

More 15 Inch EV Charger Display For Reference
G150XTN06.A (1024×768, LVDS, 1800nits, -30~70°C, 326.5×253.5mm)
G150XAN02.1 (1024×768, LVDS, 800nits, -20~75°C, 326.5×253.5mm)
G150XJE-LM1 (1024×768, LVDS, 1800nits, -30~70°C, 326.5×253.5mm)
DV150X0M-N17 (1024×768, LVDS, 1500nits, -30~80°C, 326.5×253.5mm)
P1500XGF3MA00 (1024×768, LVDS, 1700nits, -20~70°C, 326.5×253.5mm)
TX38D203VM0BAA (1920×720, LVDS, 1200nits, -40~85°C, 374.5×154.5mm)
TM150XDHG01 (1600×1200, LVDS, 1000nits, -30~70°C, 318.7×242.5mm)

Youritech EV Charger Display -Global Leading Touchscreen Design, Integration and Manufacturing

-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support

Engineered Hardware for EV Charger Displays

High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.

Applications For EV Charger Display

-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations

Youritech EV Charger Display Production and Manufacturing
