G104XVN01.0 Version:ZS0100 AUO 10.4 Inch 1024x768 TFT LCD Display

Part No.:G104XVN01.0
Size:10.4″ inch
Resolution:1024x768
Panel Interface:LVDS (1 ch,6/8-bit)
Display mode:PSA,Transmissive
Outline Dimension:238.6x175.8x7mm
Active Area:210.4x157.8mm
Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
Brightness（cd/m2）:470cd/m²(Typ.)
Operation / Storage Temp:-30~80°C / -30~80°C
Touch:no

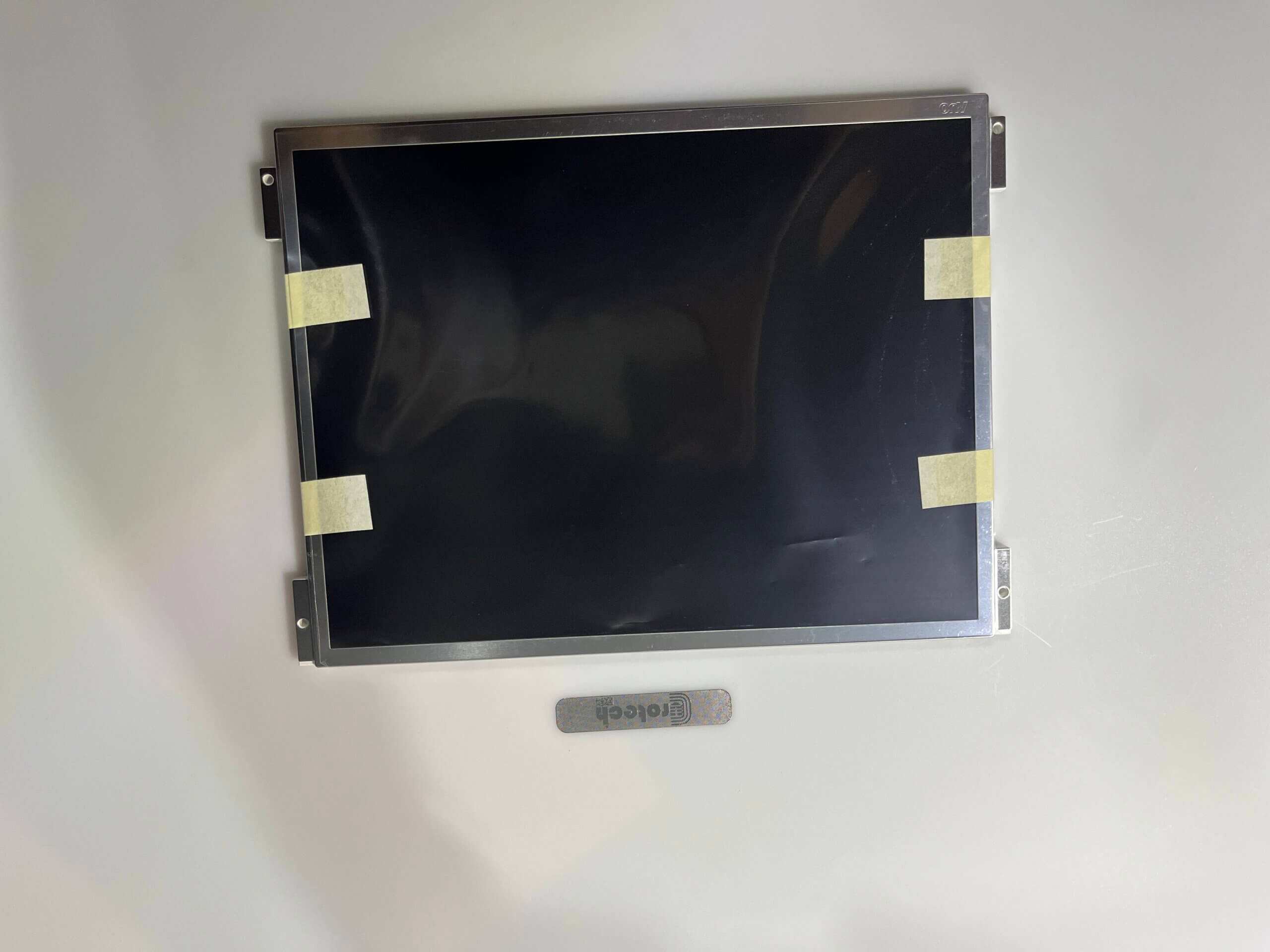

G104XVN01.0 Version:ZS0100 Overview
G104XVN01.0 is a 10.4" diagonal a-Si TFT-LCD display panel with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, Life ≥ 50K hours, With LED Driver, 180° Reverse, 6/8 bit, Matte.
