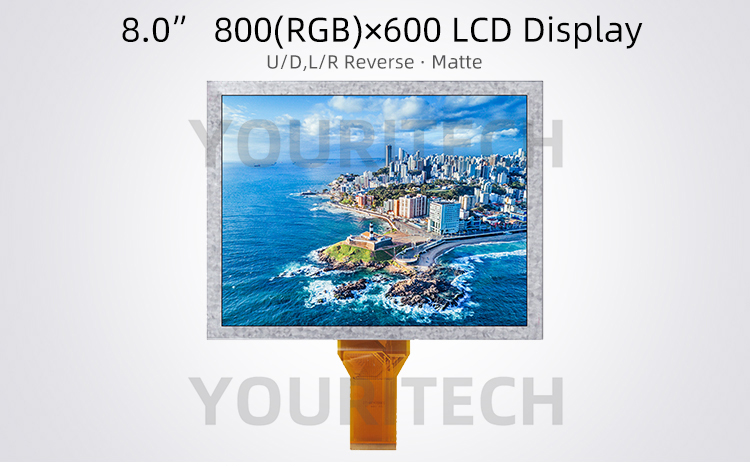

| Type | a-Si TFT-LCD , CELL | |
| Panel size | 8.0inch | |
| Pixel Number | 800(RGB)×600, SVGA, 125PPI | |
| Active Area | 162(W)×121.5(H) mm | |
| Contrast Ratio | 500:1 (Typ.) (TM) | |
| Signal Type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC | |
| Operating Mode | TN, Normally White, Transmissive | |
| Touchscreen | Without | |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | |
| Used For | Digital Phone Frame | |
| Arrangement | RGB Vertical Stripe |
