EV156FHM-N11 15.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness LCD Display For Healthcare Medical Display Solution

EV156FHM-N11 15.6 Inch TFT LCD Display 1920×1080 LVDS High Brightness LCD Display For Healthcare Medical Display Solution Overview

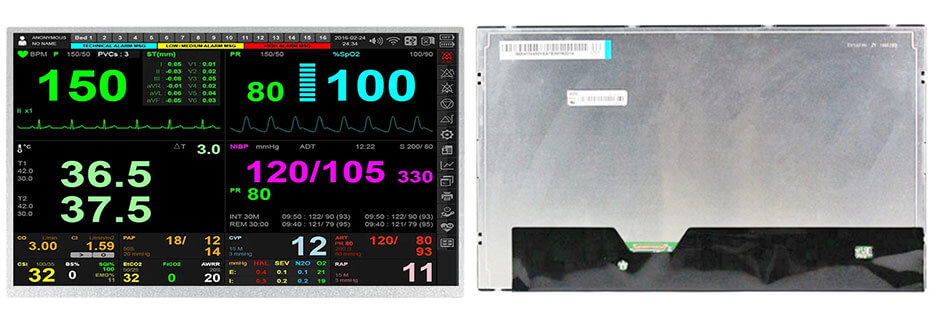

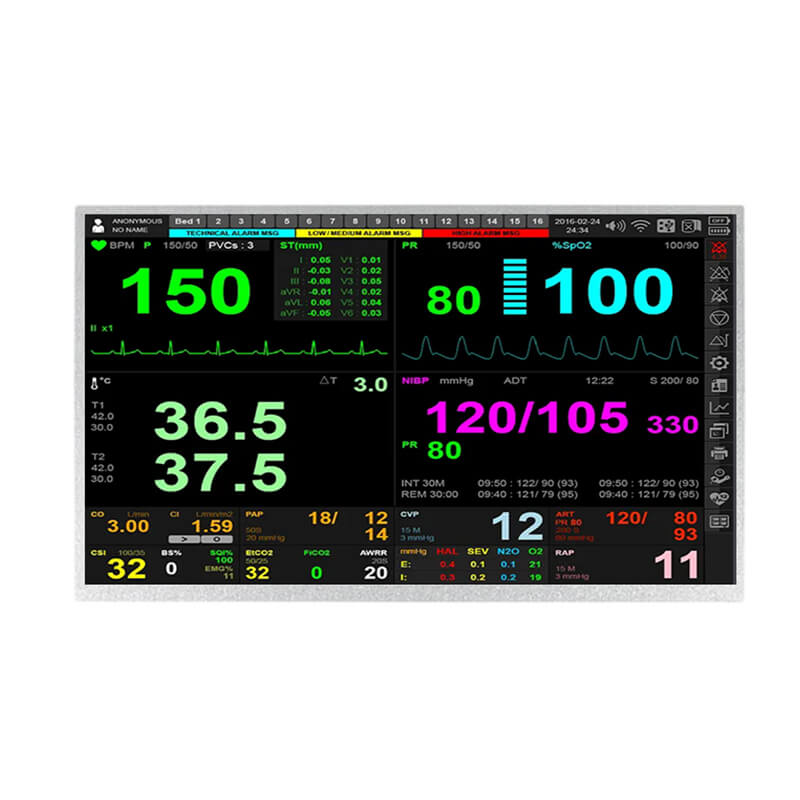

EV156FHM-N11 is a 15.6 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, With LED Driver, without touch screen. EV156FHM-N11 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 363.8(W)×216(H)×9.9(D) mm, viewing area size of 348.2(W)×197.6(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 850g (Max.). As a ADS, Normally Black, Transmissive LCM product, EV156FHM-N11 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 78% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. EV156FHM-N11 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

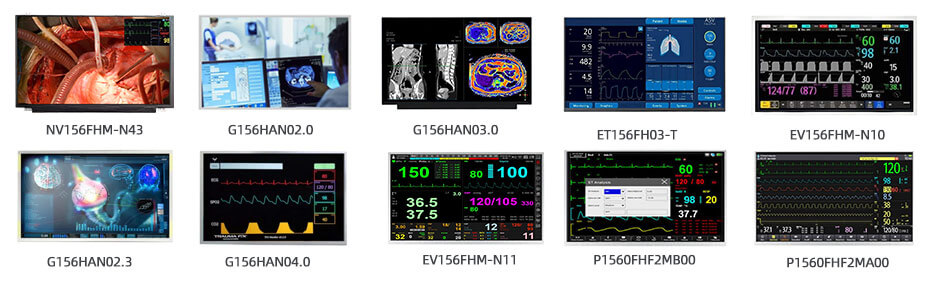

More 15.6 Inch Healthcare & Medical Display Solution For Reference
NV156FHM-N43 (LCM, 1920×1080, eDP, 0~50°C, 359.5×223.8mm)
G156HAN02.0 (LCM, 1920×1080, eDP, -20~70°C, 363.8×215.9mm)
G156HAN03.0 (LCM, 1920×1080, eDP, 0~50°C, 350.66×216.15mm)
ET156FH03-T (LCM, 1920×1080, eDP, 0~50°C, 350.66×216.15mm)
EV156FHM-N10 (LCM, 1920×1080, eDP, 0~60°C, 363.8×216mm)
G156HAN02.3 (LCM, 1920×1080, LVDS, -10~65°C, 363.8×215.9mm)
G156HAN04.0 (LCM, 1920×1080, LVDS, -30~85°C, 363.8×215.9mm)
EV156FHM-N11 (LCM, 1920×1080, LVDS, 0~70°C, 363.8×216mm)
P1560FHF2MB00 (LCM, 1920×1080, LVDS, -10~60°C, 350.66×205.24mm)
P1560FHF2MA00 (LCM, 1920×1080, LVDS, -30~80°C, 363.8×215.9mm)

Key Features of Healthcare & Medical Display Solutions

High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.

Application of Healthcare & Medical Display Solutions

Medical Imaging Equipment

Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.

Patient Monitoring & Critical Care

Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.

Diagnostic & Laboratory Equipment

Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.

Surgical & Operating Room Equipment

Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.

Dental Equipment

Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.

Emergency & Ambulance Equipment

Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.

Respiratory & Anesthesia Equipment

Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.

Infusion & Drug Delivery

Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.

Rehabilitation & Home Healthcare

Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.

Ophthalmic Equipment

Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.

Cardiology Equipment

ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
