0.48"-5" LCD Display (1.3")

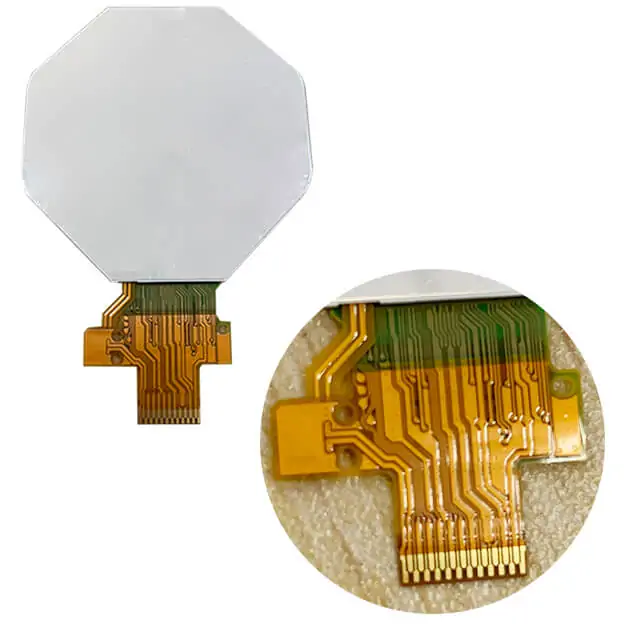

ET013M091A 1.34 inch lcd mode 320x300 Round Capacitive Touch Screen sunlight readable panel for watch

  • Part No.:ET013M091A
  • Size:1.34″ inch
  • Resolution:320x300
  • Panel Interface:MIPI
  • Display mode:Transflective
  • Outline Dimension:37.28(H)x38.18(V)x1.75(D)mm
  • Active Area:34.08(H)x31.95(V)mm
  • Viewing Angle L/R/U/D:60/65/65/60
  • Brightness(cd/m2):10cd/m²
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

Panel Size

1.34 inch

Panel Type

LTPS TFT-LCD, LCM

Resolution

320(RGB)×300

Pixel Format

RGB Vertical Stripe

Display Area

34.08(H)×31.95(V) mm

Luminance

10 cd/m² (Typ.)

Bezel Area

/

Outline

37.28(H)×38.18(V) ×1.75(D) mm

Treatment

Hard coating (2H)

Work Mode

ECB, Normally Black, Transflective

Viewing Angle

60/65/65/60 (Typ.)(CR≥10)

Contrast Ratio

20:1 (Typ.) (RF)

Good View at

/

Response

3/6 (Typ.)(Tr/Td)

Interface Type

23 pins   MIPI (1 data lane) , FPC

Light Source

WLED  [1 pcs] , W/O Driver

Support Color

262K   23% (CIE1931)

Touchscreen

Without

Weight

/

Power Supply

1.8/3.1V (Typ.)(VDDI/VCI)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
