ECX334C 0.39 Inch Micro OLED Display 1024×768 Sub-LVDS High Brightness 1000nits OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

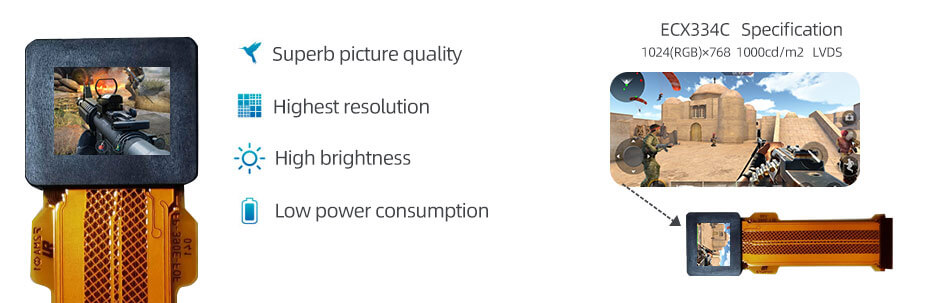

ECX334C is a 0.39 inch diagonal Si-OLED display screen product, it self emiting, without touch screen. ECX334C supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta, according to calculation of Panelook it's pixel density is 3186 PPI. As for mechanical detail, it features active area of 8.143(W)×6.146(H) mm. ECX334C can provides 1000 cd/m² display brightness 10000:1 transimissive contrast ratio . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product emiting itself . ECX334C utilizes Sub-LVDS as it's signal inputting systerm.

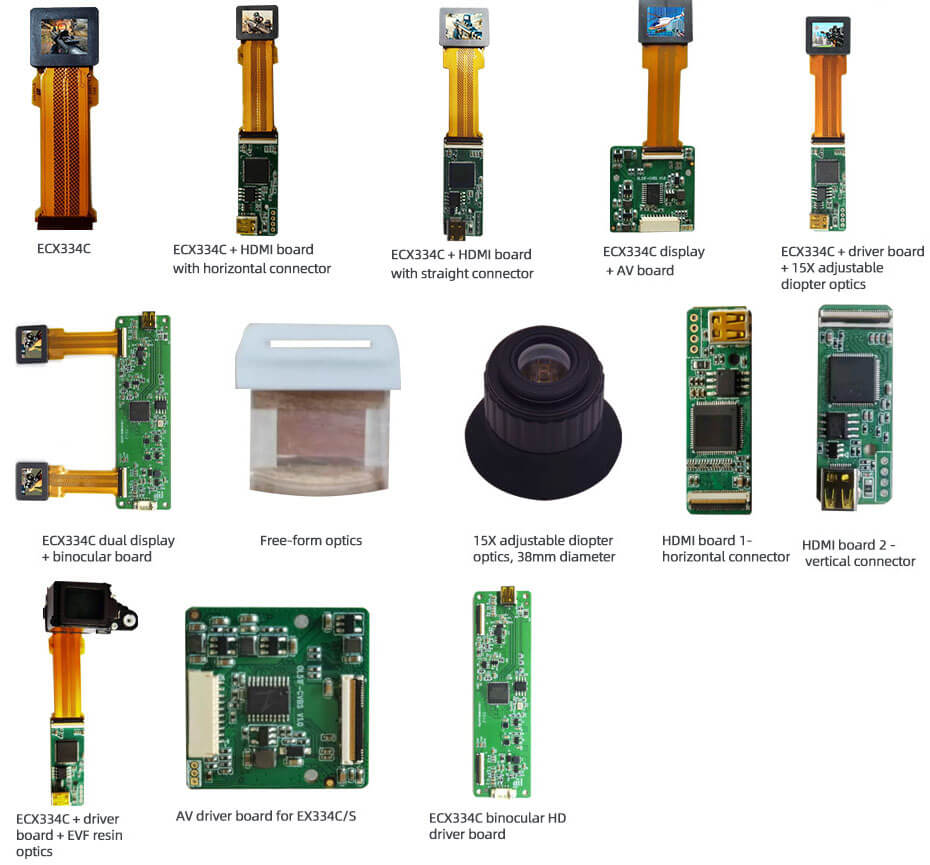

ECX334C 0.39 Inch Micro OLED Display Solution For Reference

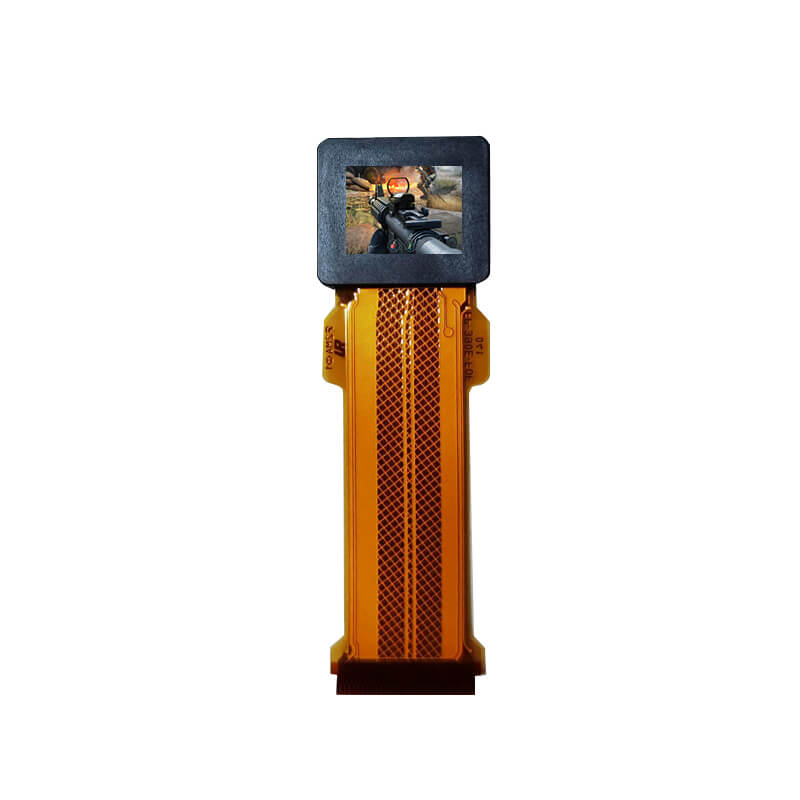

ECX334C
ECX334C + HDMI board with horizontal connector
ECX334C + HDMI board with straight connector
ECX334C display + AV board
ECX334C + driver board + 15X adjustable diopter optics
ECX334C dual display + binocular board
Free-form optics
15X adjustable diopter optics, 38mm diameter
HDMI board 1 - horizontal connector
HDMI board 2 - vertical connector
ECX334C + driver board + EVF resin optics
AV driver board for EX334C/S
ECX334C binocular HD driver board

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
