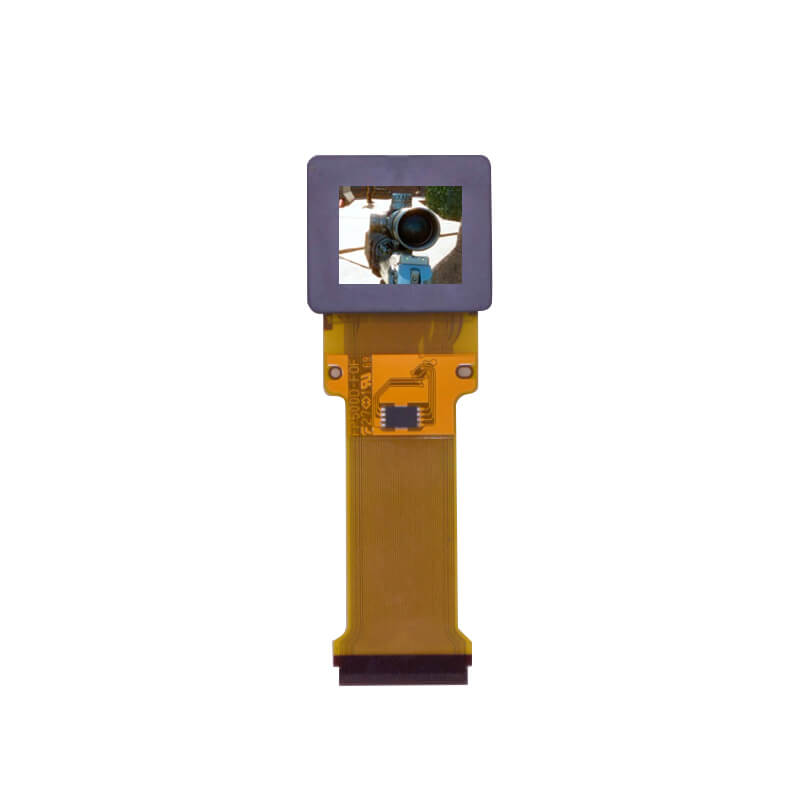

ECX331D 0.5 Inch Micro OLED Display 1024x768 High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

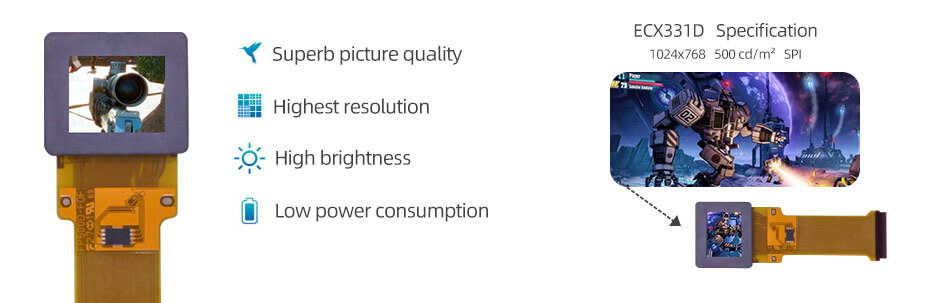

ECX331D is a 0.5 inch diagonal Si-OLED display module designed for EVF, AR, red dot sight, and advanced optical display applications. It adopts self-emissive OLED technology, combining the advantages of high contrast, fast response, and excellent image clarity for compact near-eye display systems. The ECX331D supports 1024×768 resolution with a 4:3 aspect ratio, providing sharp and detailed visuals for precision viewing applications. It features a compact active area of 10.336(W) × 7.8(H) mm and an outline dimension of 17.8(W) × 15.2(H) mm, making it ideal for space-constrained optical devices. The display delivers 500 cd/m² (Typ.) brightness and supports Parallel RGB (1 ch, 8-bit) + SPI interface, enabling flexible integration with various driver systems. With an operating temperature range of -10°C to 70°C and storage temperature range of -30°C to 80°C, the ECX331D provides reliable performance for electronic viewfinders (EVF), AR smart devices, digital scopes, red dot sights, and professional imaging equipment. The module is designed without a touch function for dedicated display applications.

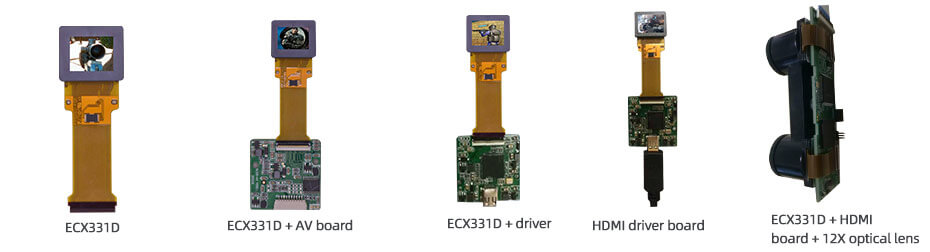

ECX331D 0.5 Inch Micro OLED Display Solution For Reference
ECX331D
ECX331D+AV board
ECX331D+driver
HDMI driver board
ECX331D+HDMI board+12X optical lens

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
