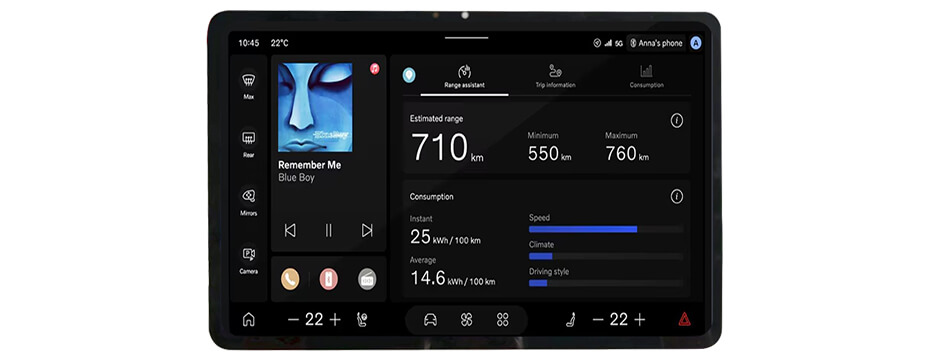

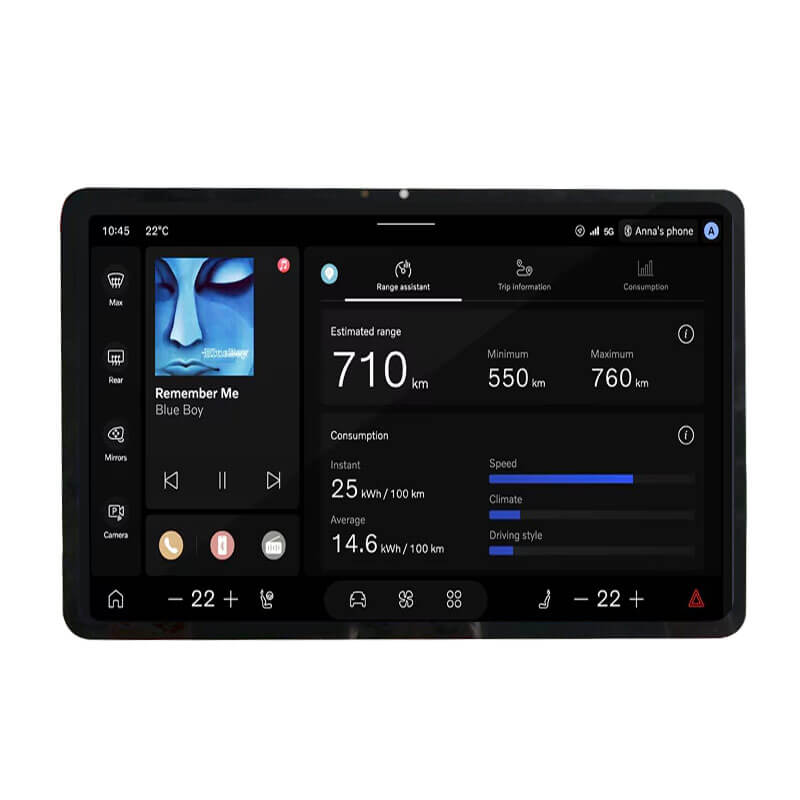

E906QAC73.A supports display 2400(RGB)×1504 with aspect ratio of 16:10 (W:H), whose pixels are arranged in Real RGB, it's pixel density is 312 PPI. As for mechanical detail, it features active area of 195.048(W)×122.23(H) mm, outline size of 204.85(W)×132.03(H)×3.99(D) mm, with surface treament of Anti Fingerprint, net weight of 97.9±9.8g. E906QAC73.A can provides 650 cd/m² display brightness 1000000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 1 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . E906QAC73.A utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 90 pins Connector with power supply voltage of 3.3/-3.2/4.9V (Typ.)(VCI/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 165Hz.
Ultra-Thin Structure
-Integrated touch layer reduces overall module thickness and weight for slimmer device designs.
High Optical Clarity
-Fewer layers improve light transmittance, delivering brighter images and better contrast.
Fast & Accurate Touch Response
-Direct sensor integration ensures smooth, precise multi-touch performance.
Enhanced Durability
-Fewer laminated layers improve structural reliability and reduce failure points.
Lower Power Consumption
-Improved display efficiency helps optimize battery life in portable devices.
Cost-Effective Integration
-Simplified assembly lowers manufacturing complexity and system cost.
Wide Application Compatibility
-Ideal for wearables, industrial control, medical devices, automotive displays, and smart home interfaces.
Custom Cover Glass Support
-Flexible for different shapes, coatings, and industrial design requirements.
Smart Wearables
-Smartwatches, fitness trackers, and AR/VR devices requiring ultra-thin and lightweight touch displays.
Industrial Control Systems
-HMI panels, control terminals, and factory automation equipment demanding reliable touch interaction.
Medical Devices
-Portable monitors, diagnostic equipment, and handheld medical instruments with precise touch control.
Automotive Displays
-Instrument clusters, infotainment systems, and EV charging interfaces with durable touch integration.
Smart Home Devices
-Smart thermostats, security panels, and home control hubs requiring sleek integrated displays.
Consumer Electronics
-Smartphones, handheld gaming devices, and portable multimedia products.
Point-of-Sale (POS) Systems
-Compact payment terminals and self-service kiosks with responsive touch functionality.
Portable Communication Devices
-Rugged handheld radios, GPS terminals, and field service equipment
Bulky Design
-On-Cell integration reduces thickness and weight.
Poor Visibility
-High transmittance with AG/AR improves outdoor readability.
Slow Touch Response
-Fast, accurate, and stable multi-touch performance.
Low Durability
-Rugged design for vibration, impact, and harsh environments.
Complex Integration
-Complete display + touch + board solutions simplify development.
Limited Customization
-Flexible size, shape, brightness, and interface options.
High Power Consumption
-Optimized low-power design for portable devices.
Supply Chain Risks
-In-house R&D and manufacturing ensure stable quality and delivery.
In-House Touch Integration
-Full On-Cell touch design, tuning, and bonding capabilities.
Custom Display Development
-Flexible customization for size, shape, brightness, interface, and cover glass.
Optical Bonding Expertise
-Enhanced durability, visibility, and touch performance.
Embedded Board Design
-Complete display + touch + controller board solutions.
Ruggedization Capability
-Wide-temperature, anti-glare, anti-reflective, and waterproof solutions.
Strict Quality Control
-Reliable testing for touch accuracy, durability, and display consistency.
Mass Production Support
-Stable supply chain with scalable manufacturing capacity.
Application Engineering
-Fast technical support for industrial, medical, automotive, and smart device integration.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
