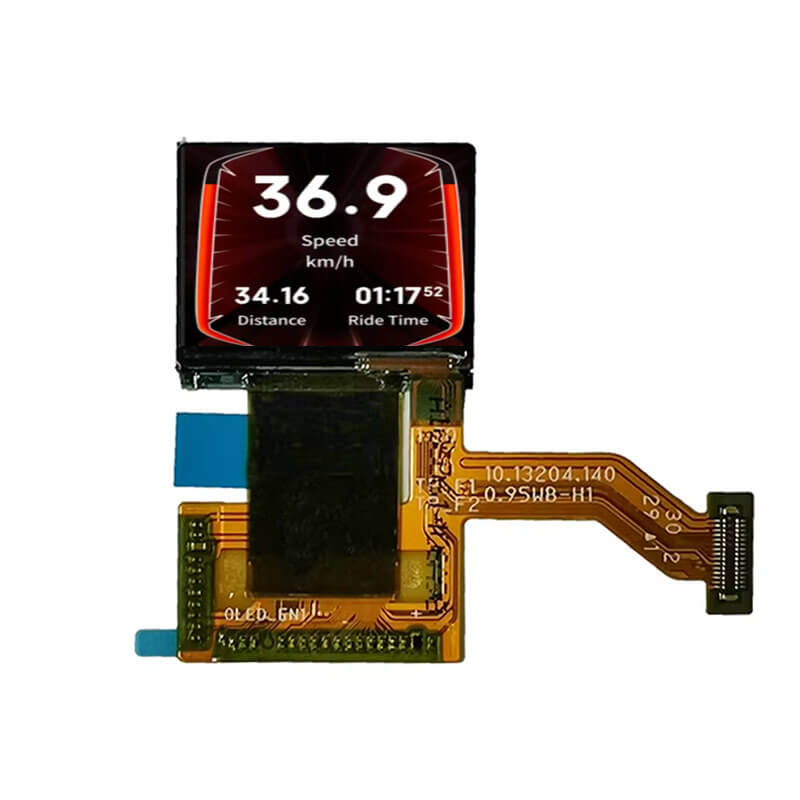

E0954AK1.A 0.95 Inch OLCD Display 180×120 SPI AMOLED Display With On-Cell Touch

0.95 Inch AMOLED Display Overview
E0954AK1.A supports display 180(RGB)×120 with aspect ratio of 15:10 (W:H), whose pixels are arranged in Real RGB. As for mechanical detail, it features active area of 20.13(W)×13.36(H) mm, outline size of 22.23(W)×18.32(H)×0.85(D) mm, net weight of 0.83g (Typ.). E0954AK1.A can provides 350 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥200) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 105% (NTSC). This product emiting itself . E0954AK1.A utilizes SPI as it's signal inputting systerm with power supply voltage of 4.6/-2.4/1.8/2.8V (Typ.(ELVDD/ELVSS/VDDIO/VCI). It's typical vertical frame rate (Fv) is 60Hz.

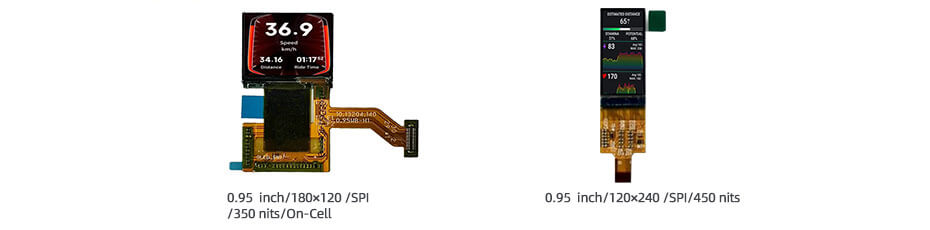

More 0.95 Inch AMOLED Displays For Reference
E0954AK1.A (180×120, SPI, IPS, 350nits, -20~70°C, 22.23×18.32mm, On-Cell Touch)
ET095XVT-01 (120×240, SPI, IPS, 450nits, -20~70°C, 12.8×27.35mm)
