47 Inch 3840x160 Bar Display Overview

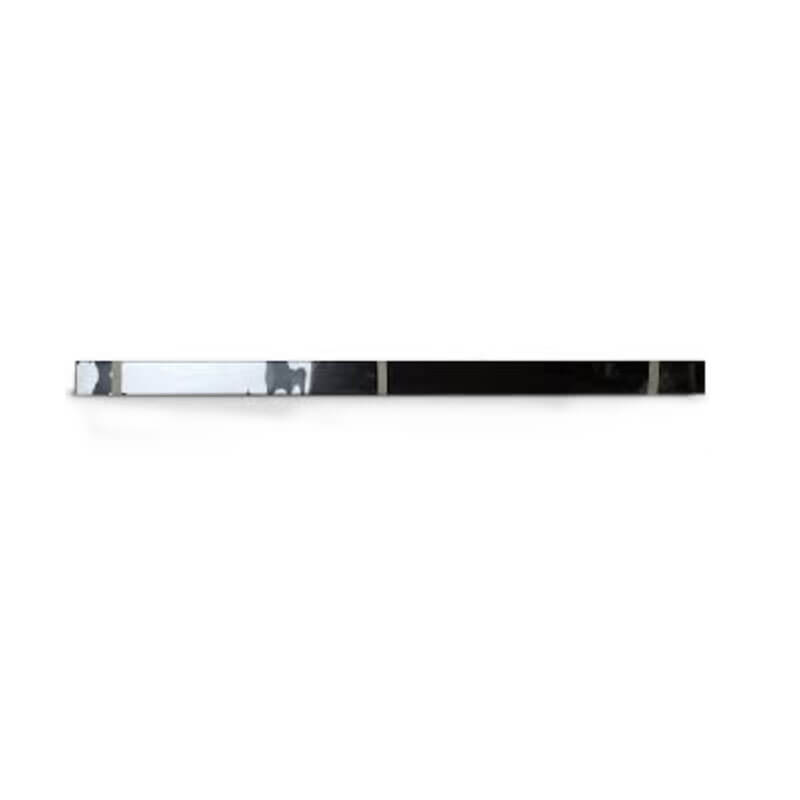

DV471FBM-N10 supports display 3840(RGB)×160 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1196.16(W)×49.84(H) mm, outline size of 1209(W)×62.9(H)×15.5(D) mm, with surface treament of Antiglare (Haze 25%), net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, DV471FBM-N10 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. DV471FBM-N10 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
47 Inch 3840x160 Bar Display Drawing
More Bar Displays For Reference
| Inch | Resolution | LCM Driver chip |
LCM Dimensions | Display area | LCD interface | Reference brightness |
| 0.96 | 80x160 | ST7735S | 13.5x27.95x1.5 | 10.80x21.70 | SPI | 500 |
| 80x160 | ST7735S | 13.5x27.95x2.15 | 10.80x21.70 | SPI | 1800 | |
| 1.14 | 135x240 | ST7789V | 17.56x31.07x1.6 | 14.86x24.91 | SPI4 | 500 |
| 1.9 | 170x320 | ST7789V | 25x49.32x1.53 | 22.7x42.72 | SPI4 | 500 |
| 170x320 | ST7789V | 25x49.32x1.53 | 22.7x42.72 | MCU8Bit/SPI Line | 1000 | |
| 2.86 | 376x960 | ST7701S | 31.2x76.6x2.05 | 27.11x68.28 | MIPI | 600 |
| 376x960 | ST7701S | 31.2x76.6x2.05 | 27.11x68.28 | RGB 24 BIT | 400 | |
| 2.99 | 268x800 | ST7701S | 26.12x78.75x1.65 | 24.12x72 | RGB 24 BIT | 400 |
| 3.5 | 340x800 | ST7701S | 37.27x89x1.6 | 33.97x81 | RGB | 400 |
| 3.71 | 240x960 | ST7701S | 25.3x98.89x1.61 | 22.86x91.44 | RGB 24 BIT | 400 |
| 3.9 | 480x128 | / | / | / | TTL | / |
| 3.99 | 480x960 | ST7701S | 42.9x102.08x2.19 | 39.18x94.03 | SPI3+RGB 18 BIT | 800 |
| 4.58 | 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 450 |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 1000 | |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 400 | |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | MIPI 2 LANE | 400 | |
| 5.8 | 800x320 | / | / | / | TTL | / |
| 6.2 | 360x960 | ST7701S | 58.1x154.9x2.3 | 55.3x147.46 | MIPI 2 LANE | 400 |
| 360x960 | ST7701S | 58.1x154.9x2.3 | 55.3x147.46 | RGB 24 BIT | 700 | |
| 6.5 | 1024x400 | / | / | / | TTL | / |
| 6.86 | 480x1280 | NV3051F1 | 66.6x181x4.5 | 60.22x160.58 | LVDS 8 BIT | 600 |
| 480x1280 | ICNL9707 | 72.42x173.79x6.5 | 60.22x160.58 | MIPI 4 LANE | 1000 | |
| 480x1280 | NV3052C | 66.6x181x4.5 | 60.22x160.58 | RGB 24 BIT | 600 | |
| 6.9 | 280x1424 | OTA7290B | 38.2x181.47x3.45 | 33.6x170.88 | MIPI 4 LANE | 500 |
| 280x1424 | OTA7290B | 38.2x181.47x3.45 | 33.6x170.88 | MIPI 4 LANE | 500 | |
| 280x1424 | NV3052C | 38.2x181.47x3.45 | 33.6x170.88 | RGB | 500 | |
| 7 | 280x1424 | OTA7290N | 38.2x181.47x3.4 | 33.60x170.88 | MIPI | 650 |
| 280x1424 | HDMI | 38.20x181.47x9.58 | 33.60x170.88 | HDMI | 700 | |
| 7.84 | 480x1280 | NV3051FL | 67.8x205.78x4.6 | 59.4x198.08 | MIPI 4 LANE | 900 |
| 480x1280 | NV3051F1 | 67.8x205.78x4.6 | 59.4x198.08 | LVDS 8 BIT | 900 | |
| 480x1280 | NV3051F1 | 67.8x205.78x4.6 | 59.4x198.08 | MIPI 4 LANE | 1200 | |
| 8 | 1600x480 | / | 249.2x87x6.86 | 194.4x58.32 | LVDS | 440 |
| 8.8 | 480x1920 | OTA7290B | 64.3x231.3x4.8 | 54.72x218.88 | MIPI 4 LANE | 500 |
| 1280x480 | HX82102A | 229.5×97.20×3.5 | 209.28x78.48 | LVDS 6/8 BIT | 500 | |
| 9.35 | 320x1280 | ICNL9707 | 64.48x246.15x4.5 | 58.08x232.7 | MIPI 4 LANE | 1000 |
| 9.9 | 720x1600 | ST7703I | 115.36x251.06x4.70 | 106.92x237.60 | MIPI 4 LANE | 1000 |
| 10.1 | 440x1920 | / | 64.98x266.44x4.6 | 57.95x252.86 | MIPI | 750 |
| 10.25 | 1920x480 | / | 258.90x111.1x7.55 | 243.648x91.368 | LVDS 8 BIT | 1000 |
| 10.4 | 1024x100 | HX8282 | 288.92x41.5x7.12 | 264.192x25.8 | RGB | 450 |
| 11.3 | 440x1920 | ICNL9707 | 64.98x266.39 | 57.9x252.69x4.6 | MIPI 4 LANE | 600 |
| 12.3 | 1920x720 | / | 305.92×123.62 | 292.32×109.62 | LVDS | 1400 |
| 12.6 | 1920×515 | / | 315.61×94.02 | 309.312×82.9665 | eDP | 400 |
| 12.7 | 2880×864 | / | 313.54×101.33 | 308.448×92.534 | eDP | 500 |
| 14.1 | 3840×1100 | / | 350.52× 118.65 | 344.218× 98.604 | eDP | 300 |
| 14.5 | 2560×720 | / | 362.42× 112.41 | 354.816× 99.792 | / | 900 |
| 2560x720 | / | 363.5x133.5x8 | 354.816x99.792 | LVDS | 650 | |
| 19.1 | 1920×360 | / | 491.5×109.4 | 476.64×89.37 | LVDS | 300 |
| 20.3 | 3840×720 | / | 555.01×126.98 | 506.88×95.04 | LVDS | 750 |
| 21 | 1920×132 | / | 542.4× 54.7 | 529.416× 36.3974 | LVDS | 300 |
| 1920x184 | / | 592x75x12.3 | 527.04x50.6 | LVDS | 500 | |
| 23.1 | 1920×158 | / | 597.2×61.8 | 585.216×48.1584 | LVDS | 700 |
| 24 | 1920×360 | / | 612.7× 132.1 | 597.888× 112.104 | LVDS | 300 |
| 28 | 1920×360 | / | 732×165×17.3 | 699.84×131.22 | LVDS | 700 |
| 1920x360 | / | 729.3x167.3x19.2 | 698.4x130.95 | LVDS | 700 | |
| 28.6 | 1920×540 | / | 722.2×220.23 | 698.4×196.425 | LVDS | 700 |
| 29 | 1920×540 | / | 720.8×226.25 | 705.6×198.45 | LVDS | 700 |
| 29.4 | 1920×720 | / | 698.4×261.9 | 722.2×285.7 | LVDS | 700 |
| 35 | 3840×200 | / | 891.6×60.4 | 877.824×45.72 | V-by-One 8 lane | 500 |
| 36.6 | 1920x290 | / | 960× 174.35 | 919.3× 138.85 | LVDS | 700 |
| 37 | 1920×540 | / | 914.9×280.9 | 899.712×253.044 | LVDS | 700 |
| 37.6 | 1920×540 | / | 972.4 ×299.8 | 919.296× 258.552 | LVDS | 1000 |
| 42 | 1920×480 | / | 1067.48× 287.72 | 1039.68× 259.92 | LVDS | 2500 |
| 43 | 3840×720 | / | 1076.3×204.5 | 1073.66×201.312 | V-by-One 8 lane | 1000 |
| 47 | 3840×160 | / | 1209×62.9 | 1196.16×49.84 | V-by-One 8 lane | 500 |
| 48 | 3840×720 | / | 1217.85×248.18 | 1194.05×223.884 | V-by-One 8 lane | 1000 |
| 49 | 5120×1440 | / | 1209.9×360.45 | 1198.08×336.96 | eDP | 350 |
| 49.5 | 1920×540 | / | 1232.4×363 | 1209.6×340.2 | LVDS | 1500 |
