19.1 Inch 1920x360 Bar Display Overview
DV190FBM-NB0 supports display 1920(RGB)×360 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×89.37(H) mm, outline size of 491.5(W)×109.4(H)×13.3(D) mm, with surface treament of Antiglare (Haze 25%), net weight of 780g (Typ.). As a ADS, Normally Black, Transmissive LCM product, DV190FBM-NB0 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 94% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. DV190FBM-NB0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

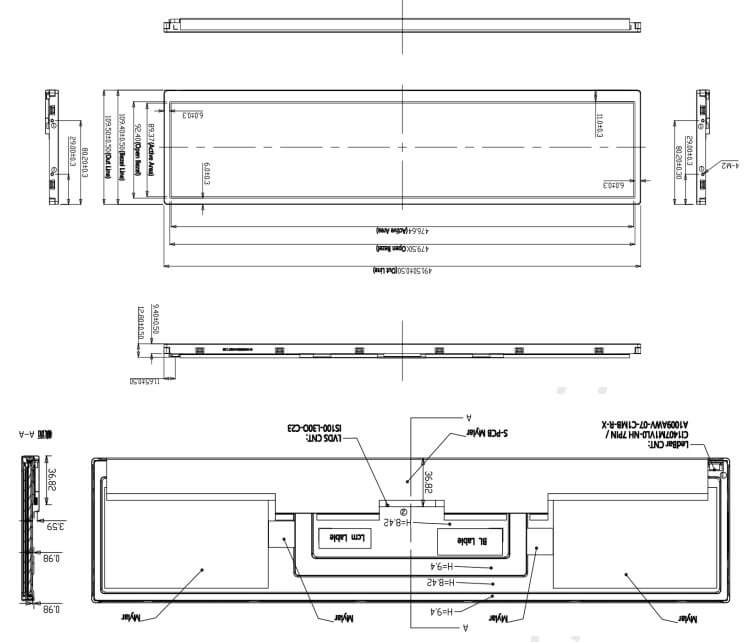

19.1 Inch 1920x360 Bar Display Drawing
More Bar Displays For Reference
| Inch | Resolution | LCM Driver chip |
LCM Dimensions | Display area | LCD interface | Reference brightness |
| 0.96 | 80x160 | ST7735S | 13.5x27.95x1.5 | 10.80x21.70 | SPI | 500 |
| 80x160 | ST7735S | 13.5x27.95x2.15 | 10.80x21.70 | SPI | 1800 | |
| 1.14 | 135x240 | ST7789V | 17.56x31.07x1.6 | 14.86x24.91 | SPI4 | 500 |
| 1.9 | 170x320 | ST7789V | 25x49.32x1.53 | 22.7x42.72 | SPI4 | 500 |
| 170x320 | ST7789V | 25x49.32x1.53 | 22.7x42.72 | MCU8Bit/SPI Line | 1000 | |
| 2.86 | 376x960 | ST7701S | 31.2x76.6x2.05 | 27.11x68.28 | MIPI | 600 |
| 376x960 | ST7701S | 31.2x76.6x2.05 | 27.11x68.28 | RGB 24 BIT | 400 | |
| 2.99 | 268x800 | ST7701S | 26.12x78.75x1.65 | 24.12x72 | RGB 24 BIT | 400 |
| 3.5 | 340x800 | ST7701S | 37.27x89x1.6 | 33.97x81 | RGB | 400 |
| 3.71 | 240x960 | ST7701S | 25.3x98.89x1.61 | 22.86x91.44 | RGB 24 BIT | 400 |
| 3.9 | 480x128 | / | / | / | TTL | / |
| 3.99 | 480x960 | ST7701S | 42.9x102.08x2.19 | 39.18x94.03 | SPI3+RGB 18 BIT | 800 |
| 4.58 | 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 450 |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 1000 | |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | RGB 24 BIT | 400 | |
| 320x960 | ST7701S | 41.57x118.8x2.5 | 36.77x110.3 | MIPI 2 LANE | 400 | |
| 5.8 | 800x320 | / | / | / | TTL | / |
| 6.2 | 360x960 | ST7701S | 58.1x154.9x2.3 | 55.3x147.46 | MIPI 2 LANE | 400 |
| 360x960 | ST7701S | 58.1x154.9x2.3 | 55.3x147.46 | RGB 24 BIT | 700 | |
| 6.5 | 1024x400 | / | / | / | TTL | / |
| 6.86 | 480x1280 | NV3051F1 | 66.6x181x4.5 | 60.22x160.58 | LVDS 8 BIT | 600 |
| 480x1280 | ICNL9707 | 72.42x173.79x6.5 | 60.22x160.58 | MIPI 4 LANE | 1000 | |
| 480x1280 | NV3052C | 66.6x181x4.5 | 60.22x160.58 | RGB 24 BIT | 600 | |
| 6.9 | 280x1424 | OTA7290B | 38.2x181.47x3.45 | 33.6x170.88 | MIPI 4 LANE | 500 |
| 280x1424 | OTA7290B | 38.2x181.47x3.45 | 33.6x170.88 | MIPI 4 LANE | 500 | |
| 280x1424 | NV3052C | 38.2x181.47x3.45 | 33.6x170.88 | RGB | 500 | |
| 7 | 280x1424 | OTA7290N | 38.2x181.47x3.4 | 33.60x170.88 | MIPI | 650 |
| 280x1424 | HDMI | 38.20x181.47x9.58 | 33.60x170.88 | HDMI | 700 | |
| 7.84 | 480x1280 | NV3051FL | 67.8x205.78x4.6 | 59.4x198.08 | MIPI 4 LANE | 900 |
| 480x1280 | NV3051F1 | 67.8x205.78x4.6 | 59.4x198.08 | LVDS 8 BIT | 900 | |
| 480x1280 | NV3051F1 | 67.8x205.78x4.6 | 59.4x198.08 | MIPI 4 LANE | 1200 | |
| 8 | 1600x480 | / | 249.2x87x6.86 | 194.4x58.32 | LVDS | 440 |
| 8.8 | 480x1920 | OTA7290B | 64.3x231.3x4.8 | 54.72x218.88 | MIPI 4 LANE | 500 |
| 1280x480 | HX82102A | 229.5×97.20×3.5 | 209.28x78.48 | LVDS 6/8 BIT | 500 | |
| 9.35 | 320x1280 | ICNL9707 | 64.48x246.15x4.5 | 58.08x232.7 | MIPI 4 LANE | 1000 |
| 9.9 | 720x1600 | ST7703I | 115.36x251.06x4.70 | 106.92x237.60 | MIPI 4 LANE | 1000 |
| 10.1 | 440x1920 | / | 64.98x266.44x4.6 | 57.95x252.86 | MIPI | 750 |
| 10.25 | 1920x480 | / | 258.90x111.1x7.55 | 243.648x91.368 | LVDS 8 BIT | 1000 |
| 10.4 | 1024x100 | HX8282 | 288.92x41.5x7.12 | 264.192x25.8 | RGB | 450 |
| 11.3 | 440x1920 | ICNL9707 | 64.98x266.39 | 57.9x252.69x4.6 | MIPI 4 LANE | 600 |
| 12.3 | 1920x720 | / | 305.92×123.62 | 292.32×109.62 | LVDS | 1400 |
| 12.6 | 1920×515 | / | 315.61×94.02 | 309.312×82.9665 | eDP | 400 |
| 12.7 | 2880×864 | / | 313.54×101.33 | 308.448×92.534 | eDP | 500 |
| 14.1 | 3840×1100 | / | 350.52× 118.65 | 344.218× 98.604 | eDP | 300 |
| 14.5 | 2560×720 | / | 362.42× 112.41 | 354.816× 99.792 | / | 900 |
| 2560x720 | / | 363.5x133.5x8 | 354.816x99.792 | LVDS | 650 | |
| 19.1 | 1920×360 | / | 491.5×109.4 | 476.64×89.37 | LVDS | 300 |
| 20.3 | 3840×720 | / | 555.01×126.98 | 506.88×95.04 | LVDS | 750 |
| 21 | 1920×132 | / | 542.4× 54.7 | 529.416× 36.3974 | LVDS | 300 |
| 1920x184 | / | 592x75x12.3 | 527.04x50.6 | LVDS | 500 | |
| 23.1 | 1920×158 | / | 597.2×61.8 | 585.216×48.1584 | LVDS | 700 |
| 24 | 1920×360 | / | 612.7× 132.1 | 597.888× 112.104 | LVDS | 300 |
| 28 | 1920×360 | / | 732×165×17.3 | 699.84×131.22 | LVDS | 700 |
| 1920x360 | / | 729.3x167.3x19.2 | 698.4x130.95 | LVDS | 700 | |
| 28.6 | 1920×540 | / | 722.2×220.23 | 698.4×196.425 | LVDS | 700 |
| 29 | 1920×540 | / | 720.8×226.25 | 705.6×198.45 | LVDS | 700 |
| 29.4 | 1920×720 | / | 698.4×261.9 | 722.2×285.7 | LVDS | 700 |
| 35 | 3840×200 | / | 891.6×60.4 | 877.824×45.72 | V-by-One 8 lane | 500 |
| 36.6 | 1920x290 | / | 960× 174.35 | 919.3× 138.85 | LVDS | 700 |
| 37 | 1920×540 | / | 914.9×280.9 | 899.712×253.044 | LVDS | 700 |
| 37.6 | 1920×540 | / | 972.4 ×299.8 | 919.296× 258.552 | LVDS | 1000 |
| 42 | 1920×480 | / | 1067.48× 287.72 | 1039.68× 259.92 | LVDS | 2500 |
| 43 | 3840×720 | / | 1076.3×204.5 | 1073.66×201.312 | V-by-One 8 lane | 1000 |
| 47 | 3840×160 | / | 1209×62.9 | 1196.16×49.84 | V-by-One 8 lane | 500 |
| 48 | 3840×720 | / | 1217.85×248.18 | 1194.05×223.884 | V-by-One 8 lane | 1000 |
| 49 | 5120×1440 | / | 1209.9×360.45 | 1198.08×336.96 | eDP | 350 |
| 49.5 | 1920×540 | / | 1232.4×363 | 1209.6×340.2 | LVDS | 1500 |
