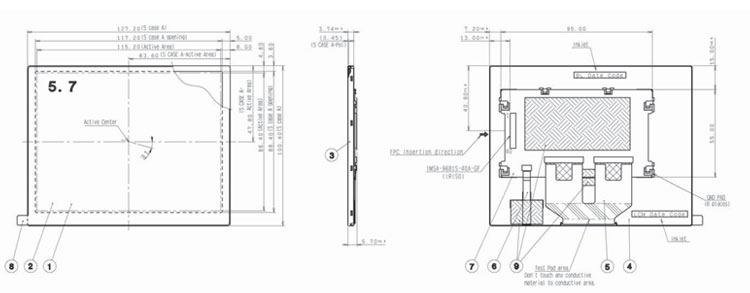

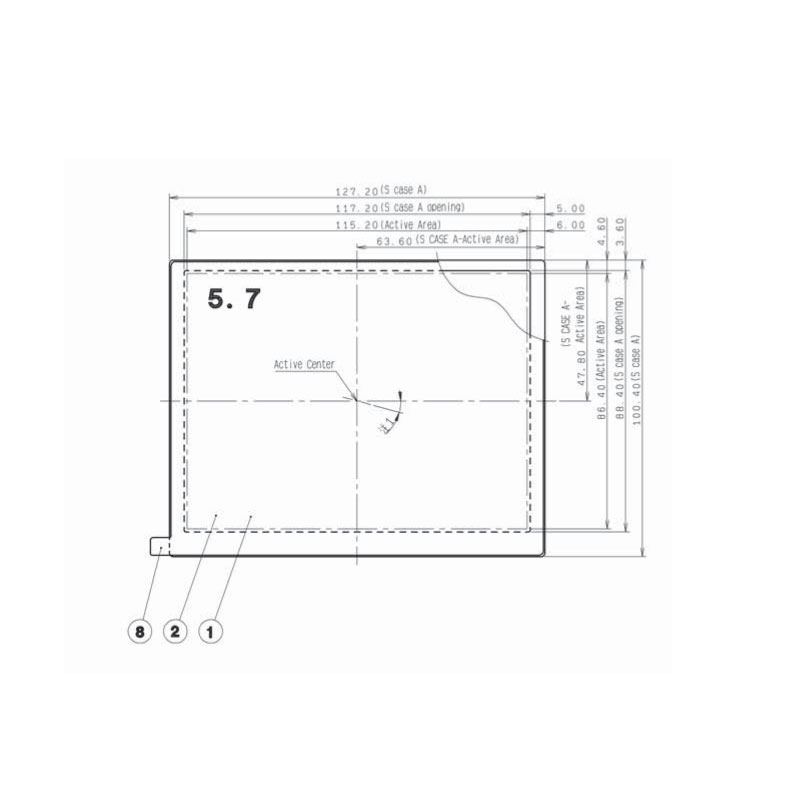

COM57T5N07RSC is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM57T5N07RSC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 127.2(W)×100.4(H)×6(D) mm, viewing area size of 117.2(W)×86.4(H) mm, net weight of TBD. As a IPS-FFS, Normally Black, Transmissive LCM product, COM57T5N07RSC can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM57T5N07RSC utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
