5.1"-7" LCD Display (5.7")

COM57T5M61ZRC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

Part No.:COM57T5M61ZRC
Size:5.7″ inch
Resolution:640x480
Panel Interface:Parallel RGB (1 ch,6-bit)
Display mode:Transmissive

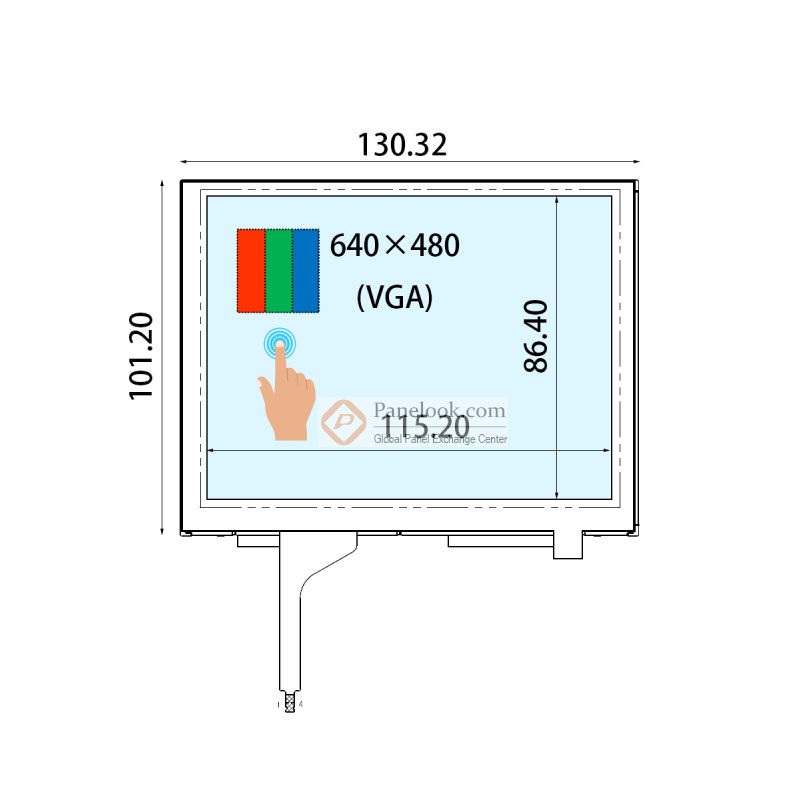

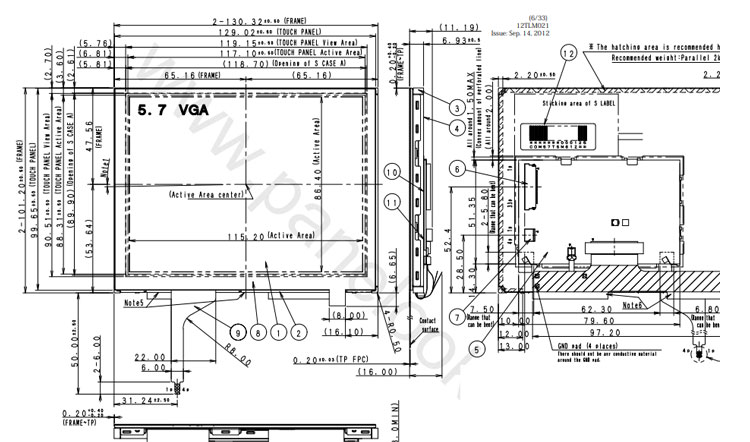

Outline Dimension:130.32x101.2mm
Active Area:115.2x86.4mm
Viewing Angle L/R/U/D:80/80/55/80
Brightness（cd/m2）:350cd/m²
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

COM57T5M61ZRC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display With 4-wire Resistive Touch Overview

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
