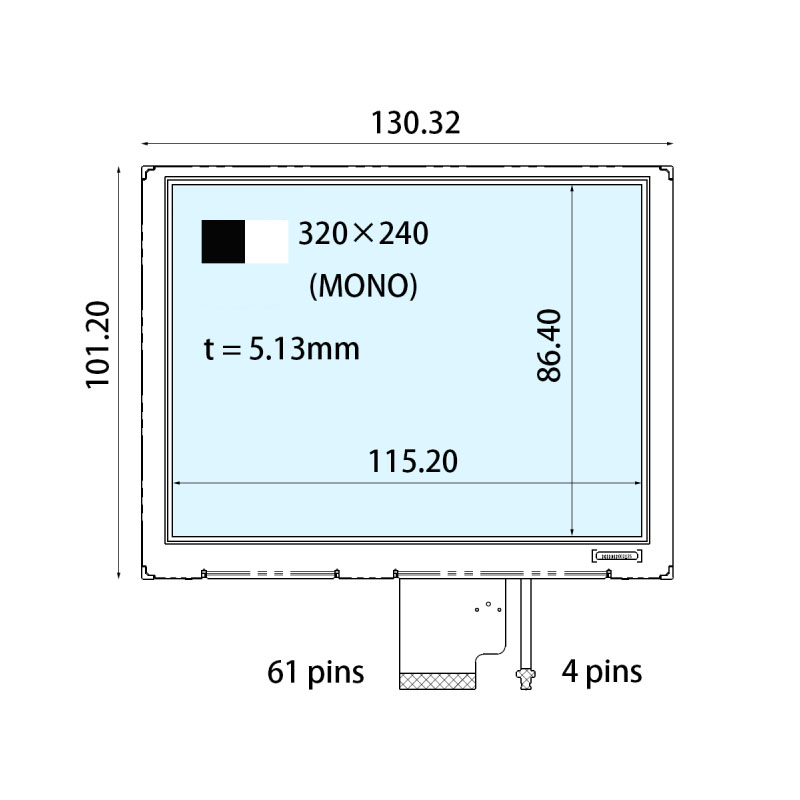

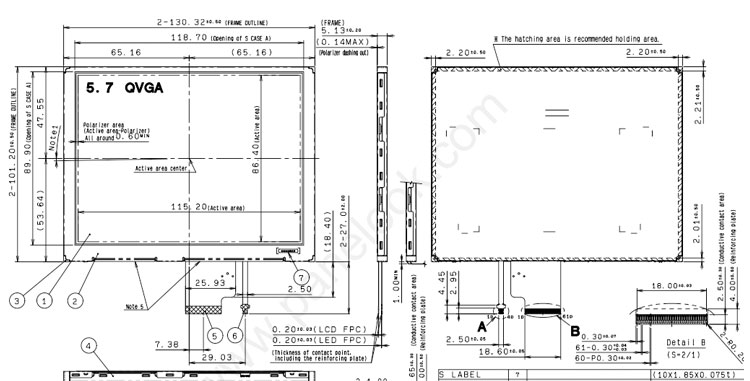

COM57T5M14GLC is a 5.7 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM57T5M14GLC supports display 320×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×5.33(D) mm, viewing area size of 118.7(W)×89.9(H) mm, with surface treament of Hard coating (3H), net weight of 103g (Typ.). As a TN, Normally White, Transmissive LCM product, COM57T5M14GLC can provides 300 cd/m² display brightness 100:1 transimissive contrast ratio, 40/40/15/70 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product adopted 2S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM57T5M14GLC utilizes Parallel Data (1ch, 6-bit) as it's signal inputting systerm, which connected by 61 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
