COM50H5N25ULC 5 Inch Transflective Display 800x480 LVDS Wide Temperature Sunlight Readable LCD Display For Handheld PDA

5 Inch Transflective LCD Display Overview

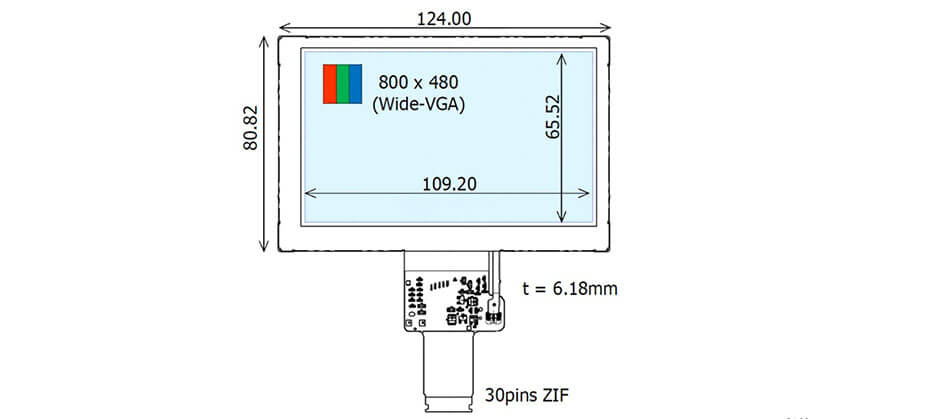

COM50H5N25ULC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 109.2(W)×65.52(H) mm, outline size of 124(W)×80.82(H)×6.53(D) mm, viewing area size of 110.6(W)×66.92(H) mm, with surface treament of Hard coating (2H), net weight of 88.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM50H5N25ULC can provides 1200 cd/m² display brightness 700:1 transimissive contrast ratio, 2.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. COM50H5N25ULC utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 5 Inch Transflective LCD Display For Reference
ET050TR01-TV (480x800, CPU, 160nits, -20~70°C, 70.8x118.75mm)
COM50H5N15ULC (800x480, LVDS, 1200nits, -30~85°C, 124x80.82mm)
ET050TR01-K (800x480, TTL, 280nits, -20~70°C, 120.7x75.9mm)
COM50H5N25ULC (800x480, LVDS, 1200nits, -30~85°C, 124x80.82mm)
COM50H5N23UTC (800x480, LVDS, 500nits, CTP(Air))
COM50H5N17ULC (720x1280, MIPI, 400nits, -20~70°C, 67.84x120.22mm)
LS050K7SX01 (720x1280, MIPI, 400nits, -20~70°C, 67.2x120.77mm)
