COM48H4M70ULX Ortustech 4.8 Inch TFT LCD Display 720×1280 MIPI Interface LCD Panel

COM48H4M70ULX Overview

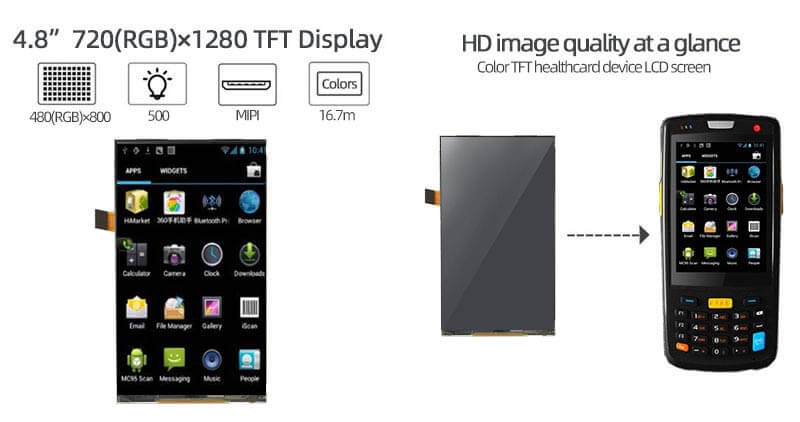

COM48H4M70ULX supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 309 PPI. As for mechanical detail, it features active area of 59.184(W)×105.216(H) mm, outline size of 63.68(W)×115.51(H)×2.47(D) mm, with surface treament of Hard coating (3H), net weight of 24.1g (Typ.). As a Buenaview, Normally Black, Transmissive LCM product, COM48H4M70ULX can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 22/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 5K hours, external backlight driver is additionally needed. COM48H4M70ULX utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 26 pins Connector with power supply voltage of 1.9/2.9V (Typ.)(IOVCC/VCC). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Handheld & PDA,Industrial.
