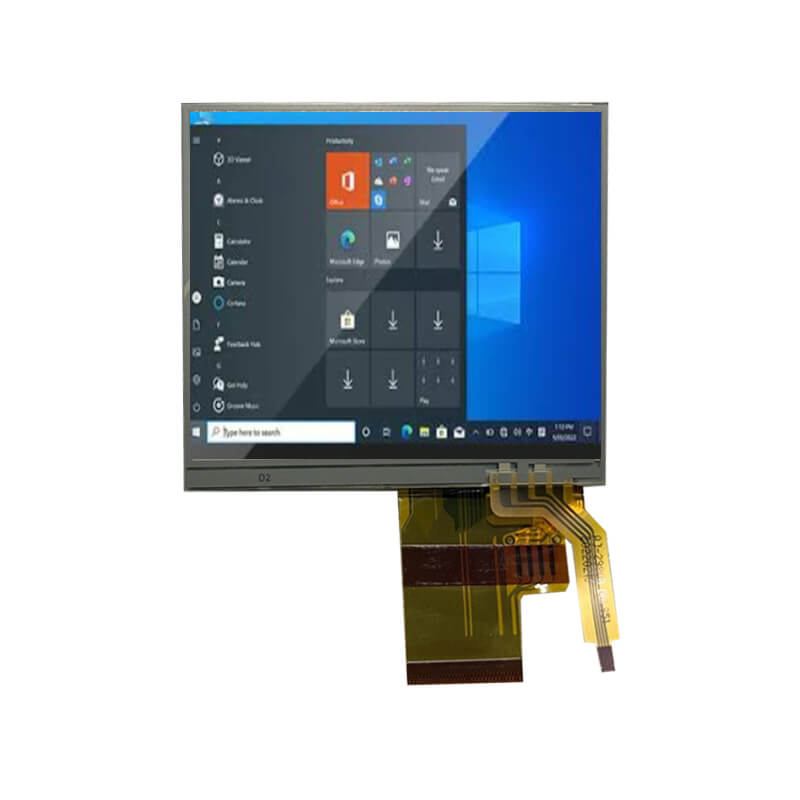

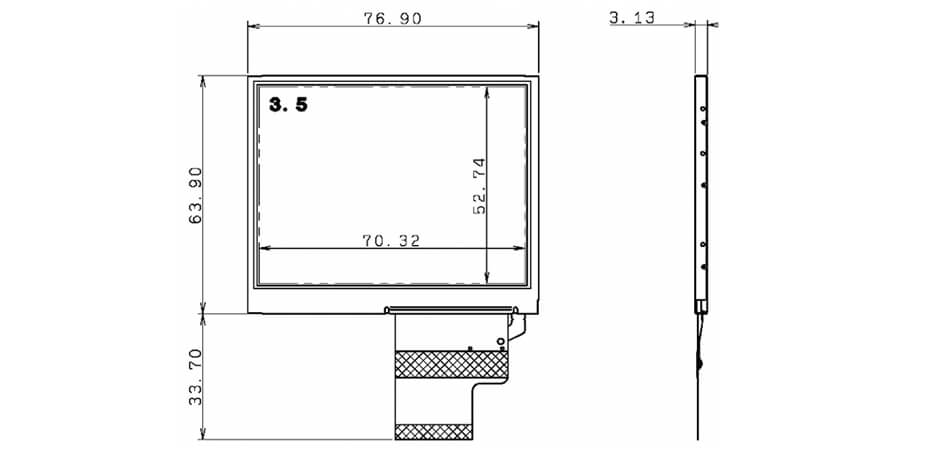

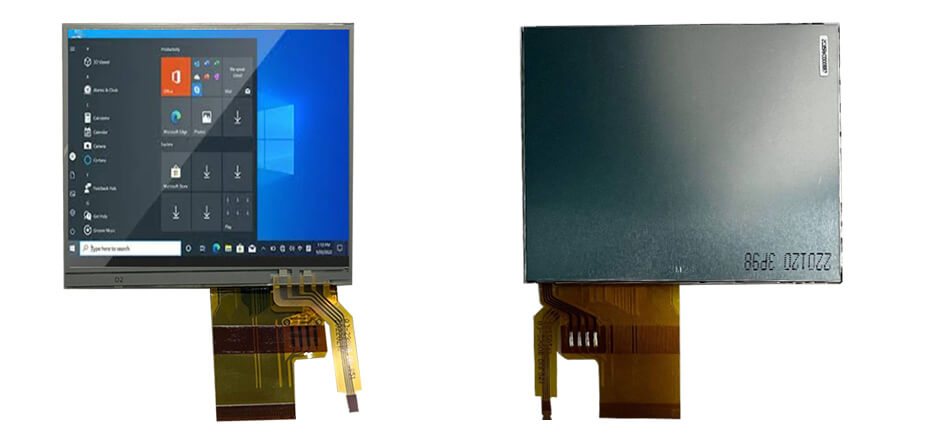

COM35T3831GTC is a 3.5 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch.COM35T3831GTC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×4.73(D) mm, viewing area size of 72.7(W)×55.96(H) mm, with surface treament of Hard coating (3H), net weight of 43.0g (Typ.). As a TN, Normally White, Transmissive LCM product, COM35T3831GTC can provides 320 cd/m² display brightness 200:1 transimissive contrast ratio, 35/40/15/70 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35T3831GTC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
