COM35H3R18UTC Ortustech 3.5 Inch TFT LCD Display 320×240 Transflective Sunlight Readable LCD Panel With 4-wire Resistive Touch

  • Part No.:COM35H3R18UTC
  • Size:3.5″ inch
  • Resolution:320x240
  • Panel Interface:TTL (1 ch,8-bit)
  • Display mode:VA,Transflective

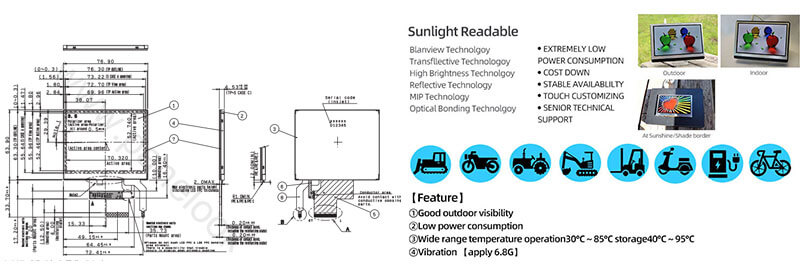

  • Outline Dimension:76.9(H)x63.9(V)mm
  • Active Area:70.32(H)x52.74(V)mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Min.)
  • Brightness(cd/m2):480(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:yes

COM35H3R18UTC Overview
COM35H3R18UTC is a 3.5 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch.COM35H3R18UTC supports display 320×240(RGB) (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×4.73(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 41.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3R18UTC can provides 480 cd/m² display brightness 800:1 transimissive contrast ratio, 4.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC).

Application
For Handheld & PDA,Industrial.
