COM35H3R16ULC Overview

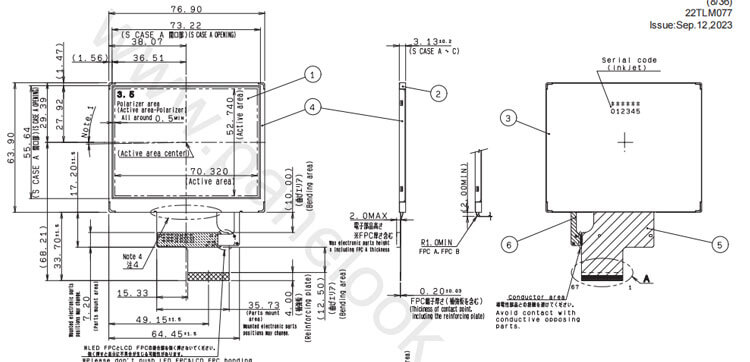

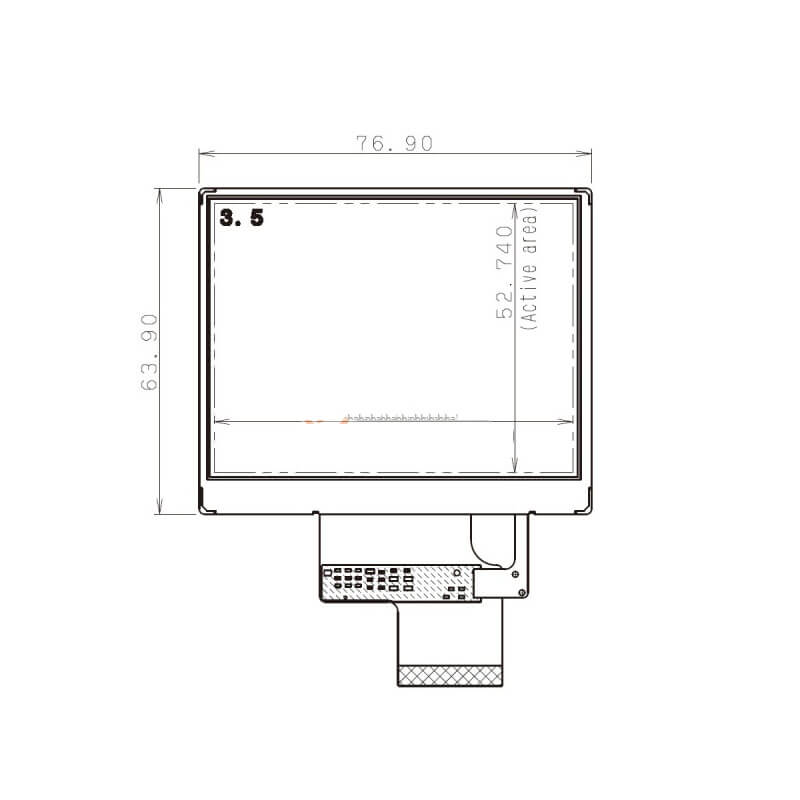

COM35H3R16ULC supports display 320×240(RGB) (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Horizontal Stripe.It features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×3.3(D) mm, viewing area size of 73.22(W)×55.64(H) mm, with surface treament of Hard coating (2H), net weight of 32.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3R16ULC can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 4.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC).
Application
For Handheld & PDA,Industrial.
