COM35H3P70ULC Ortustech 3.5 Inch TFT LCD Display 480×640 Transflective Sunlight Readable LCD Panel

  • Part No.:COM35H3P70ULC
  • Size:3.5″ inch
  • Resolution:480x640
  • Panel Interface:MIPI (2 data lanes)
  • Display mode:VA,Transflective

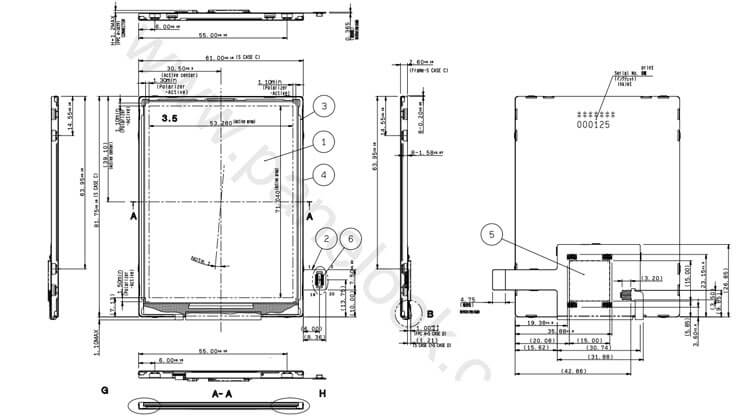

  • Outline Dimension:61(W)x81.75(H)mm
  • Active Area:53.28(W)x71.04(H)mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Min.)
  • Brightness(cd/m2):900cd/m²(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

COM35H3P70ULC Overview
COM35H3P70ULC is a 3.5 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch  screen. COM35H3P70ULC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 53.28(W)×71.04(H) mm, outline size of 61(W)×81.75(H)×3.96(D) mm, with surface treament of Hard coating (2H), net weight of 27.7g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3P70ULC can provides 900 cd/m² display brightness 900:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC).

Application
For Handheld & PDA,Industrial.
