COM35H3835XLC Ortustech 3.5 Inch TFT LCD Display 320×240 Transflective Sunlight Readable LCD Panel

  • Part No.:COM35H3835XLC
  • Size:3.5″ inch
  • Resolution:320x240
  • Panel Interface:Parallel RGB (1 ch,6/8-bit)
  • Display mode:TN,Transflective

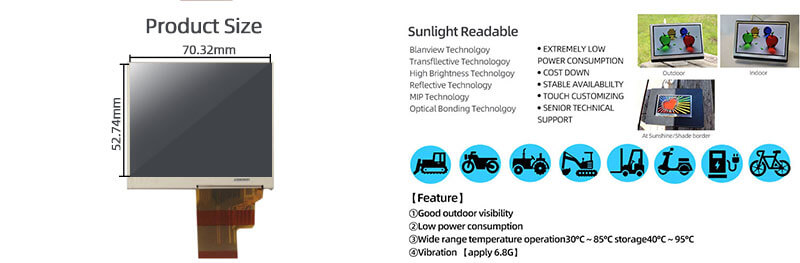

  • Outline Dimension:76.9x63.9mm
  • Active Area:70.32x52.74mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Min.)
  • Brightness(cd/m2):300cd/m²(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

COM35H3835XLC Overview
COM35H3835XLC is a 3.5 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM35H3835XLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×3.38(D) mm, viewing area size of 73.22(W)×55.64(H) mm, with surface treament of Hard coating (3H), net weight of 33.0g. As a TN, Normally White, Transflective LCM product, COM35H3835XLC can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 9:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35H3835XLC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Application
For Handheld & PDA,Industrial.
