COM24H2P94ULC Ortustech 2.4 Inch TFT LCD Display 240x320 Transflective LCD Panel

  • Part No.:COM24H2P94ULC
  • Size:2.4″ inch
  • Resolution:240x320
  • Panel Interface:Parallel RGB (1 ch,6-bit)
  • Display mode:Transflective

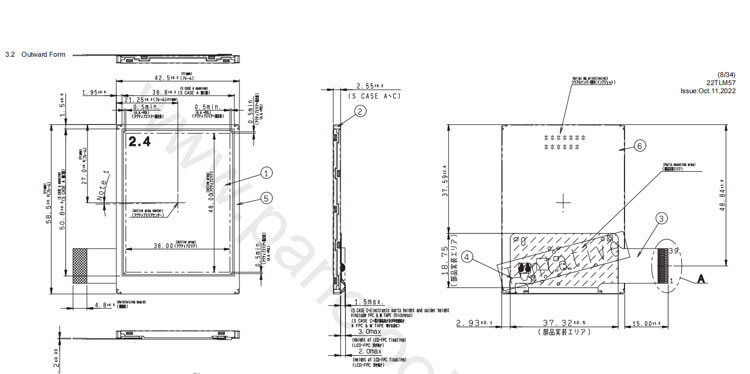

  • Outline Dimension:42.5(H)x58.5(V)mm
  • Active Area:36(H)x48(V)mm
  • Viewing Angle L/R/U/D:80/80/80/80 (Min.)
  • Brightness(cd/m2):300(Typ.)
  • Operation / Storage Temp:-20~70°C / -30~80°C
  • Touch:no

Overview
COM24H2P94ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 36(W)×48(H) mm, outline size of 42.5(W)×58.5(H)×5.55(D) mm, with surface treament of Hard coating (3H), net weight of 13.9g (Typ.). As a VA, Normally Black, Transflective LCM product, COM24H2P94ULC can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

Application
For andheld & PDA,Industrial.
