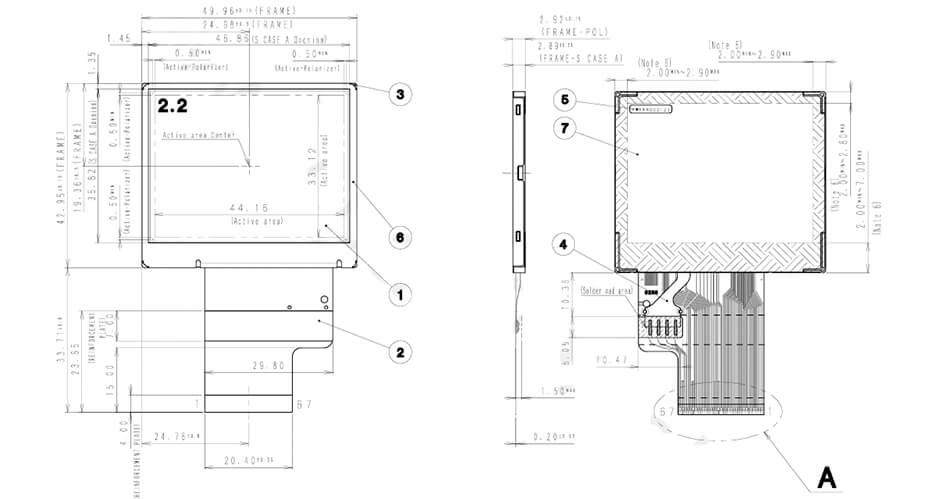

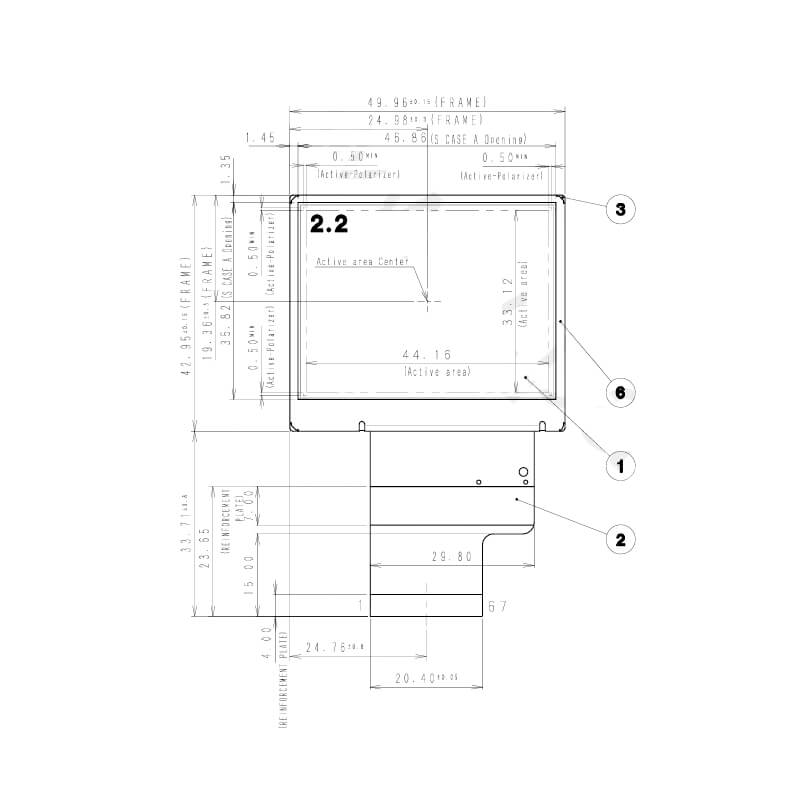

COM22H2N81DLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 44.16(W)×33.12(H) mm, outline size of 49.96(W)×42.95(H)×3.07(D) mm, viewing area size of 46.86(W)×35.82(H) mm, with surface treament of Hard coating (3H), net weight of 12.6g (Typ.). As a TN, Normally White, Transflective LCM product, COM22H2N81DLC can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 7.5:1 (Typ.) reflective contrast ratio, 40/40/15/45 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM22H2N81DLC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
