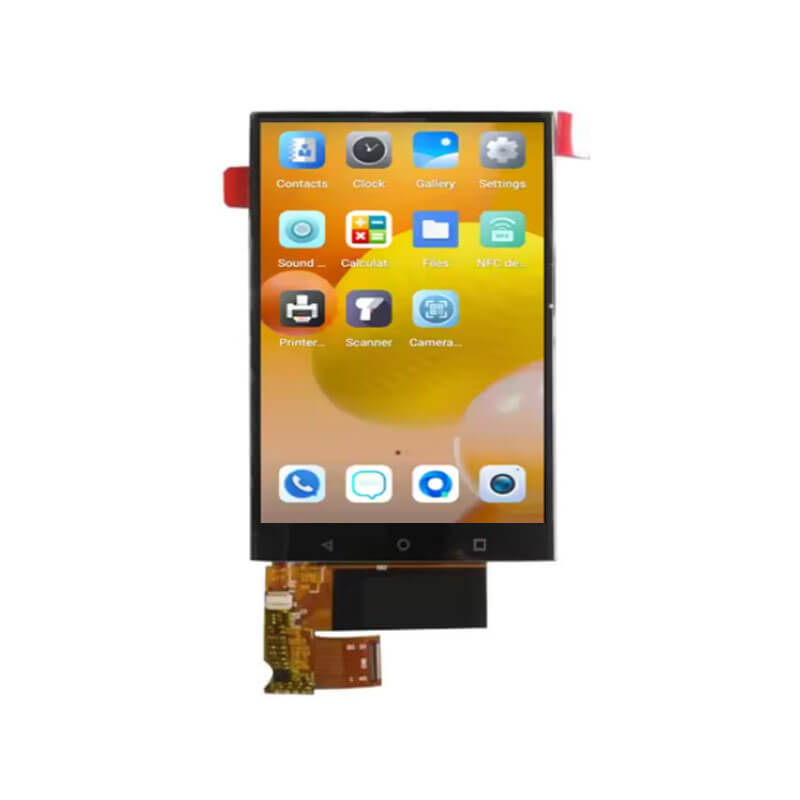

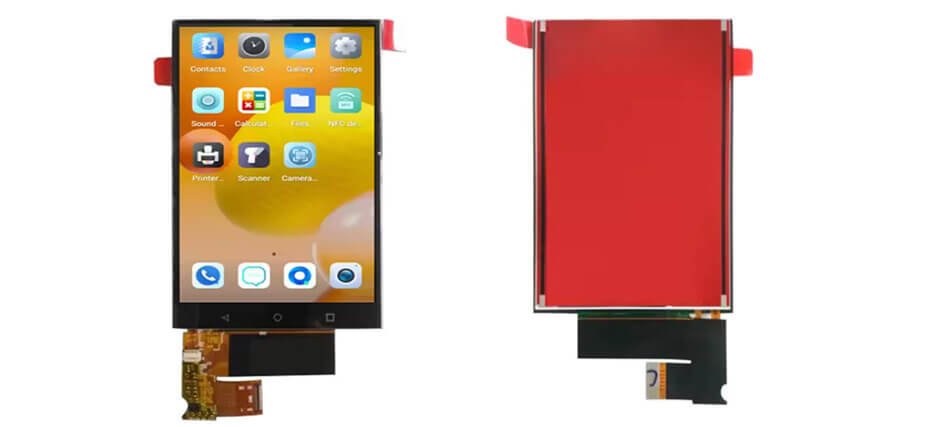

BV045FHM-L00-1S00 supports display 1080(RGB)×1620 with aspect ratio of 2:3 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 434 PPI. As for mechanical detail, it features active area of 63.115(W)×94.673(H) mm, outline size of 68.14(W)×104.97(H)×3(D) mm, with surface treament of Anti Fingerprint, net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, BV045FHM-L00-1S00 can provides 580 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. BV045FHM-L00-1S00 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.
Ultra-Thin Design
-Touch sensor integrated into the LCD, making the module thinner and lighter.
High Optical Clarity
-Fewer layers provide better brightness, sharper images, and richer colors.
Fast Touch Response
-More sensitive and quicker touch interaction with low latency.
Narrow Bezel
-Supports slim-border designs and larger viewing areas.
Low Power Consumption
-Improved light efficiency helps reduce energy use.
High Reliability
-Fewer components improve durability and long-term stability.
Sunlight Readability
-Better visibility in outdoor and high-brightness environments.
Easy Integration
-Simplified assembly with touch and display combined in one module.
Wide Application Range
-Ideal for smartphones, industrial control, medical devices, automotive, and smart terminals.
Consumer Electronics
-Smartphones, tablets, and handheld devices.
Smart Home Devices
-Control panels, smart thermostats, and security systems.
Industrial Equipment
-HMI terminals, automation controls, and portable instruments.
Medical Devices
-Patient monitors, diagnostic equipment, and healthcare tablets.
Automotive Displays
-Infotainment systems, digital dashboards, and EV charging stations.
Retail & POS Systems
-Self-service kiosks, payment terminals, and interactive displays.
Smart Wearables
-Smartwatches, fitness trackers, and wearable electronics.
Many customers face challenges such as bulky display structures, poor outdoor visibility, touch response issues, complex integration processes, and limited customization options. In demanding applications, reliability, durability, and low power consumption are also key concerns.
Youritech's In-Cell Touch Display solutions address these challenges by integrating touch functionality directly into the display, creating thinner and lighter modules with enhanced optical clarity. We offer high-brightness displays, advanced touch performance, optical bonding, custom cover glass design, and controller board integration to improve user experience and simplify product development. With strong R&D, customization, and manufacturing capabilities, we help customers achieve higher reliability, faster time-to-market, and cost-effective production.
Youritech provides comprehensive In-Cell Touch Display development and manufacturing services, from concept design to mass production. Our capabilities include display module customization, touch integration, cover glass design, optical bonding, and embedded controller board development. We support a wide range of sizes, interfaces, brightness levels, and mechanical structures to meet specific application requirements.
With experienced engineering teams, advanced production facilities, and strict quality control systems, Youritech delivers high-performance, reliable display solutions for consumer electronics, industrial equipment, medical devices, automotive systems, smart home products, and other demanding applications. Our end-to-end manufacturing capabilities help customers accelerate product development, reduce integration complexity, and ensure consistent product quality.
