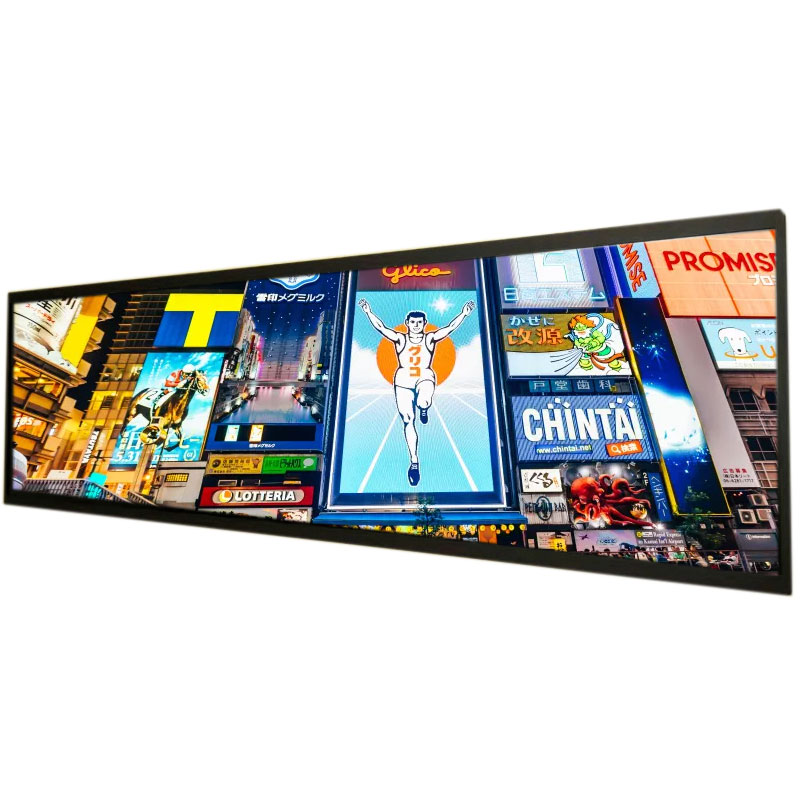

Bar Display 29 inch IPS LCD 1920x540 Outdoor High Brightness Screen

  • Part No.:DV290FBM-N10
  • Size:29″ inch
  • Resolution:1920x540
  • Panel Interface:LVDS (2 ch,8-bit)
  • Display mode:HADS,Transmissive
  • Outline Dimension:720.8x226.25mm
  • Active Area:705.6x198.45mm
  • Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
  • Brightness(cd/m2):700cd/m²(Typ.)
  • Operation / Storage Temp:0~50°C / -20~60°C
  • Touch:no

29 inch 1920x540 IPS LCD


29 inch Type LCM , a-Si TFT-LCD
Pixel Format 1920(RGB)×540 Configuration RGB Vertical Stripe
Active Area 705.6×198.45 mm Outline Dim. 720.8×226.25 mm
Bezel Area 709.6×202.45 mm Treatment Antiglare
Luminance 700 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) (Transmissive)
View Direction Symmetry Surface Antiglare (Haze 25%), Hard coating (3H)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode HADS, Normally Black, Transmissive
Interface Type LVDS (2 ch, 8-bit)
Environment Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C



Company Profile


No specification brief is filled in!

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
