1.7 Inch 348x442 AMOLED Display Overview

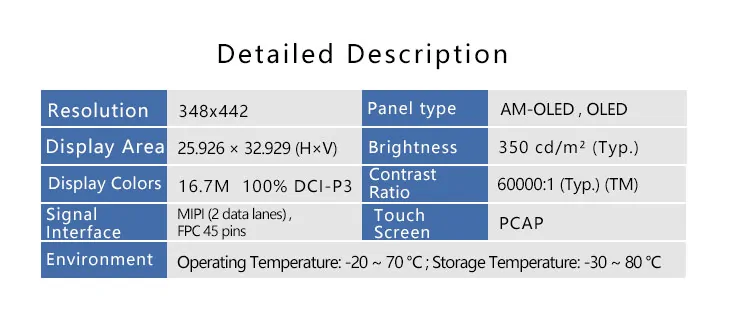

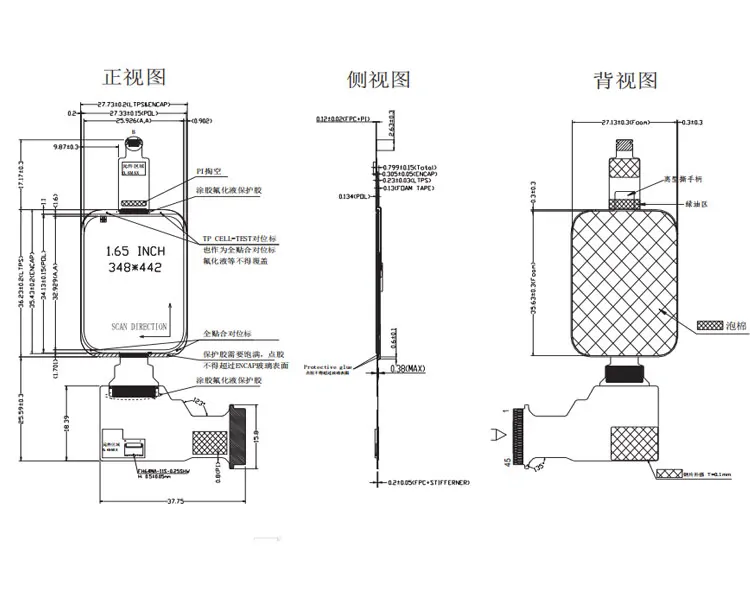

AM017RT90229V0 supports display 348(RGB)×442 with aspect ratio of 4:5 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 340 PPI. It features active area of 25.926(W)×32.929(H) mm, outline size of 27.73(W)×36.23(H) mm, with surface treament of Hard coating. AM017RT90229V0 can provides 350 cd/m² display brightness 60000:1 transimissive contrast ratio, 88/88/88/88 (Min.)(CR≥20) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . AM017RT90229V0 utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 1.8/3.3/4.6/-2.2V (Typ.)(IOVCC/VCC/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 60Hz.
1.7 Inch 348x442 AMOLED Display Application
For industrial & smart home appliances & medical instruments & wearable.
AMOLED Display List For Reference
| 0.95" | 180x120 | SPI |
| 120x240 | MIPI | |
| 1.1" | 126x294 | MIPI |
| 126x294 | MIPI | |
| 1.2" | 390x390 | MIPI |
| 390x390 | MIPI | |
| 390x390 | MIPI | |
| 1.28” | 416x416 | MIPI |
| 416x416 | MIPI | |
| 1.3" | 360x360 | MIPI |
| 128x128 | SPI , 10 pins , FPC | |
| 360x360 | MIPI | |
| 1.34" | 320x300 | MIPI |
| 1.39" | 454x454 | MIPI |
| 454x454 | MIPI | |
| 1.4" | 400x400 | MIPI |
| 320x360 | MIPI | |
| 320x360 | MIPI | |
| 1.43" | 466x466 | MIPI/SPI |
| 1.47" | 194x368 | MIPI |
| 1.5" | 200x228 | Parallel Data |
| 1.6" | 320x360 | MIPI |
| 320x360 | MIPI | |
| 320x360 | MIPI | |
| 1.64" | 280x456 | MIPI |
| 1.65" | 348x442 | MIPI |
| 348x442 | MIPI | |
| 1.7" | 348x442 | MIPI |
| 1.78" | 368x448 | MIPI |
| 368x448 | MIPI | |
| 1.9" | 240x536 | MIPI 40pins |
| 2.6 | 240x400 | CPU |
| 3.2" | 360x640 | MIPI |
| 3.3" | 480x800 | CPU/RGB/SPI |
| 480x854 | TTL | |
| 3.7 | 480x800 | TTL |
| 3.8 | 1080x1200 | MIPI |
| 5 | 720x1280 | MIPI |
| 5.5 | 720x1280 | MIPI |
| 1080×1920 | MIPI | |
| 1080×1920 | MIPI | |
| 10.5" | 2560x1600 | MIPI |
| 11 | 1728x2368 | MIPI |
| 11.5" | 2560x1600 | MIPI |
| 13.3 | 1920×1080 | eDP |
| 1536×2048 | eDP | |
| 3840×2160 | eDP | |
| 1920×1080 | eDP | |
| 14 | 3840×2400 | eDP |
| 15.6 | 3840×2160 | eDP |
| 1920×1080 | eDP | |
| 16 | 3840×2400 | eDP |
| 27 | 2560×1440 | V-by-One |
| Touch Screens are Available and Optional | ||
1.7 Inch 348x442 AMOLED Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
1.7 Inch 348x442 AMOLED Display Touch screen,standard type and customization
1.7 Inch 348x442 AMOLED Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
1.7 Inch 348x442 AMOLED Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
